دیتاشیت FUO50-16N

FUO50-16N

مشخصات دیتاشیت

نام دیتاشیت FUO50-16N
حجم فایل 407.911 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت FUO50-16N

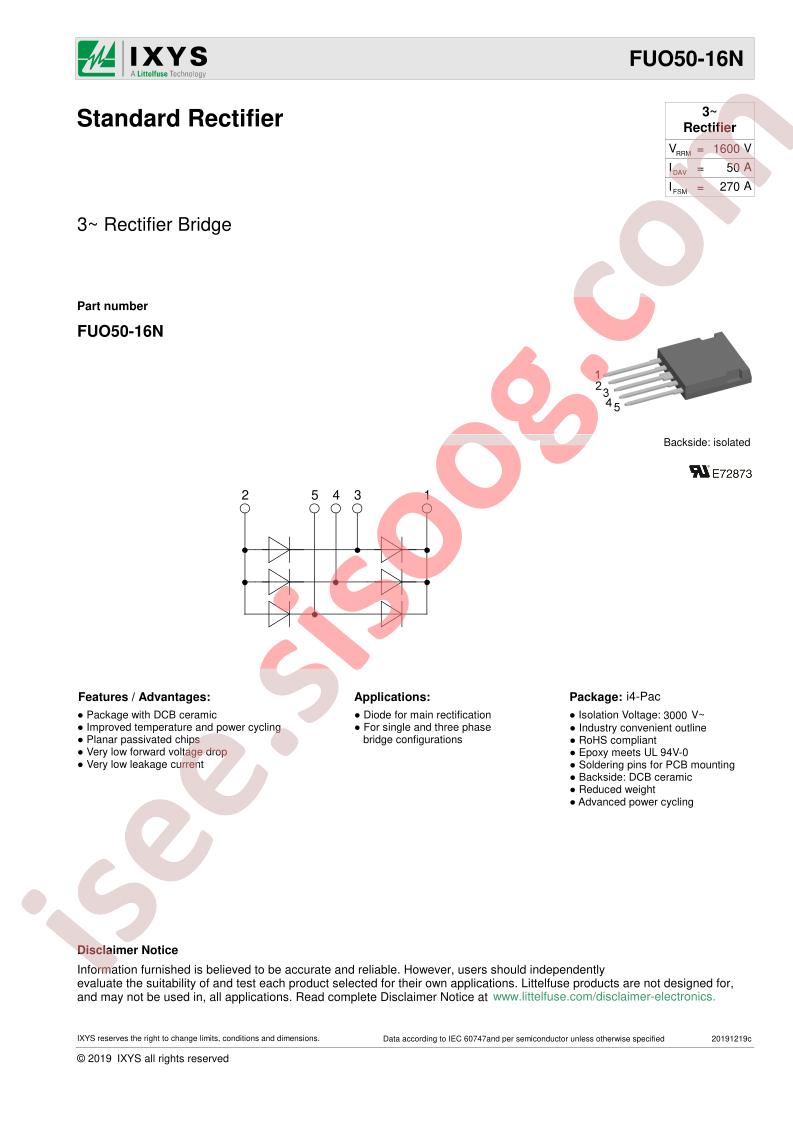

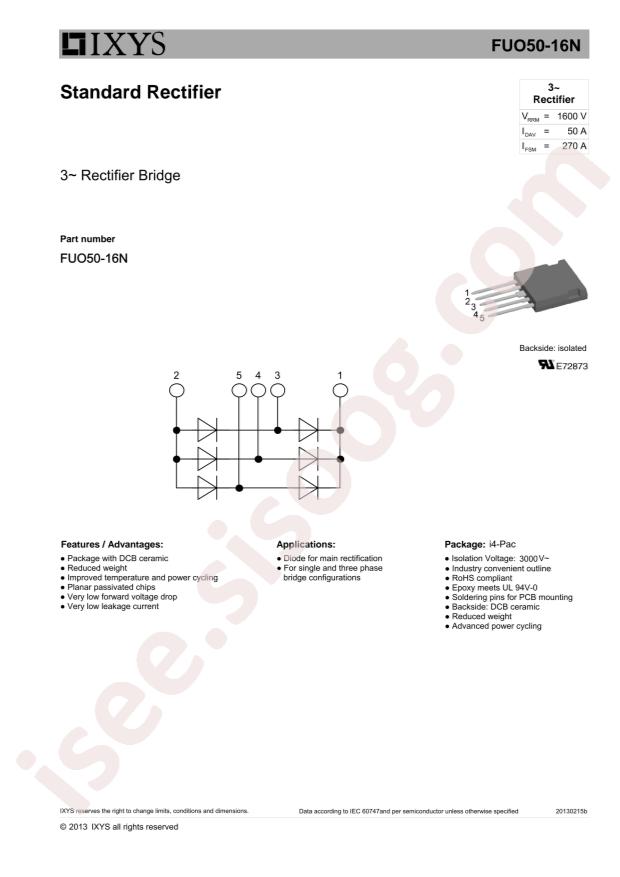

FUO50-16N Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Bridge Rectifiers
  • Datasheet: Littelfuse/IXYS FUO50-16N
  • Reverse Voltage (Vr): 1.6kV
  • Operating Temperature: -55°C~+175°C@(Tvj)
  • Forward Voltage (Vf@If): 1.5V@45A
  • Peak Forward Surge Current: 270A
  • Reverse Leakage Current (Ir): 20uA@1.6kV
  • Average Rectified Current (Io): 50A
  • Package: i4-Pac
  • Manufacturer: IXYS
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Three Phase
  • Technology: Standard
  • Voltage - Peak Reverse (Max): 1.6kV
  • Current - Average Rectified (Io): 50A
  • Voltage - Forward (Vf) (Max) @ If: 1.15V @ 15A
  • Current - Reverse Leakage @ Vr: 20µA @ 1600V
  • Mounting Type: Through Hole
  • Package / Case: i4-Pac™-5
  • Supplier Device Package: ISOPLUS i4-PAC™
  • detail: Bridge Rectifier Three Phase Standard 1.6kV Through Hole ISOPLUS i4-PAC™
