دیتاشیت ULN2004ADR

ULN2001A - 4A, ULQ2003A - 4A

مشخصات دیتاشیت

نام دیتاشیت ULN2001A - 4A, ULQ2003A - 4A
حجم فایل 1414.085 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت ULN2001A - 4A, ULQ2003A - 4A

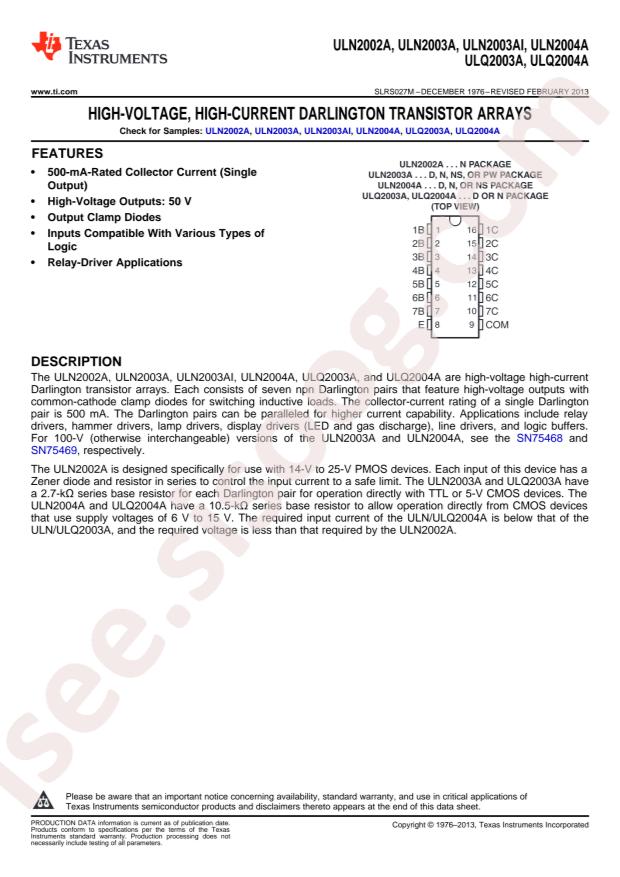

ULN2001A - 4A, ULQ2003A - 4A Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Darlington Transistor Arrays
  • Datasheet: Texas Instruments ULN2004ADR
  • Package: SOP-16
  • Manufacturer: Texas Instruments
  • Packaging: Cut Tape (CT)
  • Base Part Number: ULN2004
  • Vce Saturation (Max) @ Ib, Ic: 1.6V @ 500µA, 350mA
  • Current - Collector (Ic) (Max): 500mA
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Power - Max: -
  • Frequency - Transition: -
  • Transistor Type: 7 NPN Darlington
  • Supplier Device Package: 16-SOIC
  • Operating Temperature: -20°C ~ 70°C (TA)
  • Mounting Type: Surface Mount
  • Current - Collector Cutoff (Max): 50µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: -
  • Series: Automotive, AEC-Q100
  • Part Status: Active
  • Voltage - Collector Emitter Breakdown (Max): 50V
