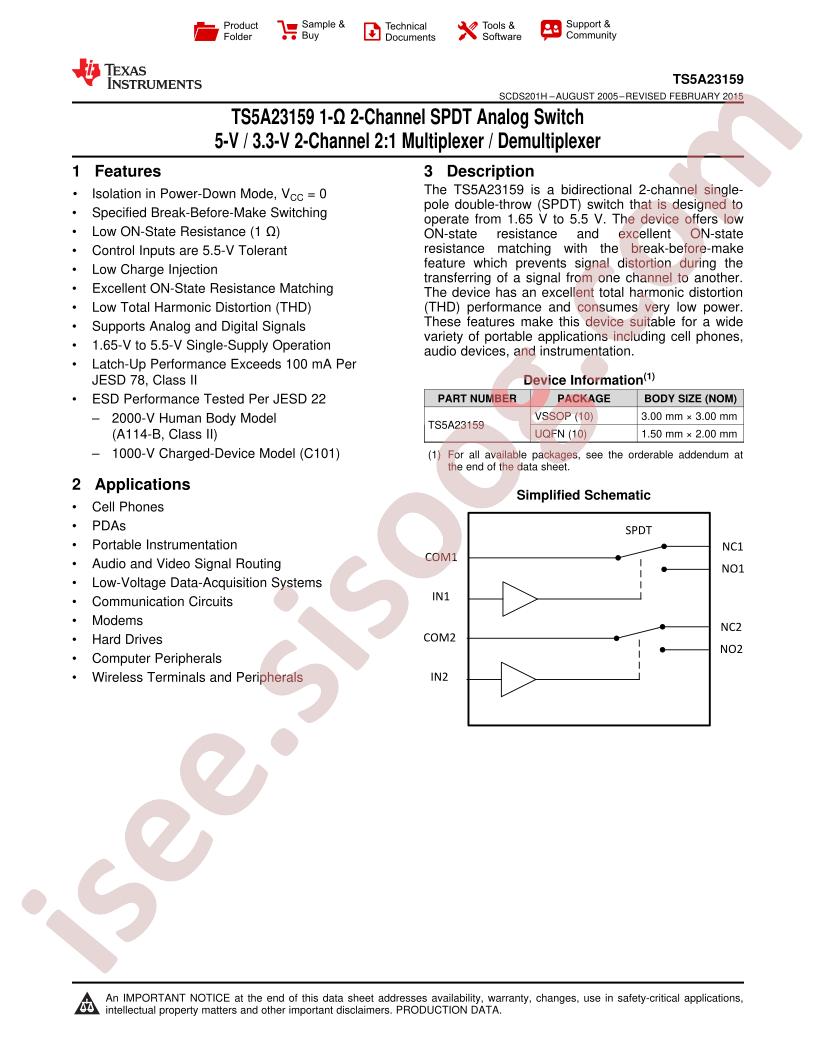

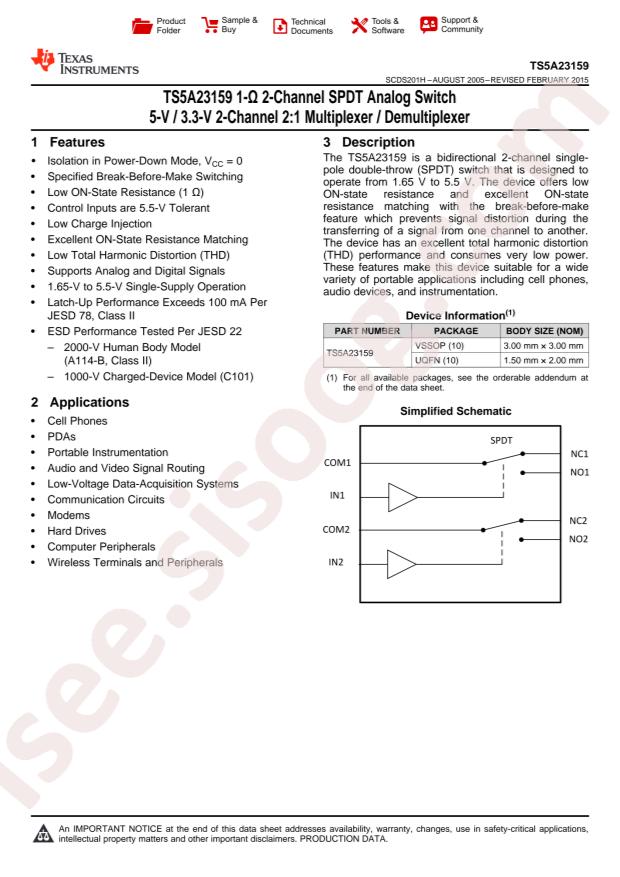

دیتاشیت TS5A23159RSER
مشخصات دیتاشیت
| نام دیتاشیت |
TS5A23159
|
| حجم فایل |
1508.808
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
36
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Texas Instruments TS5A23159RSER
-
Turn-on time:
13ns
-
Turn-off time:
8ns
-
Supply Voltage:
1.65V~5.5V
-
Switch Circuit:
SPDT(SPDT)
-
Number of Channels:
2
-
Operating Temperature:
-40°C~+85°C
-
On-State Resistance (Max):
0.9Ω
-
Package:
UQFN-10-EP(1.5x2)
-
Manufacturer:
Texas Instruments
-
Channel Capacitance (CS(off), CD(off)):
18pF
-
Channel-to-Channel Matching (ΔRon):
50mOhm
-
Packaging:
Cut Tape (CT)
-
Multiplexer/Demultiplexer Circuit:
2:1
-
-3db Bandwidth:
100MHz
-
Charge Injection:
-7pC
-
Current - Leakage (IS(off)) (Max):
20nA
-
Package / Case:
10-UFQFN
-
Voltage - Supply, Single (V+):
1.65V ~ 5.5V
-
Switch Time (Ton, Toff) (Max):
13ns, 8ns
-
Supplier Device Package:
10-UQFN (2.0x1.5)
-
Mounting Type:
Surface Mount
-
Base Part Number:
TS5A231
-
Voltage - Supply, Dual (V±):
-
-
Number of Circuits:
2
-
Crosstalk:
-64dB @ 1MHz
-
Part Status:
Active
-
Series:
-
-
detail:
2 Circuit IC Switch 2:1 900mOhm 10-UQFN (2.0x1.5)
