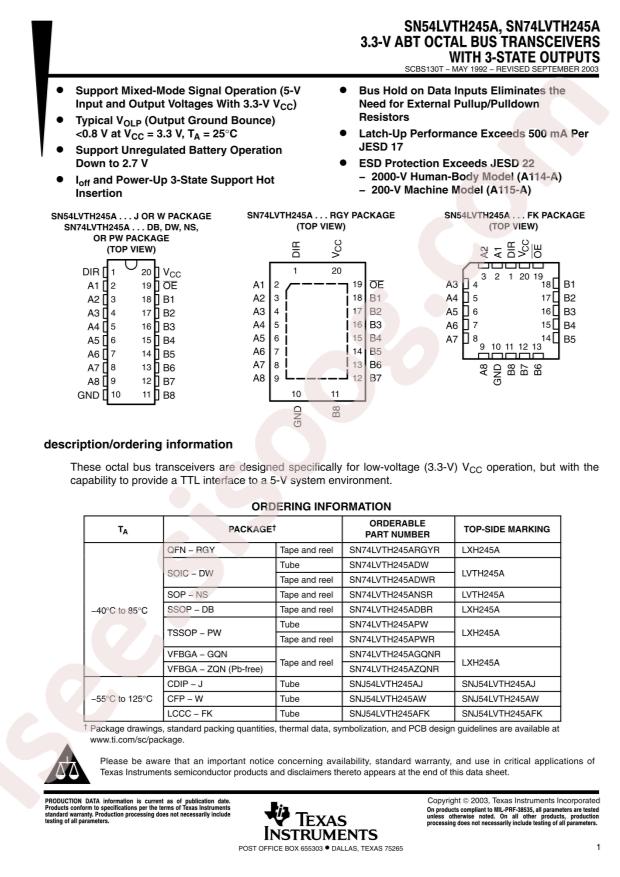

SN74LVTH245APWR دیتاشیت

SN74LVTH245APWR

مشخصات دیتاشیت

نام دیتاشیت SN74LVTH245APWR
حجم فایل 107.678 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت SN74LVTH245APWR

دانلود دیتاشیت

سایر مستندات

Logic Guide 20 pages

Digital Logic Data Book 794 pages

SN(54,74)LVTH245A Datasheet 28 pages

SLL Advanced Bus Interface Logic Products 27 pages

مشخصات فنی

  • RoHS: true
  • Category: Logic ICs/Buffer/Driver/Transceiver
  • Datasheet: Texas Instruments SN74LVTH245APWR
  • output type: Tri-State
  • Logic Family: 74LVTH
  • Sink Current: 64mA
  • Source Current: 32mA
  • Supply Voltage: 2.7V~3.6V
  • Number of Elements: 1
  • Operating Temperature: -40°C~+85°C
  • Number of Bits per Element: 8
  • Package: TSSOP-20
  • Manufacturer: Texas Instruments
  • Logic Type: Transceiver, Non-Inverting
  • Current - Output High, Low: 32mA, 64mA
  • Packaging: Cut Tape (CT)
  • Mounting Type: Surface Mount
  • Base Part Number: SN74LVT
  • Package / Case: 20-TSSOP (0.173", 4.40mm Width)
  • Part Status: Active
  • Series: 74LVTH
  • Input Type: -
  • Voltage - Supply: 2.7V ~ 3.6V
  • Supplier Device Package: 20-TSSOP
