- SN74LS244N

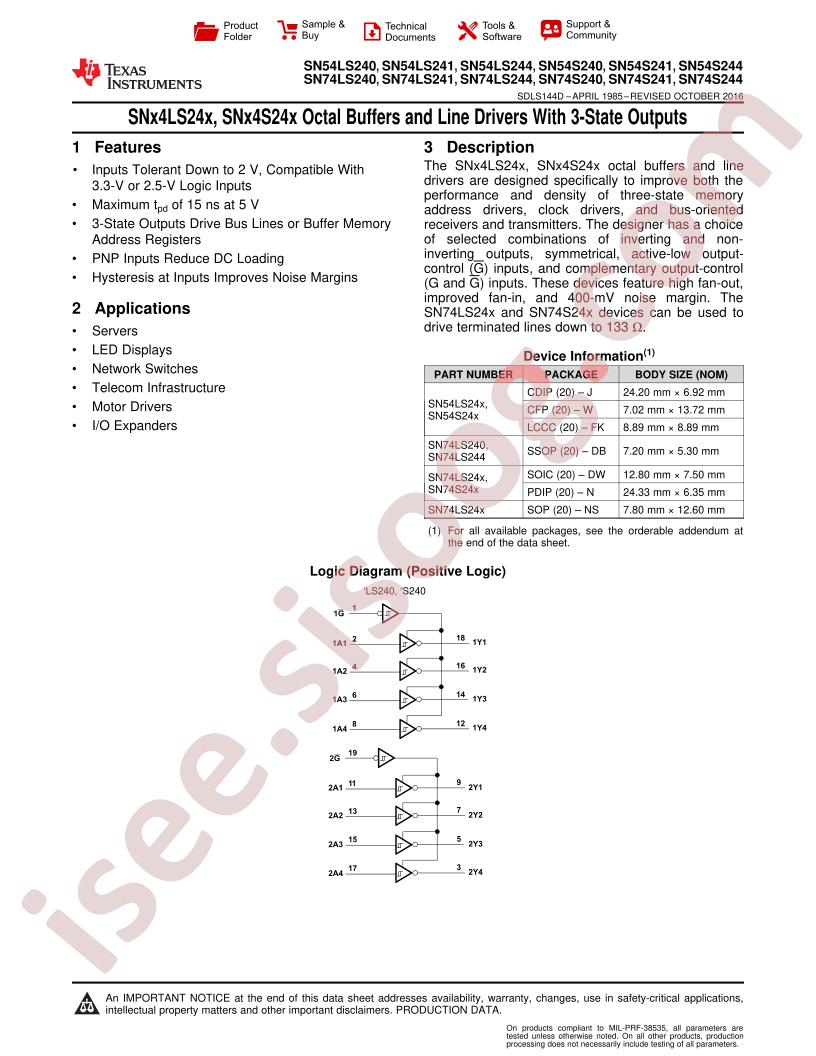

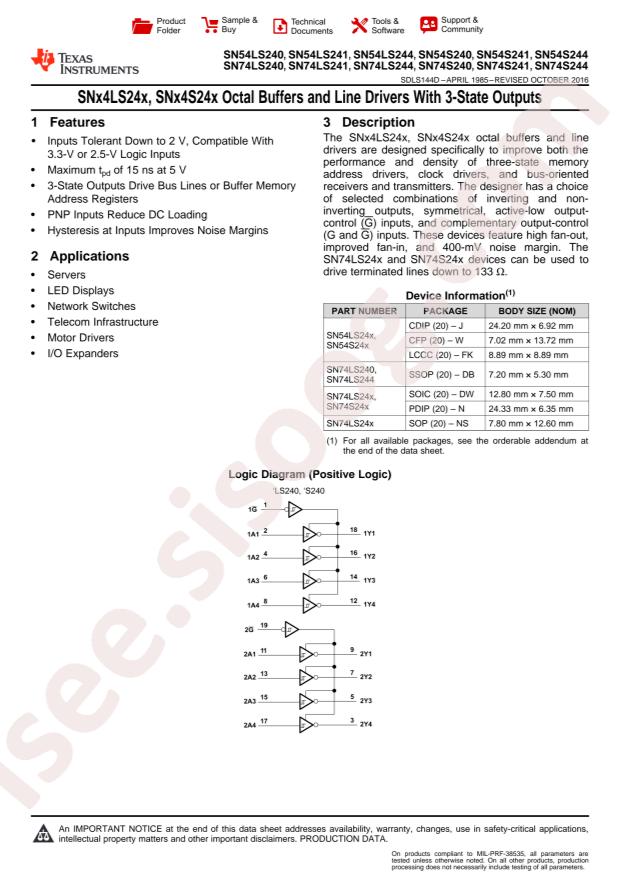

SN74LS244N Datasheet
Datasheet specifications
| Datasheet's name | SN74LS244N |
|---|---|
| File size | 85.861 KB |
| File type | |
| Number of pages | 39 |
Download Datasheet SN74LS244N |
Download Datasheet |
|---|
Other documentations
SN54/74(LS,S)240/41/44 39 pages
Technical specifications
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74LS244N
- output type: Tri-State
- Logic Family: 74LS
- Sink Current: 24mA
- Source Current: 15mA
- Supply Voltage: 4.75V~5.25V
- Number of Elements: 2
- Operating Temperature: 0°C~+70°C
- Number of Bits per Element: 4
- Package: DIP-20
- Manufacturer: Texas Instruments
- Input Type: -
- Package / Case: 20-DIP (0.300", 7.62mm)
- Packaging: Tube
- Supplier Device Package: 20-PDIP
- Voltage - Supply: 4.75V ~ 5.25V
- Part Status: Active
- Base Part Number: SN74LS24
- Series: 74LS
- Mounting Type: Through Hole
- Logic Type: Buffer, Non-Inverting
- Current - Output High, Low: 15mA, 24mA
- detail: Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-PDIP
