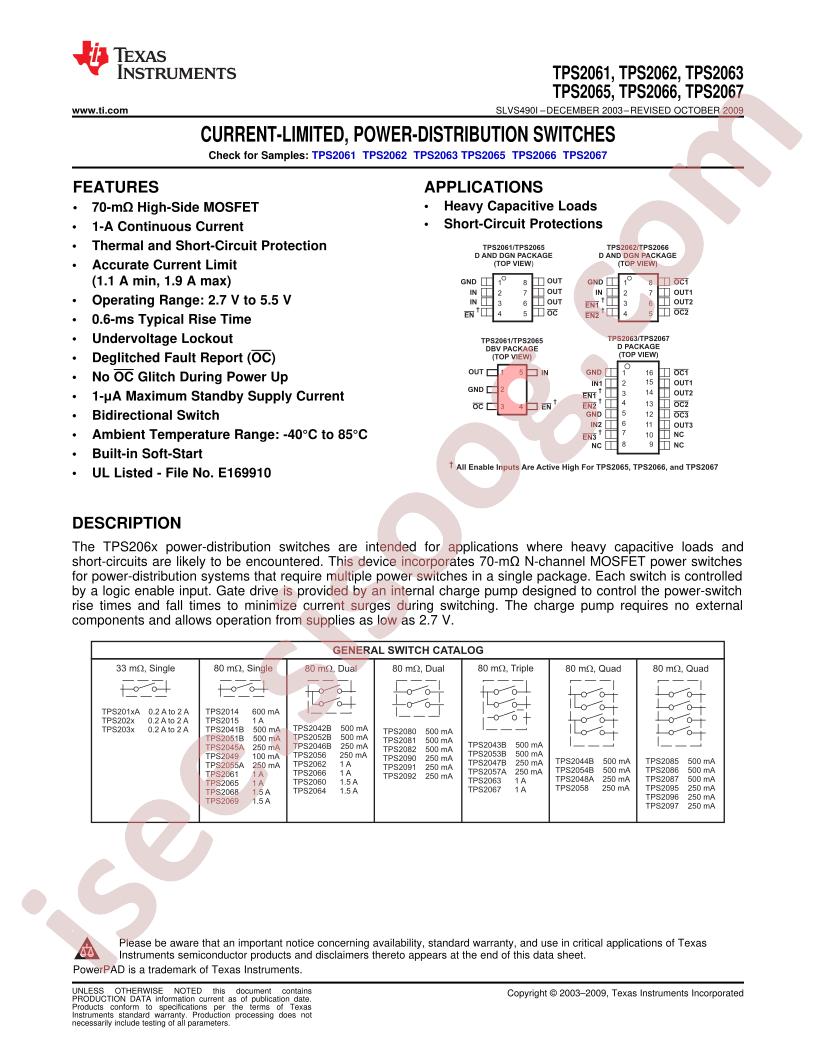

TPS2065DBVT Datasheet

TPS2065DBVT

Datasheet specifications

Datasheet's name TPS2065DBVT
File size 98.919 KB
File type pdf
Number of pages 46

Download Datasheet TPS2065DBVT

Download Datasheet

Other documentations

TPS2061-63/65-67 47 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPS2065DBVT
  • Input Voltage: 2.7V~5.5V
  • Output Current: 1A
  • Number of Outputs: 1
  • Resistor On-State: 70mΩ
  • Operating Temperature -: -40°C~+125°C
  • Package: SOT-23-5
  • Manufacturer: Texas Instruments
  • Input Type: Non-Inverting
  • Output Configuration: High Side
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Packaging: Tube
  • Ratio - Input:Output: 1:1
  • Switch Type: General Purpose
  • Part Status: Active
  • Supplier Device Package: 8-SOIC
  • Mounting Type: Surface Mount
  • Fault Protection: Current Limiting (Fixed), Over Temperature, UVLO
  • Rds On (Typ): 70mOhm
  • Current - Output (Max): 1A
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Series: -
  • Interface: On/Off
  • Base Part Number: TPS206
  • Features: Status Flag
  • Output Type: N-Channel
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Voltage - Load: 2.7V ~ 5.5V
  • detail: Power Switch/Driver 1:1 N-Channel 1A 8-SOIC
