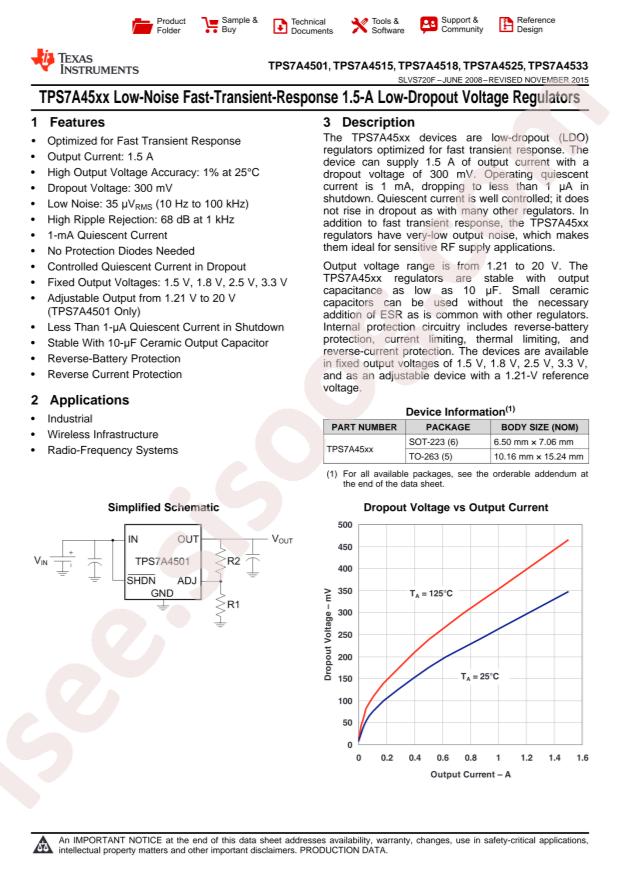

TPS7A4501KTTR Datasheet
Datasheet specifications
|
Datasheet's name
|
TPS7A4501KTTR
|
|
File size
|
101.268
KB
|
|
File type
|
pdf
|
|
Number of pages
|
36
|
Technical specifications
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS7A4501KTTR
-
Output Type:
Adjustable
-
Output Current:
1.5A
-
Output Voltage:
1.21V~20V
-
Dropout Voltage:
450mV@(1.5A)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
20V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
1.5mA
-
Power Supply Rejection Ratio (PSRR):
68dB@(120Hz)
-
Package:
TO-263-5
-
Manufacturer:
Texas Instruments
-
Voltage Dropout (Max):
0.45V @ 1.5A
-
Package / Case:
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
-
Control Features:
Enable
-
Current - Output:
1.5A
-
Output Configuration:
Positive
-
Voltage - Output (Min/Fixed):
1.21V
-
Supplier Device Package:
DDPAK/TO-263-5
-
Part Status:
Active
-
Current - Supply (Max):
90mA
-
Base Part Number:
TPS7A4
-
PSRR:
68dB (120Hz)
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity
-
Packaging:
Cut Tape (CT)
-
Voltage - Output (Max):
20V
-
Voltage - Input (Max):
20V
-
Series:
-
-
Mounting Type:
Surface Mount
-
Current - Quiescent (Iq):
1.5mA
-
Number of Regulators:
1
-
detail:
Linear Voltage Regulator IC 1 Output 1.5A DDPAK/TO-263-5
