دیتاشیت ESDA6V1U1RL

ESDA6V1U1

مشخصات دیتاشیت

نام دیتاشیت ESDA6V1U1
حجم فایل 145.073 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت ESDA6V1U1

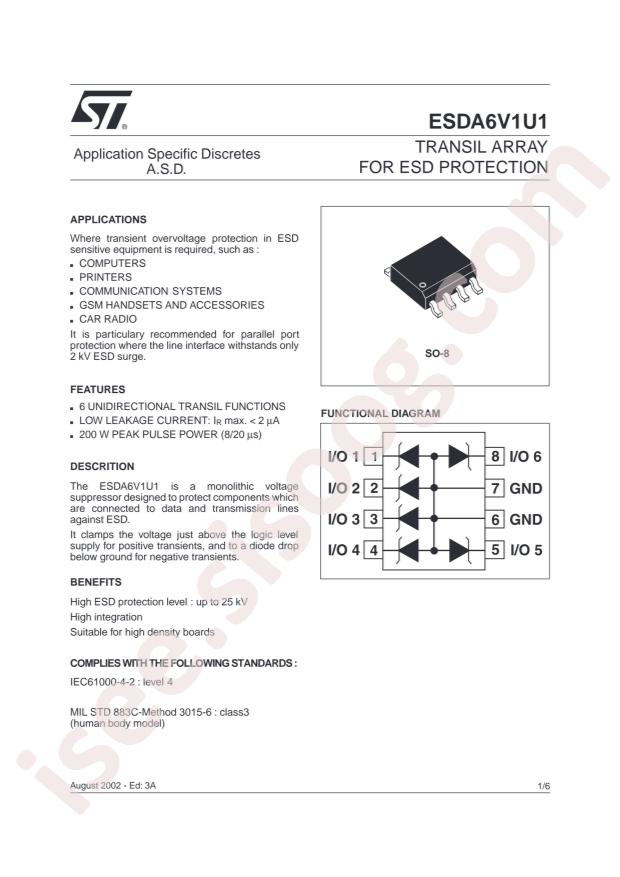

ESDA6V1U1 Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Polarity: Unidirectional
  • Datasheet: STMicroelectronics ESDA6V1U1RL
  • Number of Lines: 6
  • Clamping Voltage@Ipp: 6.1V
  • Breakdown Voltage (VBR): 6.1V
  • Peak Pulse Power(Ppp)@8/20us: 200W
  • Reverse Stand-Off Voltage (Vrwm): 7.2V
  • Package: SOP-8
  • Manufacturer: STMicroelectronics
  • Series: ESDA, TRANSIL™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 6
  • Voltage - Reverse Standoff (Typ): 5V
  • Voltage - Breakdown (Min): 6.1V
  • Voltage - Clamping (Max) @ Ipp: -
  • Current - Peak Pulse (10/1000µs): -
  • Power - Peak Pulse: 200W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Operating Temperature: -
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: ESDA6
  • detail: Clamp Ipp Tvs Diode Surface Mount 8-SOIC
