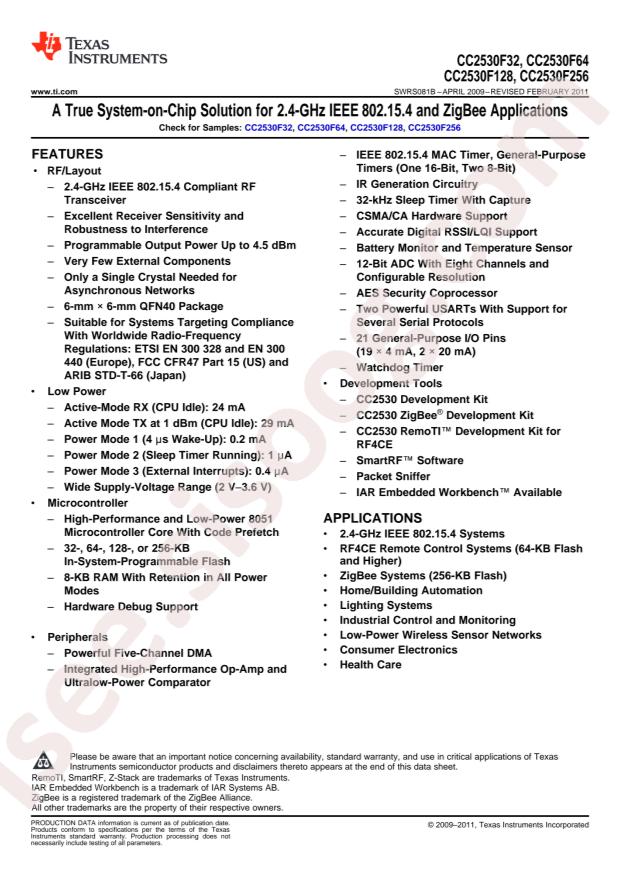

CC2530F256RHAT دیتاشیت

CC2530F256RHAT

مشخصات دیتاشیت

نام دیتاشیت CC2530F256RHAT
حجم فایل 110.488 کیلوبایت
نوع فایل pdf
تعداد صفحات 36

دانلود دیتاشیت CC2530F256RHAT

دانلود دیتاشیت

سایر مستندات

CC2530 Datasheet 34 pages

CC2530 Errata 5 pages

مشخصات فنی

  • RoHS: true
  • Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
  • Data Rate: 250Kbps
  • Datasheet: Texas Instruments CC2530F256RHAT
  • Interface: SPI,USART
  • Applications: 802.15.4
  • Frequency Range: 2.4GHz
  • Receive Current: 20.5mA
  • Operating Voltage: 2V~3.6V
  • Operating Temperature: -40°C~+125°C
  • Current Of Transmitting: 28.7mA
  • Package: QFN-40-EP(6x6)
  • Manufacturer: Texas Instruments
  • GPIO: 21
  • Mounting Type: Surface Mount
  • Current - Transmitting: 28.7mA ~ 33.5mA
  • Packaging: Cut Tape (CT)
  • Type: TxRx + MCU
  • Sensitivity: -97dBm
  • Base Part Number: CC2530
  • Voltage - Supply: 2V ~ 3.6V
  • Memory Size: 256kB Flash, 8kB RAM
  • Protocol: Zigbee®
  • Supplier Device Package: 40-VQFN (6x6)
  • Part Status: Active
  • Current - Receiving: 20.5mA ~ 24.3mA
  • Modulation: -
  • Package / Case: 40-VFQFN Exposed Pad
  • Serial Interfaces: SPI, USART
  • Power - Output: 4.5dBm
  • Frequency: 2.4GHz
  • Data Rate (Max): 250kbps
  • Series: -
  • RF Family/Standard: 802.15.4
  • detail: IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz 40-VFQFN Exposed Pad
