دیتاشیت ISO7641FMDWR

مشخصات دیتاشیت

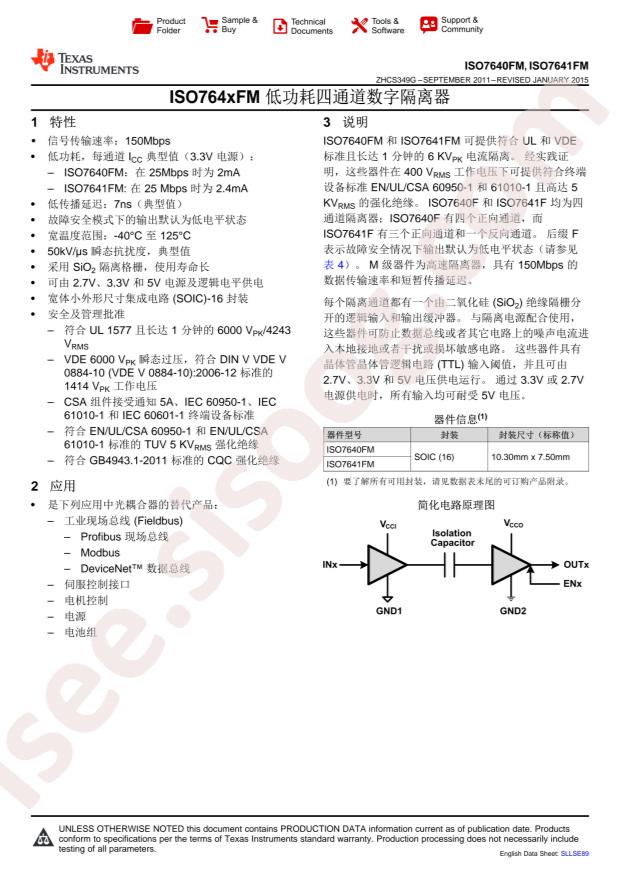

دانلود دیتاشیت ISO7631,40,41FC/FM	ISO7631,40,41FC/FM Datasheet

Type: General Purpose
Data Rate: 150Mbps
Common Mode Transient Immunity (Min): 25kV/µs
Mounting Type: Surface Mount
Isolated Power: No
Voltage - Supply: 2.7V ~ 5.5V
Supplier Device Package: 16-SOIC
Operating Temperature: -40°C ~ 125°C
Part Status: Active
Base Part Number: ISO7641
Pulse Width Distortion (Max): 2ns
Number of Channels: 4
Technology: Capacitive Coupling
Package / Case: 16-SOIC (0.295", 7.50mm Width)
Channel Type: Unidirectional
Inputs - Side 1/Side 2: 3/1
Rise / Fall Time (Typ): 1.6ns, 1ns
Series: -
Manufacturer: Texas Instruments
Packaging: Cut Tape (CT)
Propagation Delay tpLH / tpHL (Max): 10.5ns, 10.5ns
Voltage - Isolation: 4243Vrms
detail: General Purpose Digital Isolator 4243Vrms 4 Channel 150Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
