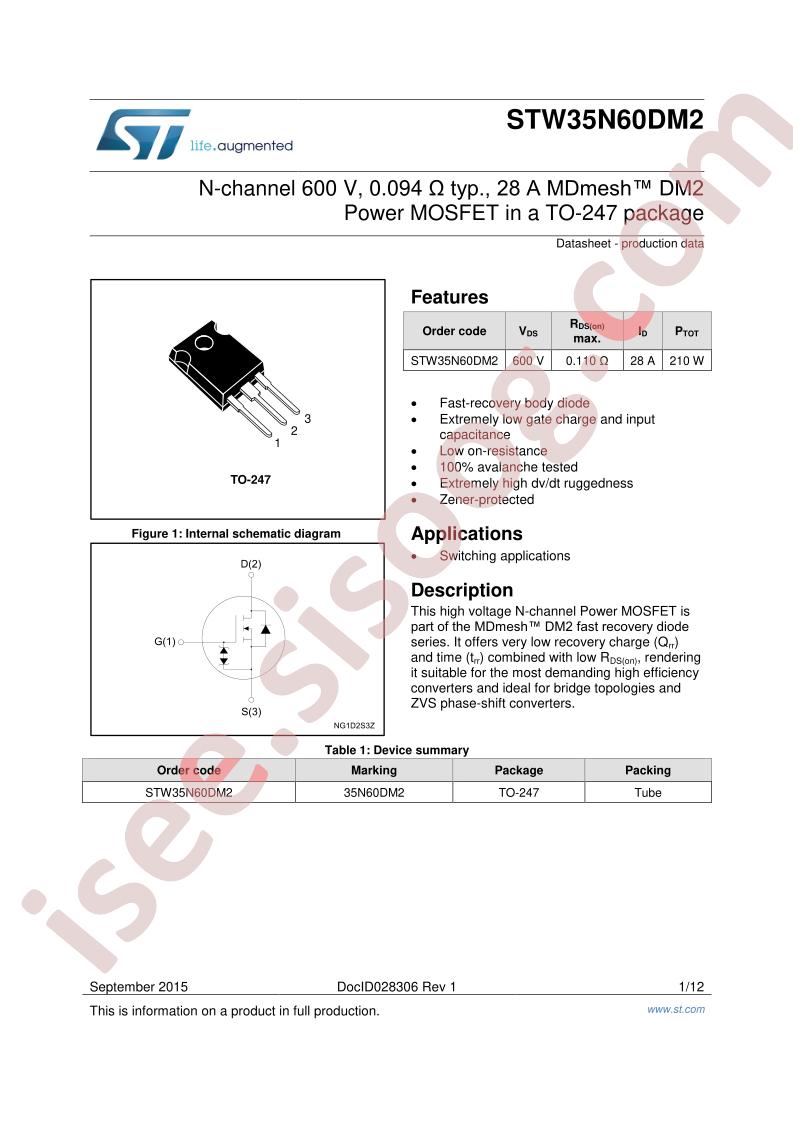

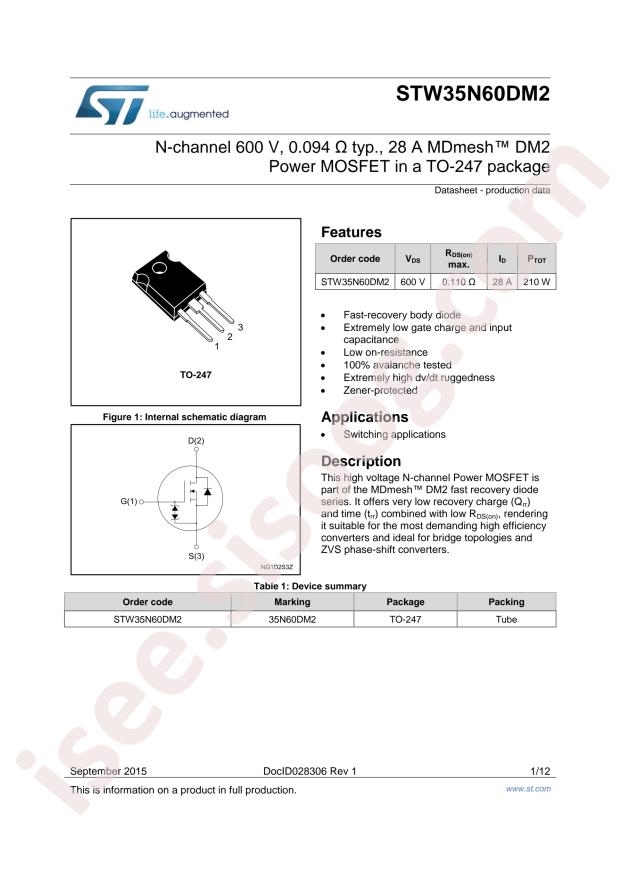

دیتاشیت STW35N60DM2
مشخصات دیتاشیت
| نام دیتاشیت |
STW35N60DM2
|
| حجم فایل |
592.633
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STW35N60DM2
-
Power Dissipation (Pd):
210W
-
Drain Source Voltage (Vdss):
600V
-
Continuous Drain Current (Id):
28A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
110mΩ@10V,14A
-
Package:
TO-247AC-3
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ DM2
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
28A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
110mOhm @ 14A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
54nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
2400pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
210W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-247
-
Package / Case:
TO-247-3
-
Base Part Number:
STW35N
-
detail:
N-Channel 600V 28A (Tc) 210W (Tc) Through Hole TO-247
