دیتاشیت STM8S207RBT6
مشخصات دیتاشیت
| نام دیتاشیت | STM8S207xx, 208xx Datasheet |
|---|---|
| حجم فایل | 1573.762 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 117 |

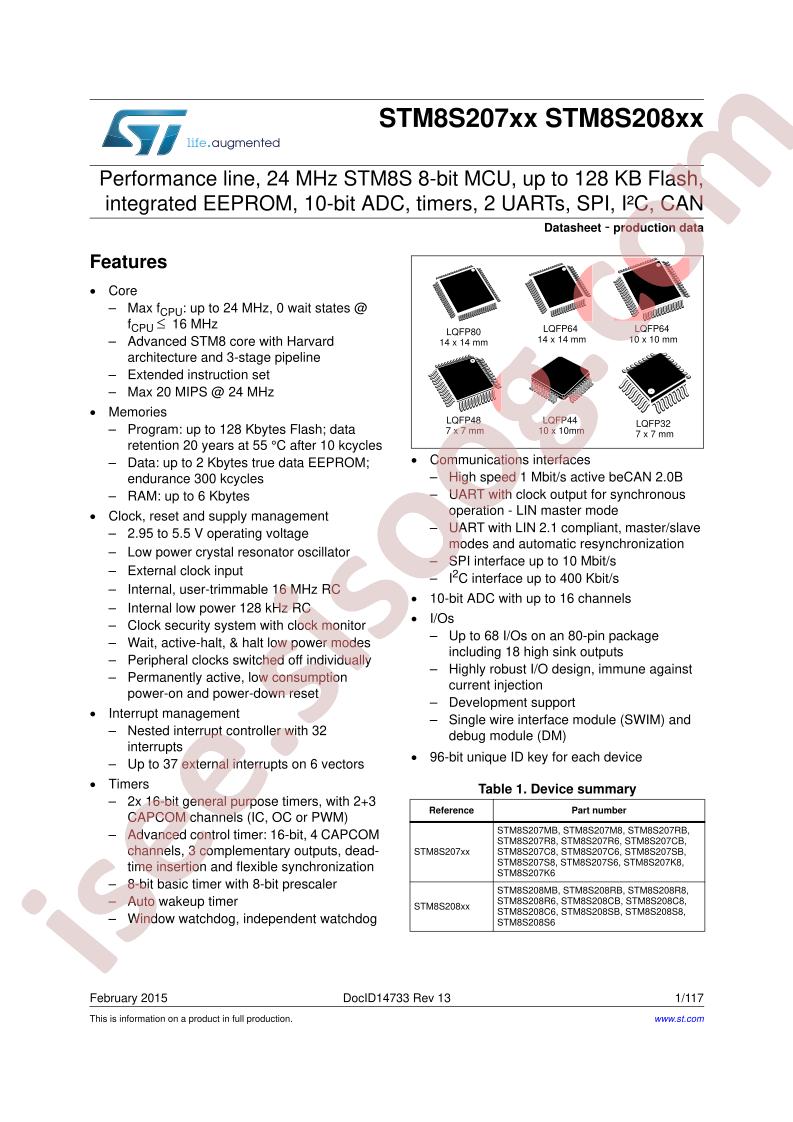

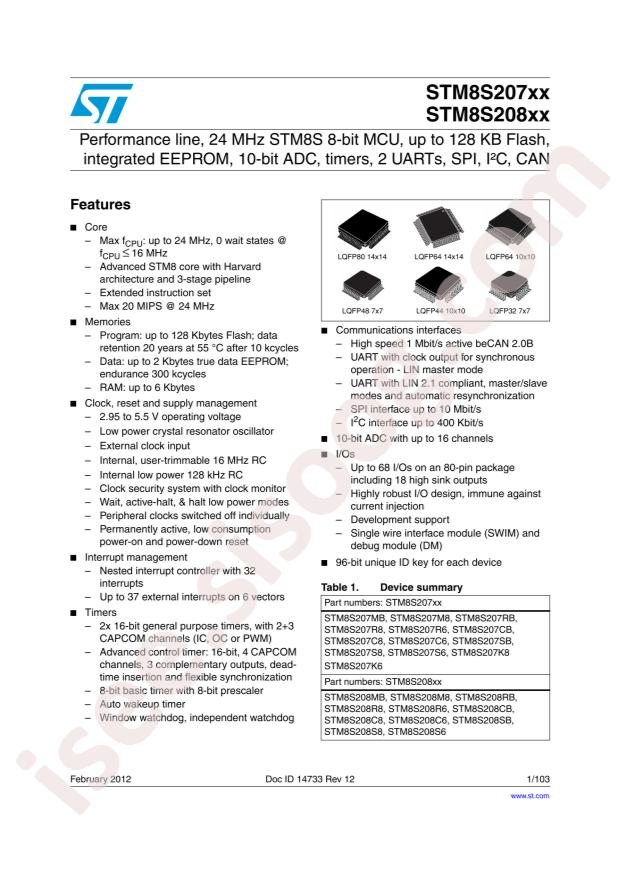

دانلود دیتاشیت STM8S207xx, 208xx Datasheet |
STM8S207xx, 208xx Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: STM8
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 6KB
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: STMicroelectronics STM8S207RBT6
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 24MHz
- GPIO Ports Number: 52
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM;WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 128KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.95V~5.5V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-64(10x10)
- Manufacturer: STMicroelectronics
- Series: STM8S
- Packaging: Tray
- Part Status: Active
- Core Processor: STM8
- Core Size: 8-Bit
- Speed: 24MHz
- Connectivity: I²C, IrDA, LINbus, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 52
- Program Memory Size: 128KB (128K x 8)
- EEPROM Size: 2K x 8
- Voltage - Supply (Vcc/Vdd): 2.95V ~ 5.5V
- Data Converters: A/D 16x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-LQFP
- Supplier Device Package: 64-LQFP (10x10)
- Base Part Number: STM8S207
- detail: STM8 STM8S Microcontroller IC 8-Bit 24MHz 128KB (128K x 8) FLASH 64-LQFP (10x10)
