دیتاشیت VCA810ID

VCA810

مشخصات دیتاشیت

نام دیتاشیت VCA810
حجم فایل 1675.249 کیلوبایت
نوع فایل pdf
تعداد صفحات 41

دانلود دیتاشیت VCA810

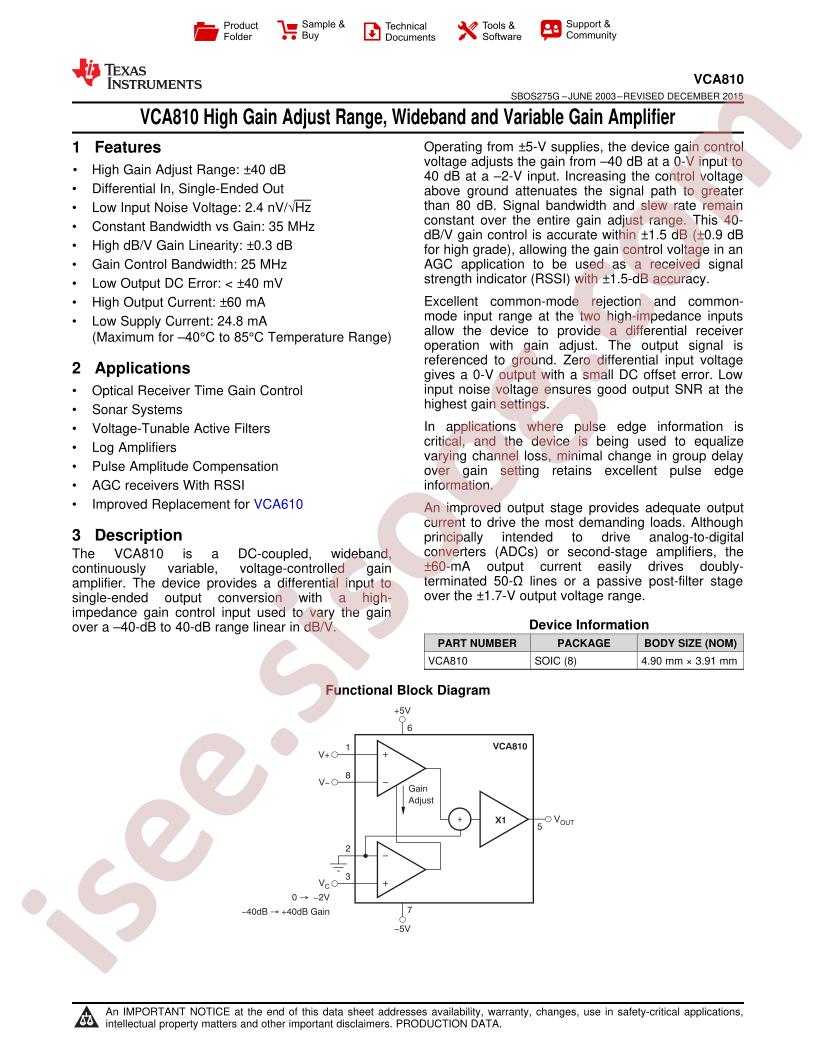

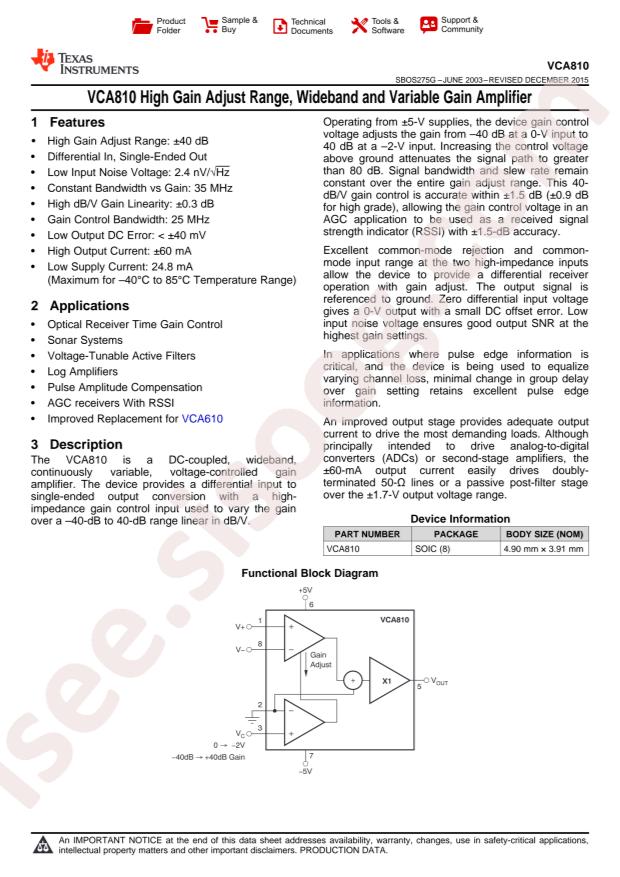

VCA810 Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Programmable/Variable Gain Amplifiers (PGAs/VGAs)
  • Datasheet: Texas Instruments VCA810ID
  • Supply Current: 20mA
  • Bandwidth (-3dB): 35MHz
  • Number of Channels: 1
  • Input Bias Current (Ib): 6uA
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Voltage - Input Offset: 100µV
  • Current - Supply: 20mA
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Amplifier Type: Variable Gain
  • Series: -
  • Base Part Number: VCA810
  • Operating Temperature: -40°C ~ 85°C
  • Part Status: Active
  • -3db Bandwidth: 35MHz
  • Current - Input Bias: 6µA
  • Voltage - Supply, Single/Dual (±): ±4V ~ 6V
  • Number of Circuits: 1
  • Packaging: Tube
  • Output Type: -
  • Supplier Device Package: 8-SOIC
  • Slew Rate: 350V/µs
  • Current - Output / Channel: 60mA
  • detail: Variable Gain Amplifier 1 Circuit 8-SOIC
