دیتاشیت F28M35H52C1RFPT

مشخصات دیتاشیت

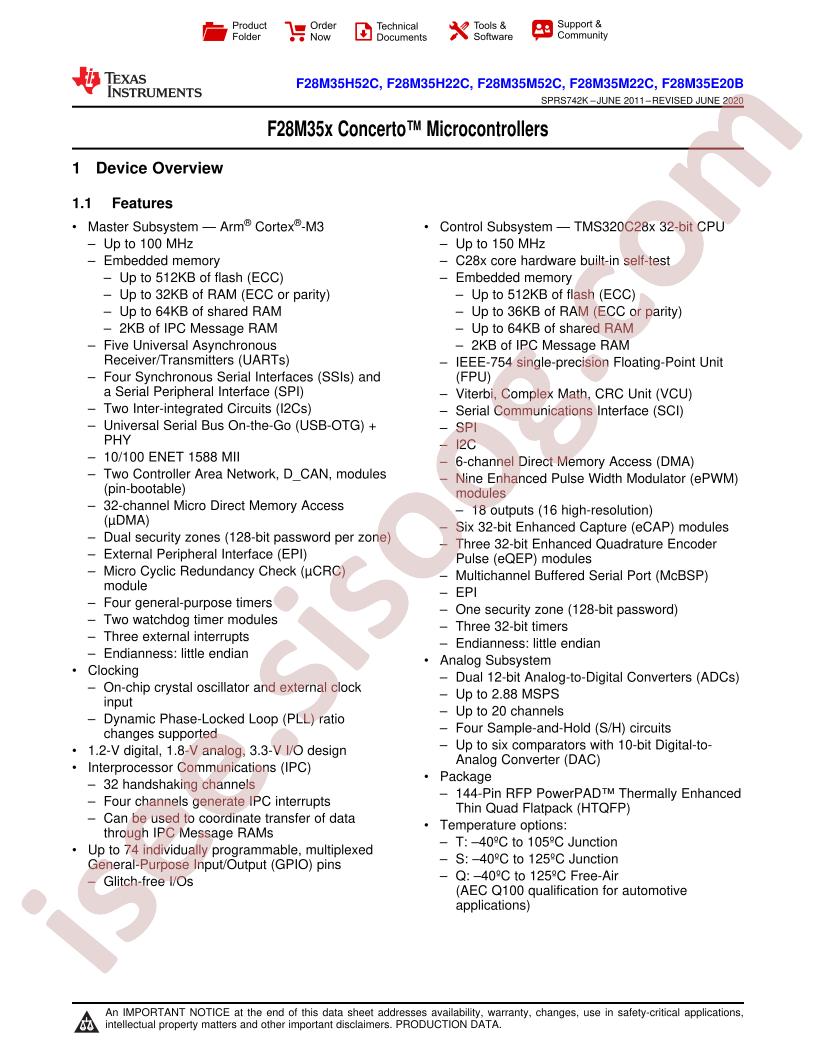

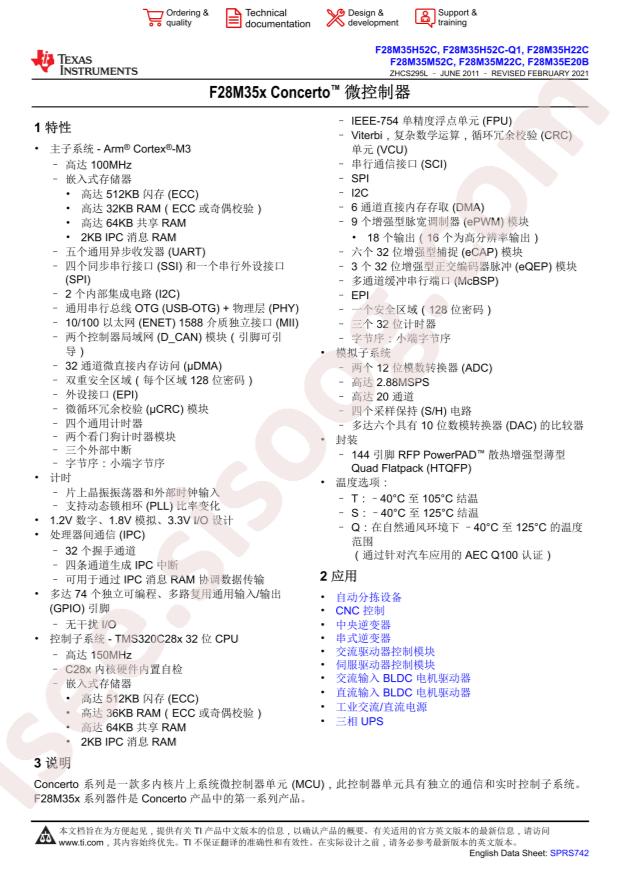

دانلود دیتاشیت F28M35x Datasheet	F28M35x Datasheet Datasheet

RoHS: true
CPU Core: ARMOther series
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
Watchdog: Yes
ADC (Bit): 12bit
Datasheet: Texas Instruments F28M35H52C1RFPT
CPU Maximum Speed: 100MHz;150MHz
GPIO Ports Number: 74
Low-Voltage Detect: Yes
Direct Memory Access: Yes
Program Storage Size: 512KB
Universal Serial Bus: Yes
Operating Temperature Range: -40°C~+105°C
Package: HTQFP-144(20x20)
Manufacturer: Texas Instruments
Mounting Type: Surface Mount
RAM Size: 136KB
Connectivity: CANbus, EBI/EMI, Ethernet, I²C, SCI, SPI, SSI, UART/USART, USB, USB OTG
Packaging: Tray
Data Converters: A/D 20x12b
Number of I/O: 74
Core Size: 32-Bit Dual-Core
Core Processor: C28x/ARM® Cortex®-M3
Supplier Device Package: 144-HTQFP (20x20)
Operating Temperature: -40°C ~ 105°C (TJ)
Part Status: Active
EEPROM Size: -
Package / Case: 144-TQFP Exposed Pad
Voltage - Supply (Vcc/Vdd): 1.2V, 1.8V, 3.3V
Program Memory Size: 512KB/512KB
Base Part Number: F28M35
Speed: 100MHz/150MHz
Series: C2000™ C28x + ARM® Cortex® M3 Concerto™
Oscillator Type: -
Program Memory Type: FLASH
Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
detail: C28x/ARM® Cortex®-M3 C2000™ C28x + ARM® Cortex® M3 Concerto™ Microcontroller IC 32-Bit Dual-Core 100MHz/150MHz 512KB/512KB FLASH 144-HTQFP (20x20)
