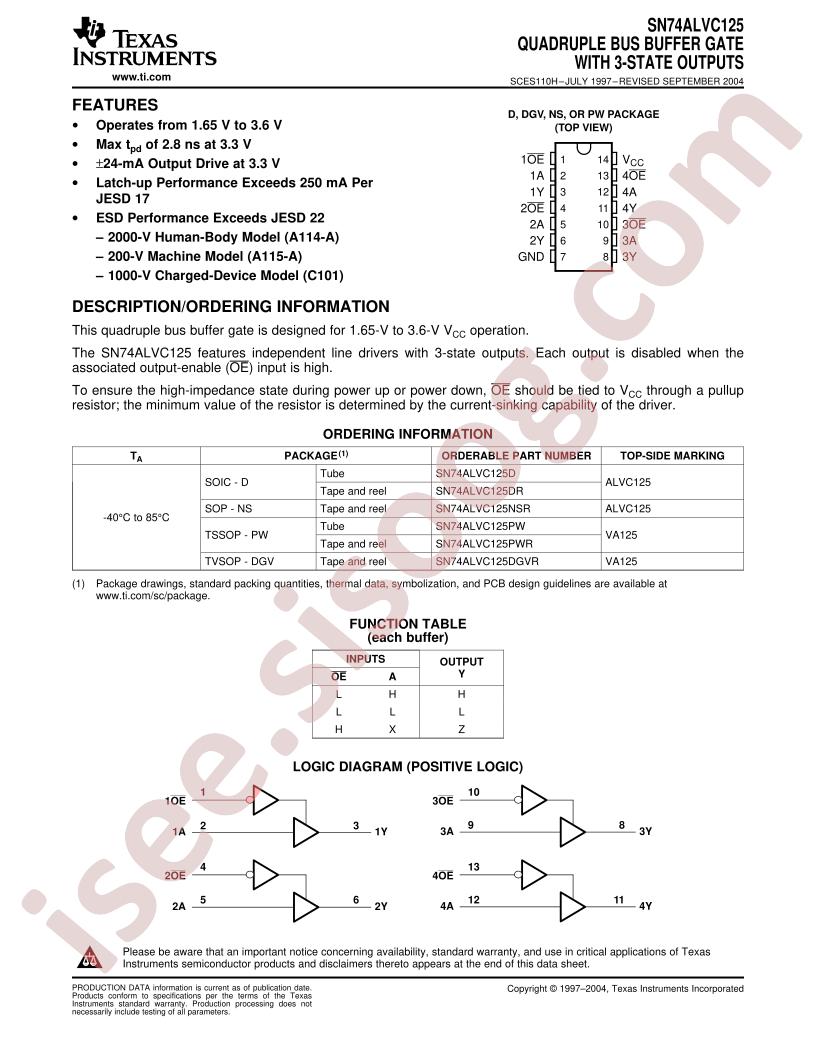

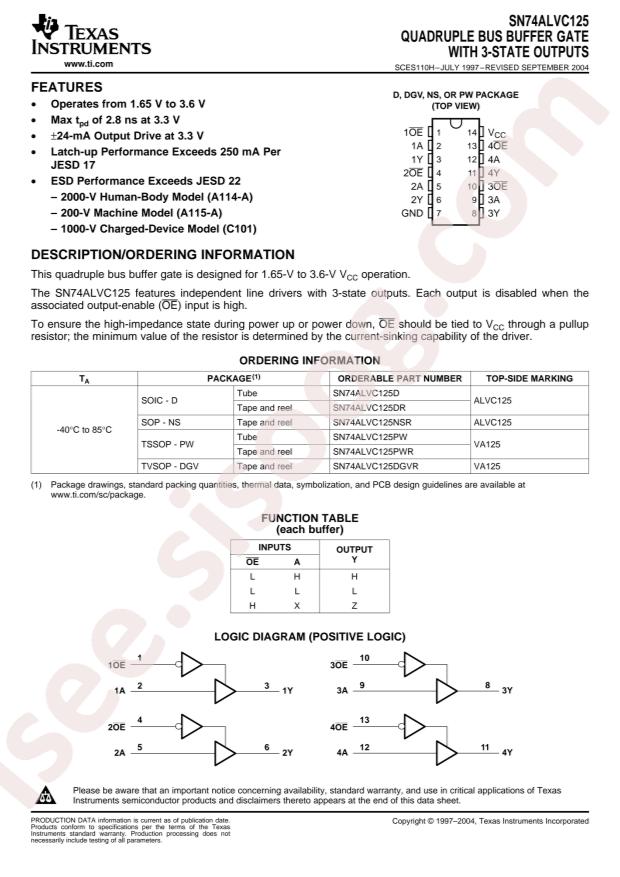

- دیتاشیت SN74ALVC125DR
دیتاشیت SN74ALVC125DR
مشخصات دیتاشیت
| نام دیتاشیت | SN74ALVC125DR |
|---|---|
| حجم فایل | 86.317 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
SN74ALVC125DR |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
SN74ALVC125 15 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74ALVC125DR
- output type: Tri-State
- Logic Family: 74ALVC
- Sink Current: 24mA
- Source Current: 24mA
- Supply Voltage: 1.65V~3.6V
- Number of Elements: 4
- Operating Temperature: -40°C~+85°C
- Number of Bits per Element: 1
- Package: SOP-14
- Manufacturer: Texas Instruments
- Voltage - Supply: 1.65V ~ 3.6V
- Input Type: -
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Part Status: Active
- Current - Output High, Low: 24mA, 24mA
- Series: 74ALVC
- Supplier Device Package: 14-SOIC
- Logic Type: Buffer, Non-Inverting
- Base Part Number: SN74ALVC
- detail: Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-SOIC
