دیتاشیت SN74ACT74PWR
مشخصات دیتاشیت
| نام دیتاشیت |

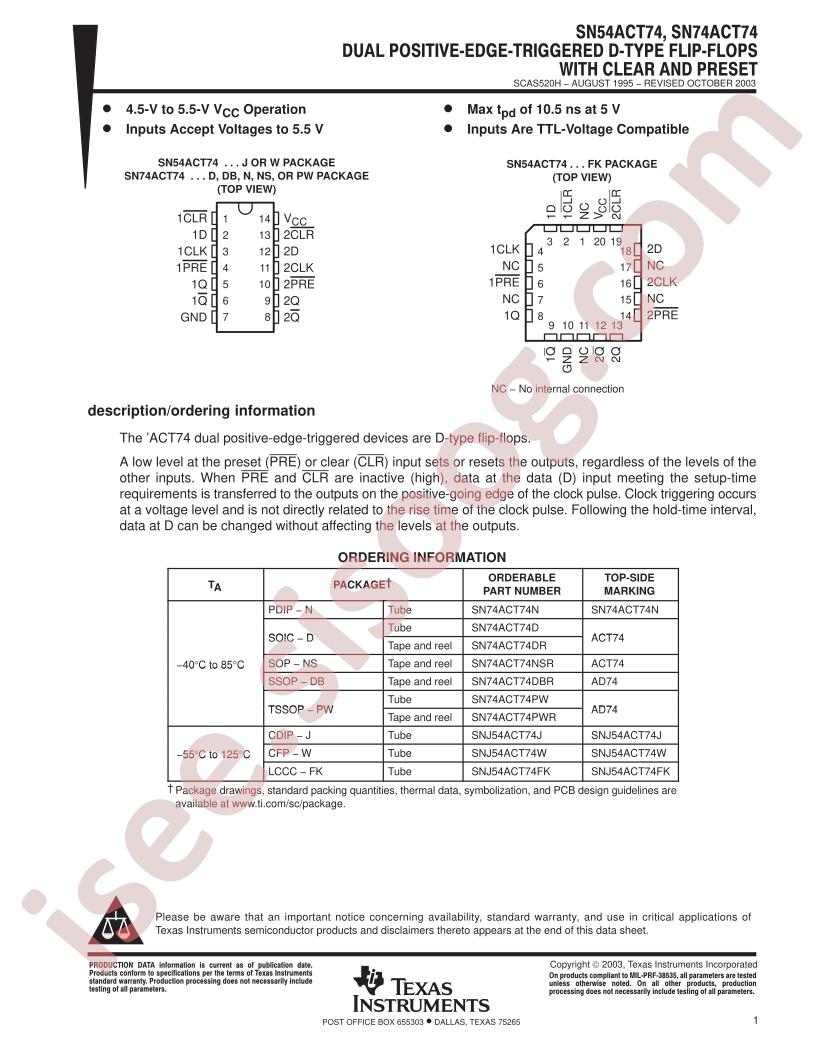

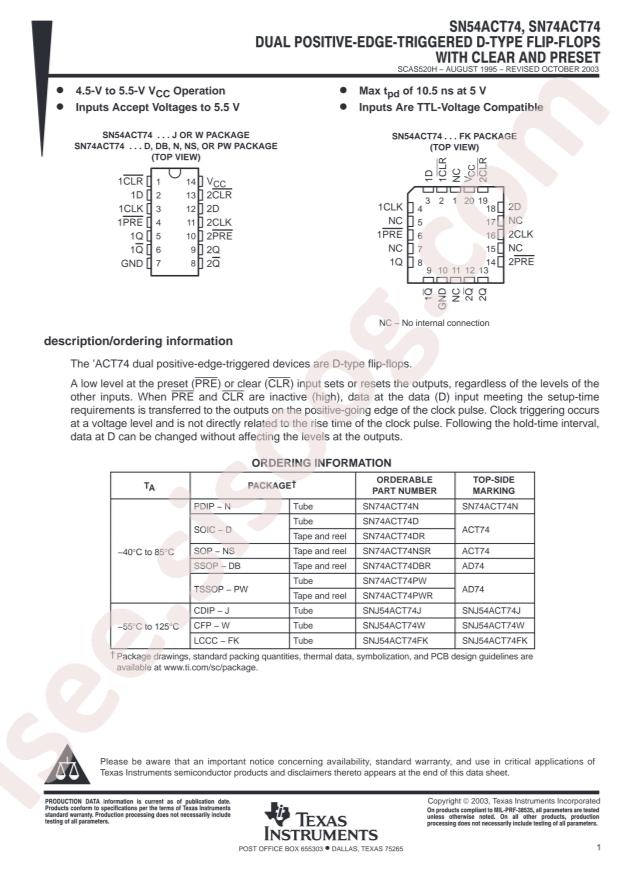

SN54/74ACT74
|
| حجم فایل |
1293.339
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
23
|
مشخصات
-
RoHS:
true
-
Type:
D-Type
-
Series:
74ACT
-
Category:
Logic ICs/Flip Flops
-
Function:
置位和复位
-
Datasheet:
Texas Instruments SN74ACT74PWR
-
Output Type:
互补型
-
Sink Current:
24mA
-
Trigger Type:
上升沿
-
Source Current:
24mA
-
Supply Voltage:
4.5V~5.5V
-
Clock Frequency:
210MHz
-
Input Capacitance:
3pF
-
Number of Elements:
2
-
Operating Temperature:
-40°C~+85°C
-
Quiescent Current (Iq):
2uA
-
Maximum Propagation Delay:
11ns@5V,50pF
-
Number of Bits per Element:
1
-
Package:
TSSOP-14
-
Manufacturer:
Texas Instruments
-
Voltage - Supply:
4.5V ~ 5.5V
-
Package / Case:
14-TSSOP (0.173", 4.40mm Width)
-
Packaging:
Cut Tape (CT)
-
Supplier Device Package:
14-TSSOP
-
Current - Output High, Low:
24mA, 24mA
-
Part Status:
Active
-
Base Part Number:
SN74ACT7
-
Mounting Type:
Surface Mount
-
Current - Quiescent (Iq):
2µA
-
Max Propagation Delay @ V, Max CL:
11ns @ 5V, 50pF
-
detail:
Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-TSSOP (0.173", 4.40mm Width)
