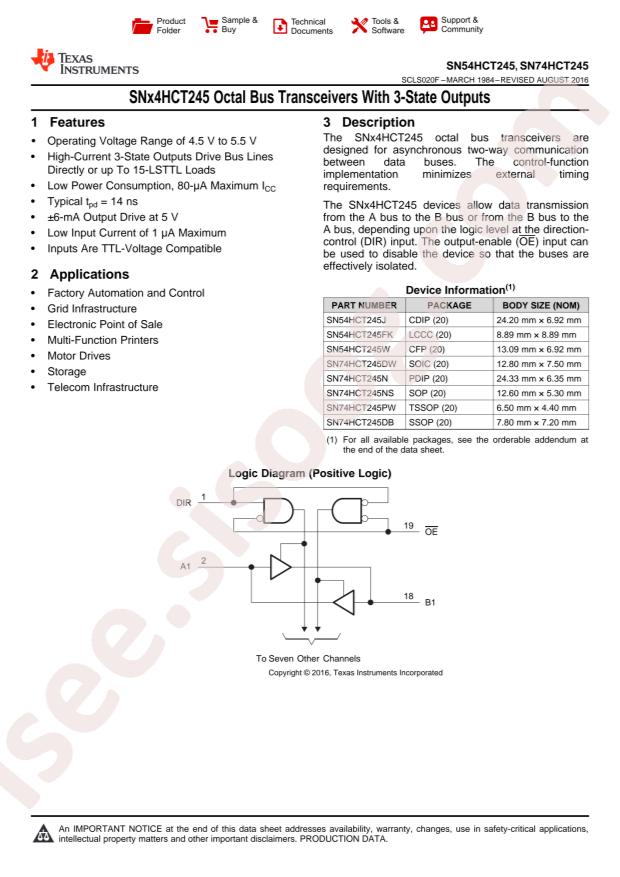

SN74HCT245NSR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74HCT245NSR |
|---|---|
| حجم فایل | 79.903 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 31 |
دانلود دیتاشیت SN74HCT245NSR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54HCT245, SN74HCT245 32 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74HCT245NSR
- output type: Tri-State
- Logic Family: 74HCT
- Sink Current: 6mA
- Source Current: 6mA
- Supply Voltage: 4.5V~5.5V
- Number of Elements: 1
- Operating Temperature: -40°C~+85°C
- Number of Bits per Element: 8
- Package: SOIC-20
- Manufacturer: Texas Instruments
- Voltage - Supply: 4.5V ~ 5.5V
- Input Type: -
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Package / Case: 20-SOIC (0.209", 5.30mm Width)
- Part Status: Active
- Current - Output High, Low: 6mA, 6mA
- Series: 74HCT
- Supplier Device Package: 20-SO
- Logic Type: Transceiver, Non-Inverting
- Base Part Number: SN74HCT
- detail: Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-SO
