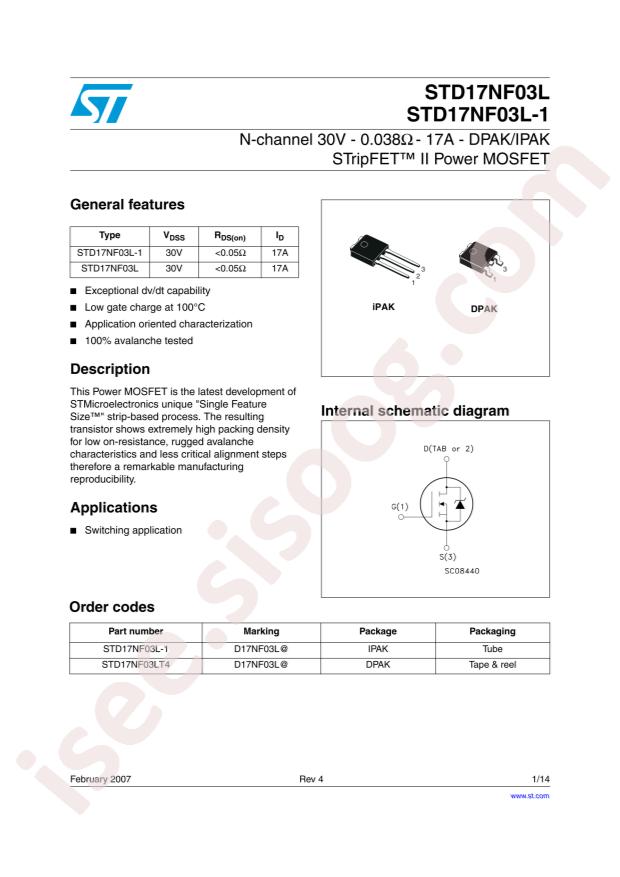

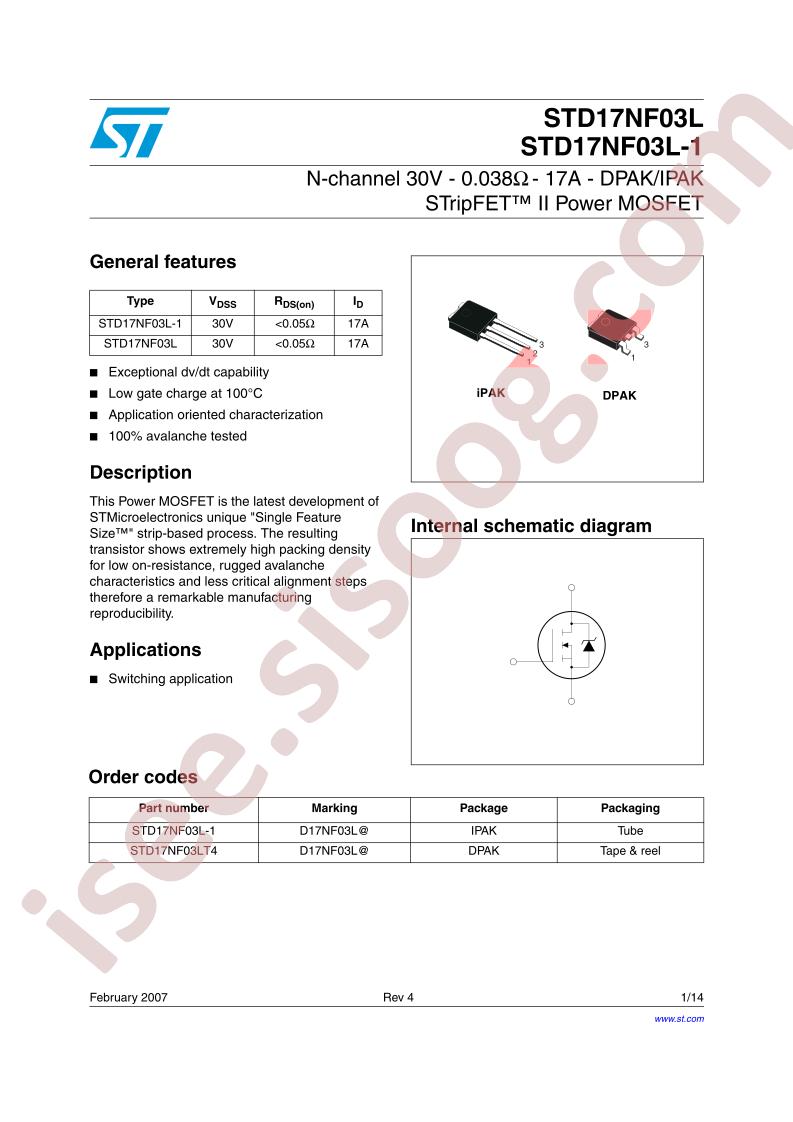

دیتاشیت STD17NF03LT4
مشخصات دیتاشیت
| نام دیتاشیت |
STD17NF03L(-1)
|
| حجم فایل |
313.008
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STD17NF03LT4
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
30W
-
Total Gate Charge (Qg@Vgs):
6.5nC@5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
320pF@25V
-
Continuous Drain Current (Id):
17A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.2V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
50mΩ@10V,8.5A
-
Package:
TO-252
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ II
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
17A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
5V, 10V
-
Rds On (Max) @ Id, Vgs:
50mOhm @ 8.5A, 10V
-
Vgs(th) (Max) @ Id:
2.2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
6.5nC @ 5V
-
Vgs (Max):
±16V
-
Input Capacitance (Ciss) (Max) @ Vds:
320pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
30W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
DPAK
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
STD17
-
detail:
N-Channel 30V 17A (Tc) 30W (Tc) Surface Mount DPAK
