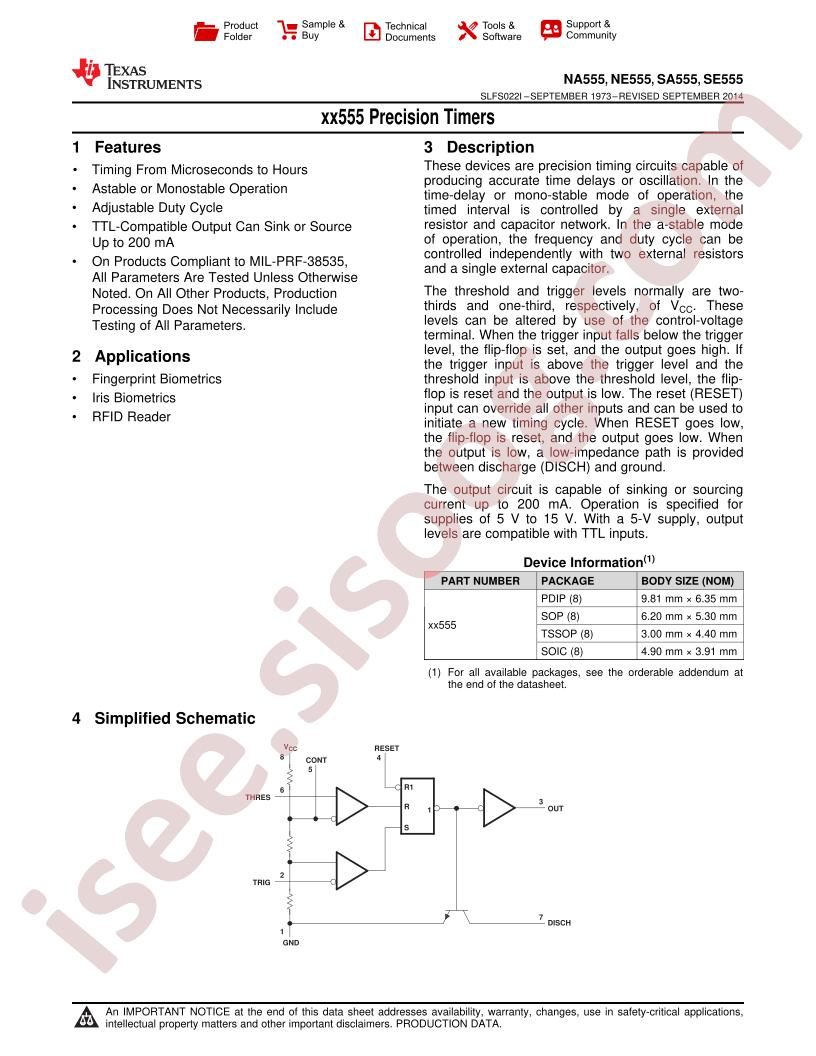

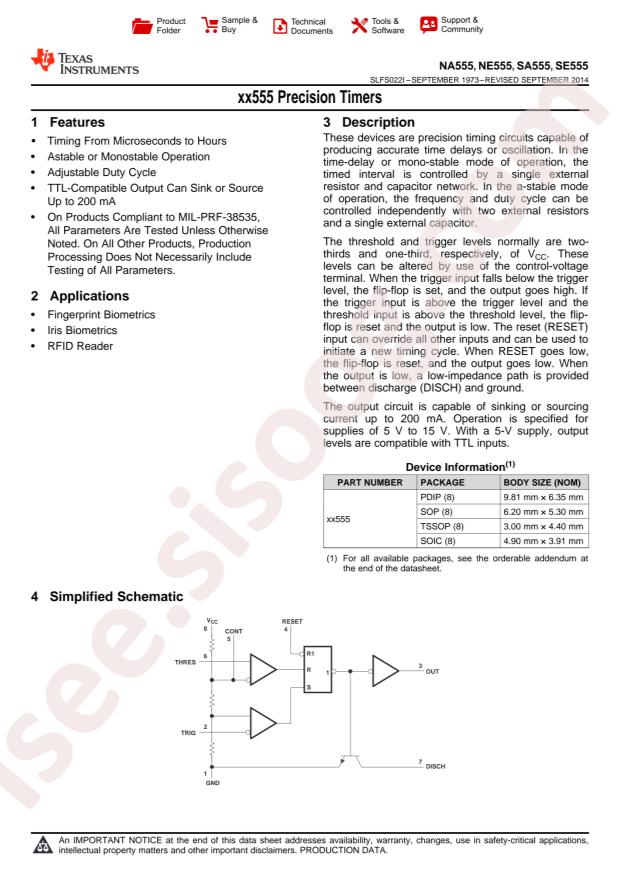

SA555P Datasheet

SA555P

Datasheet specifications

Datasheet's name SA555P
File size 88.243 KB
File type pdf
Number of pages 36

Download Datasheet SA555P

Download Datasheet

Other documentations

NA,NE,SA,SE_555 37 pages

Technical specifications

  • RoHS: true
  • Category: RTC/Clock Chip/Timers / Clock Oscillators
  • Datasheet: Texas Instruments SA555P
  • Frequency: 100kHz
  • Supply Current: 10mA
  • Supply Voltage: 4.5V~16V
  • Operating Temperature: -40°C~+85°C
  • Package: DIP-8
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Voltage - Supply: 4.5V ~ 16V
  • Part Status: Active
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Packaging: Tube
  • Type: 555 Type, Timer/Oscillator (Single)
  • Count: -
  • Base Part Number: SA55
  • Series: -
  • Current - Supply: 10mA
  • Supplier Device Package: 8-PDIP
  • detail: 555 Type, Timer/Oscillator (Single) IC 100kHz 8-PDIP
