دیتاشیت TPS76333QDBVRQ1
مشخصات دیتاشیت
| نام دیتاشیت | TPS763xx-Q1 Datasheet |
|---|---|
| حجم فایل | 1175.843 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 25 |

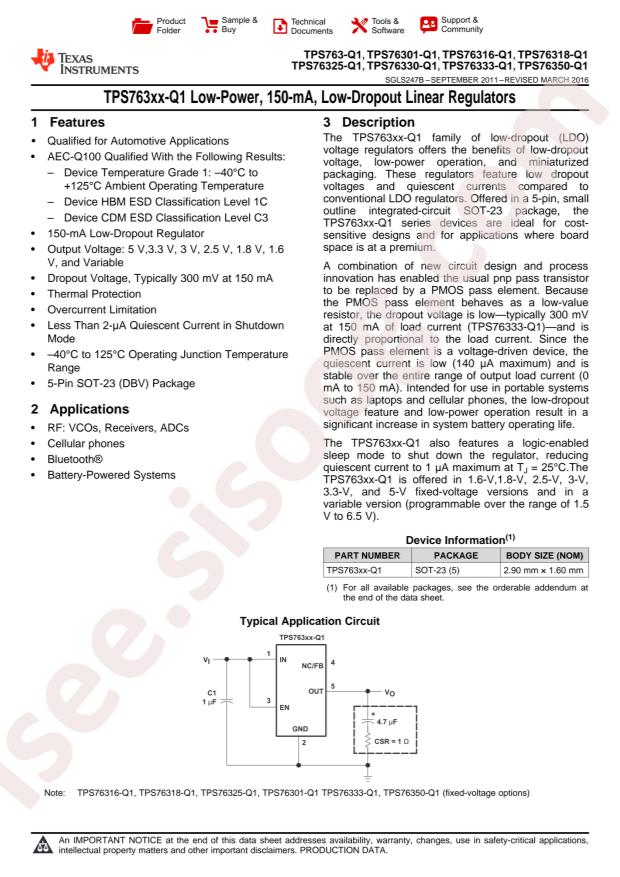

دانلود دیتاشیت TPS763xx-Q1 Datasheet |
TPS763xx-Q1 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TPS76333QDBVRQ1
- Output Current: 150mA
- Output Voltage: 3.3V
- Dropout Voltage: 0.5V@(150mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 10V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 100uA
- Power Supply Rejection Ratio (PSRR): 60dB@(1kHz)

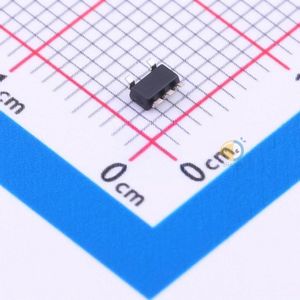

- Package: SOT-23-5
- Manufacturer: Texas Instruments
- Current - Supply (Max): 140µA
- Output Configuration: Positive
- Package / Case: SC-74A, SOT-753
- Packaging: Cut Tape (CT)
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Number of Regulators: 1
- Part Status: Active
- Current - Quiescent (Iq): 100µA
- Supplier Device Package: SOT-23-5
- Voltage - Input (Max): 10V
- Voltage - Output (Min/Fixed): 3.3V
- Mounting Type: Surface Mount
- PSRR: 60dB (1kHz)
- Base Part Number: TPS763
- Series: Automotive, AEC-Q100
- Output Type: Fixed
- Control Features: Enable
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.5V @ 150mA
- Current - Output: 150mA
- detail: Linear Voltage Regulator IC 1 Output 150mA SOT-23-5
