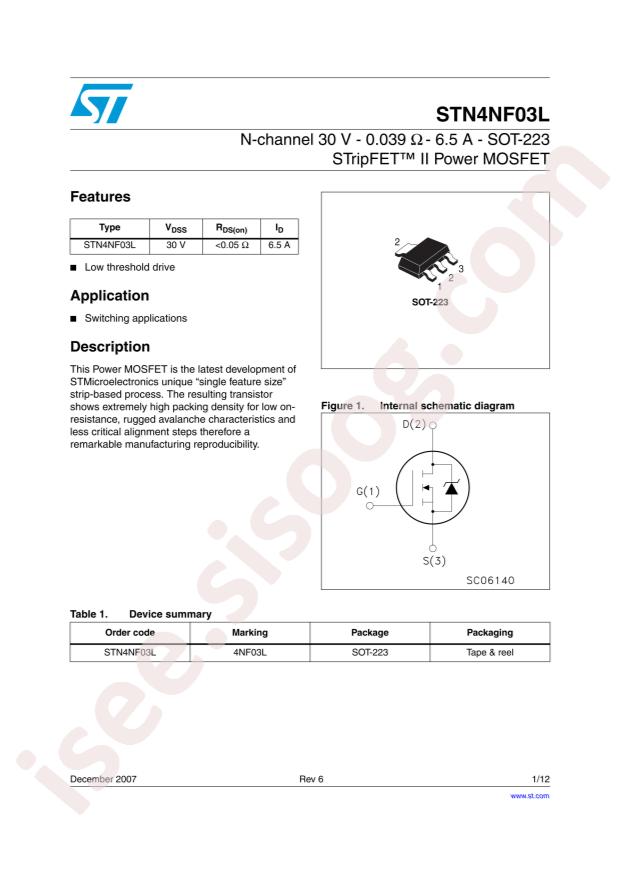

STN4NF03L دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STN4NF03L
|
|
حجم فایل
|
50.277
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STN4NF03L
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
3.3W
-
Total Gate Charge (Qg@Vgs):
9nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
330pF@25V
-
Continuous Drain Current (Id):
6.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
1V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
50mΩ@10V,2A
-
Package:
SOT-223
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ II
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
6.5A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
5V, 10V
-
Rds On (Max) @ Id, Vgs:
50mOhm @ 2A, 10V
-
Vgs(th) (Max) @ Id:
1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
9nC @ 10V
-
Vgs (Max):
±16V
-
Input Capacitance (Ciss) (Max) @ Vds:
330pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
3.3W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-223
-
Package / Case:
TO-261-4, TO-261AA
-
Base Part Number:
STN4N
-
detail:
N-Channel 30V 6.5A (Tc) 3.3W (Tc) Surface Mount SOT-223
