دیتاشیت SN74HC393N
مشخصات دیتاشیت
| نام دیتاشیت | SN54HC393, SN74HC393 |
|---|---|
| حجم فایل | 1266.583 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
دانلود دیتاشیت SN54HC393, SN74HC393 |

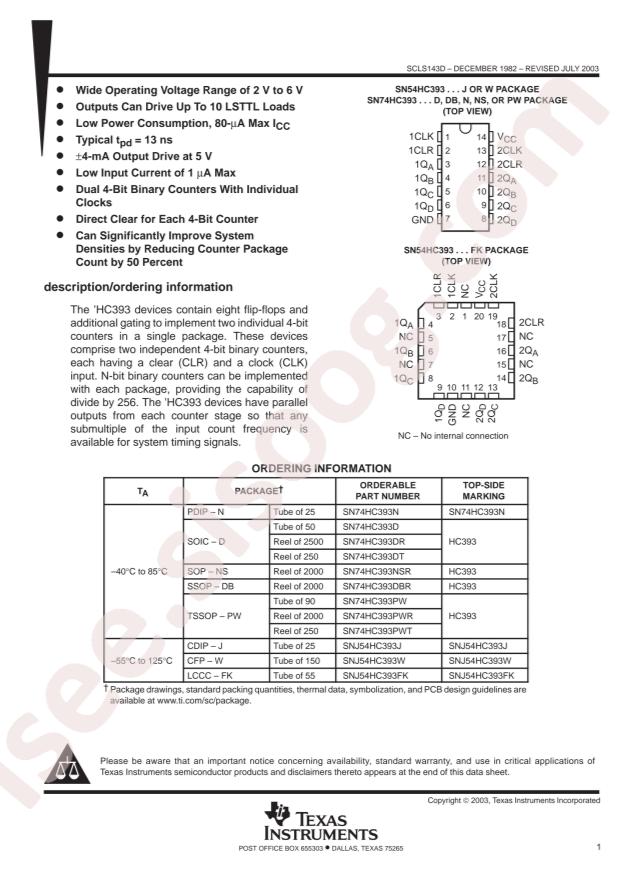

SN54HC393, SN74HC393 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Counters / Dividers
- Datasheet: Texas Instruments SN74HC393N
- Direction: 向上计数器
- Count Rate: 36MHz
- Logic Type: Binary Counter
- Reset Style: Asynchronous
- Timing mode: -
- Trigger Type: Negative Edge
- Supply Voltage: 2V~6V
- Number of Elements: 2
- Operating Temperature: -40°C~+85°C
- Number of Bits per Element: 4
- Package: DIP-14
- Manufacturer: Texas Instruments
- Timing: -
- Reset: Asynchronous
- Voltage - Supply: 2V ~ 6V
- Part Status: Active
- Mounting Type: Through Hole
- Packaging: Tube
- Package / Case: 14-DIP (0.300", 7.62mm)
- Series: 74HC
- Supplier Device Package: 14-PDIP
- Base Part Number: SN74HC3
