دیتاشیت CD74HCT00E
مشخصات دیتاشیت
| نام دیتاشیت |

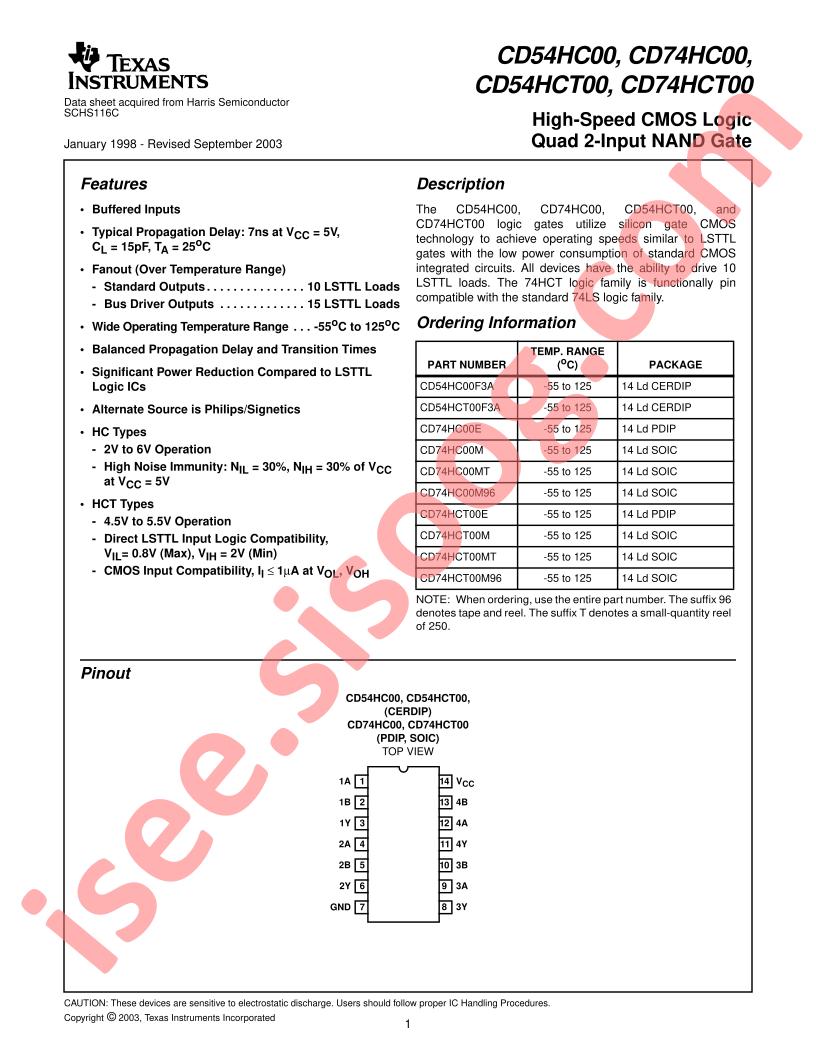

CD54,74HC(T)00
|
| حجم فایل |
989.027
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات
-
RoHS:
true
-
Series:
74HCT
-
Category:
Logic ICs/Gates
-
Datasheet:

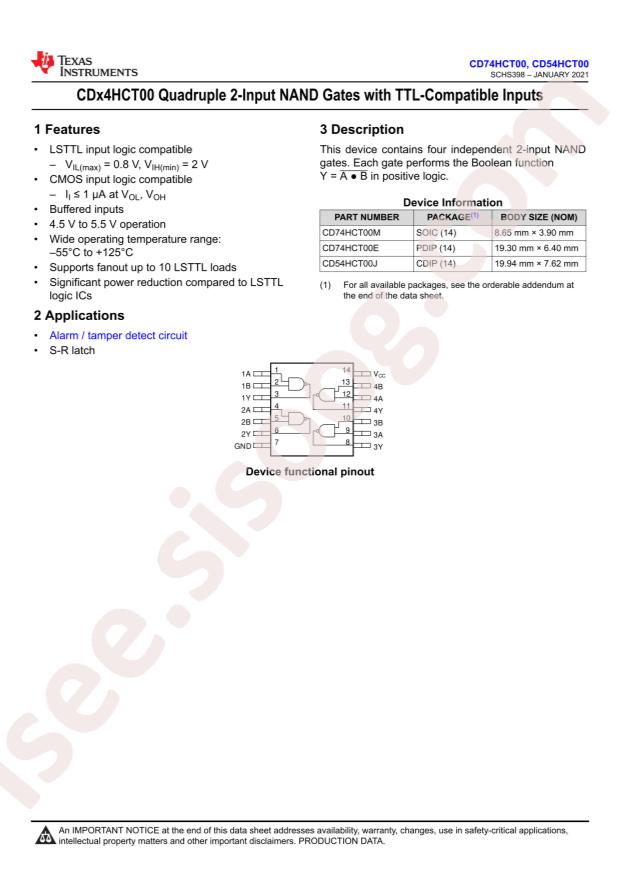

Texas Instruments CD74HCT00E
-
Sink Current:
4mA
-
Source Current:
4mA
-
Supply Voltage:
4.5V~5.5V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
4
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
-55°C~+125°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
20ns@4.5V,50pF
-
Quiescent Current (Max):
2uA
-
Package:
PDIP-14
-
Manufacturer:
Texas Instruments
-
Mounting Type:
Through Hole
-
Logic Level - Low:
0.8V
-
Current - Quiescent (Max):
2µA
-
Voltage - Supply:
4.5V ~ 5.5V
-
Number of Circuits:
4
-
Packaging:
Tube
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Logic Level - High:
2V
-
Part Status:
Active
-
Current - Output High, Low:
4mA, 4mA
-
Features:
-
-
Base Part Number:
74HCT00
-
Supplier Device Package:
14-PDIP
-
Number of Inputs:
2
-
Logic Type:
NAND Gate
-
Max Propagation Delay @ V, Max CL:
20ns @ 4.5V, 50pF
-
detail:
NAND Gate IC 4 Channel 14-PDIP
