دیتاشیت STD7NK40ZT4

ST(D,P)7NK40Z(-1,FP)

مشخصات دیتاشیت

نام دیتاشیت ST(D,P)7NK40Z(-1,FP)
حجم فایل 649.296 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت ST(D,P)7NK40Z(-1,FP)

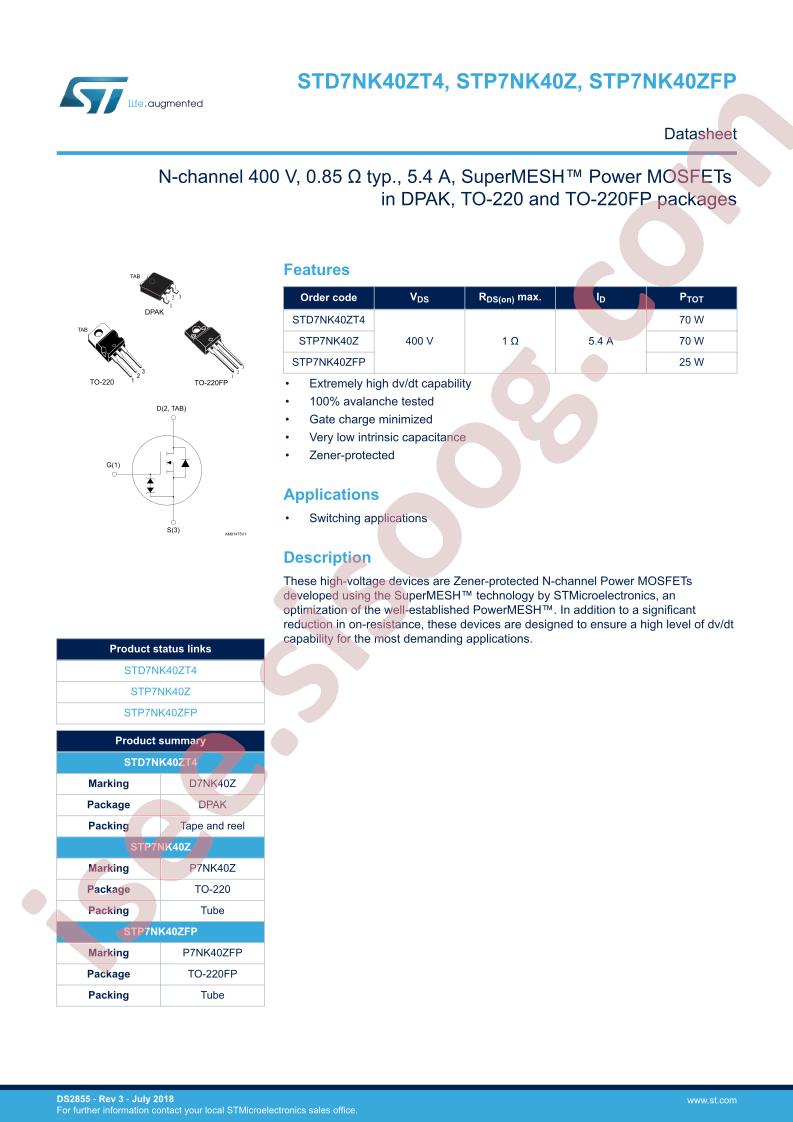

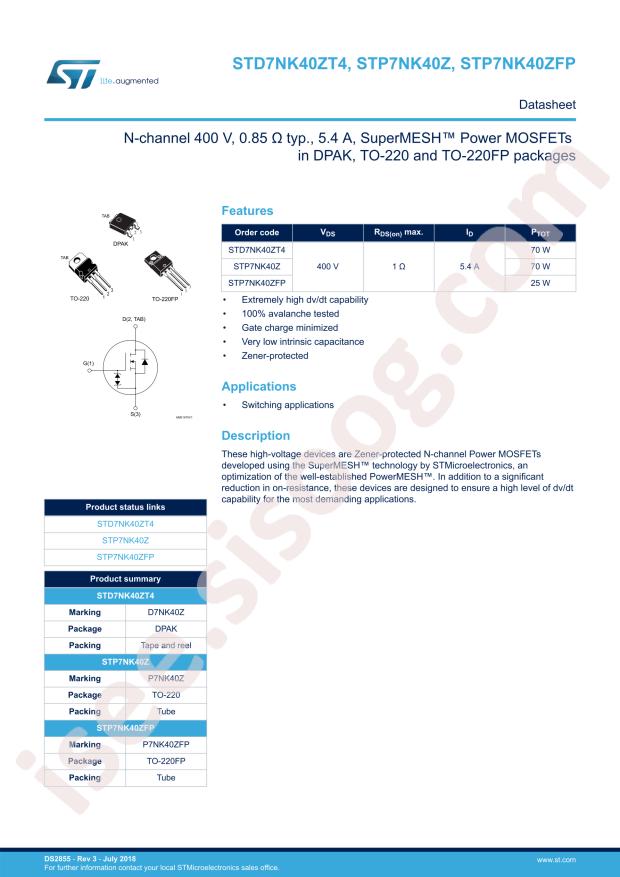

ST(D,P)7NK40Z(-1,FP) Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STD7NK40ZT4
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 70W
  • Total Gate Charge (Qg@Vgs): 19nC@0~10V
  • Drain Source Voltage (Vdss): 400V
  • Input Capacitance (Ciss@Vds): 535pF@25V
  • Continuous Drain Current (Id): 5.4A
  • Gate Threshold Voltage (Vgs(th)@Id): 3.75V@50uA
  • Reverse Transfer Capacitance (Crss@Vds): 18pF@25V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 850mΩ@10V,2.7A
  • Package: TO-252-3(DPAK)
  • Manufacturer: STMicroelectronics
  • Series: SuperMESH™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 400V
  • Current - Continuous Drain (Id) @ 25°C: 5.4A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1Ohm @ 2.7A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 50µA
  • Gate Charge (Qg) (Max) @ Vgs: 26nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 535pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 70W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: STD7
  • detail: N-Channel 400V 5.4A (Tc) 70W (Tc) Surface Mount DPAK
