دیتاشیت CD74HC147E

CD54,74HC(T)147

مشخصات دیتاشیت

نام دیتاشیت CD54,74HC(T)147
حجم فایل 787.643 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

دانلود دیتاشیت CD54,74HC(T)147

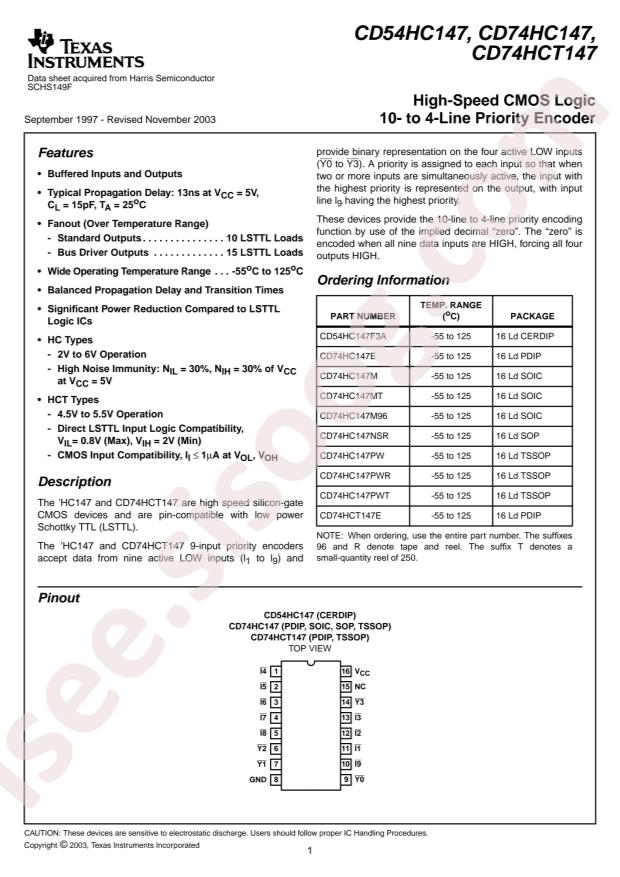

CD54,74HC(T)147 Datasheet

مشخصات

  • RoHS: true
  • Type: Priority Encoders
  • Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
  • Datasheet: Texas Instruments CD74HC147E
  • Sink Current: 5.2mA
  • Source Current: 5.2mA
  • Supply Voltage: 2V~6V
  • Operating temperature: -55°C~+125°C
  • Voltage Supply Source: Single supply
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Independent Circuits: 1
  • Voltage - Supply: 2V ~ 6V
  • Circuit: 1 x 10:4
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Part Status: Active
  • Current - Output High, Low: 5.2mA, 5.2mA
  • Series: 74HC
  • Supplier Device Package: 16-PDIP
  • Base Part Number: 74HC147
  • detail: Priority Encoder 1 x 10:4 16-PDIP
