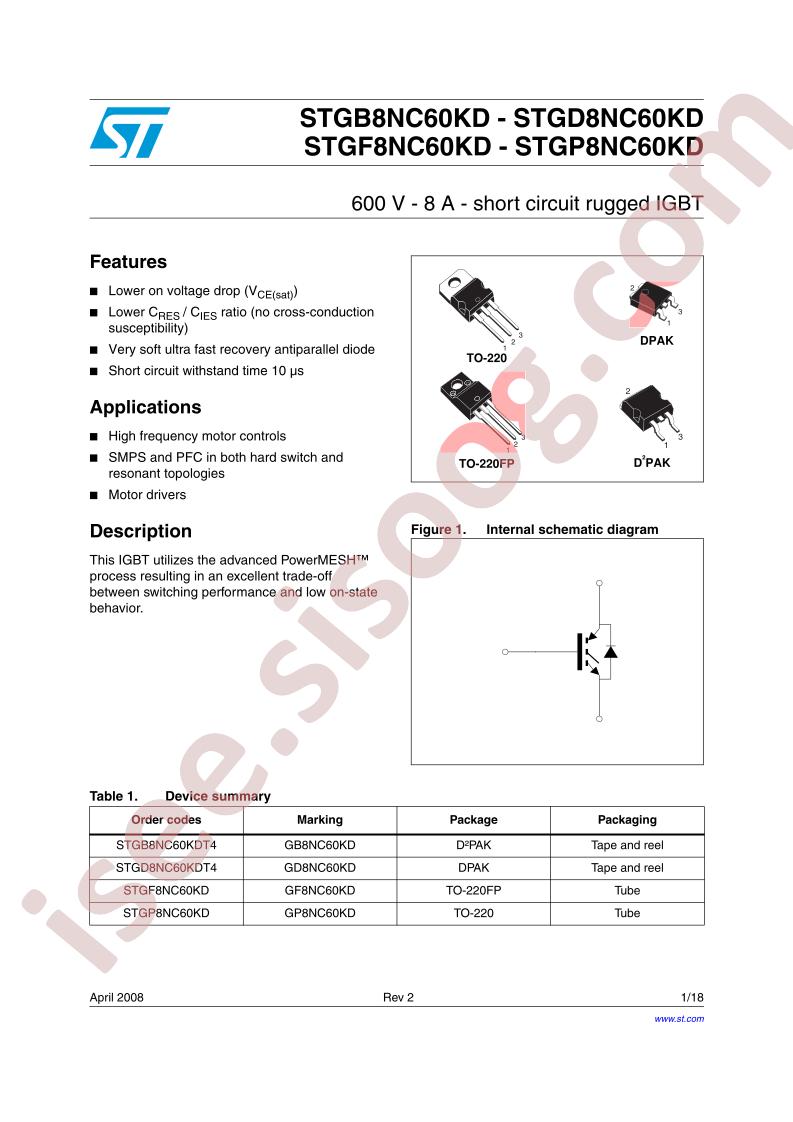

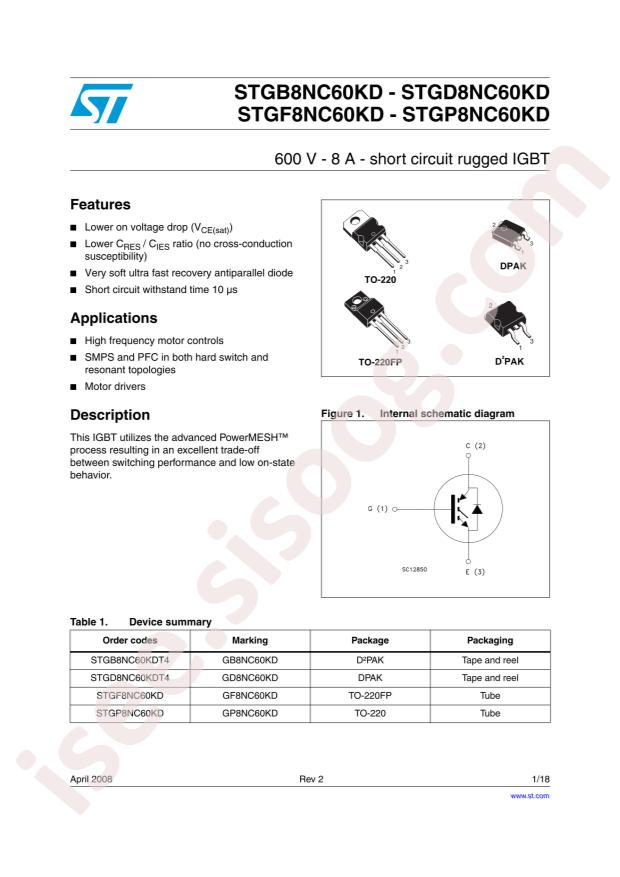

دیتاشیت STGD8NC60KDT4
مشخصات دیتاشیت
| نام دیتاشیت |
STGx8NC60KD
|
| حجم فایل |
568.506
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
18
|
مشخصات
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
STMicroelectronics STGD8NC60KDT4
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
15A
-
Power Dissipation (Pd):
62W
-
Turn?on Delay Time (Td(on)):
17ns
-
Input Capacitance (Cies@Vce):
-
-
Turn?on Switching Loss (Eon):
0.055mJ
-
Total Gate Charge (Qg@Ic,Vge):
19nC
-
Turn?off Delay Time (Td(off)):
72ns
-
Pulsed Collector Current (Icm):
30A
-
Turn?off Switching Loss (Eoff):
0.085mJ
-
Diode Reverse Recovery Time (Trr):
23.5ns
-
Collector-Emitter Breakdown Voltage (Vces):
600V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2.75V@15V,3A
-
Package:
TO-252
-
Manufacturer:
STMicroelectronics
-
Series:
PowerMESH™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
15A
-
Current - Collector Pulsed (Icm):
30A
-
Vce(on) (Max) @ Vge, Ic:
2.75V @ 15V, 3A
-
Power - Max:
62W
-
Switching Energy:
55µJ (on), 85µJ (off)
-
Input Type:
Standard
-
Gate Charge:
19nC
-
Td (on/off) @ 25°C:
17ns/72ns
-
Test Condition:
390V, 3A, 10Ohm, 15V
-
Reverse Recovery Time (trr):
23.5ns
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Supplier Device Package:
DPAK
-
Base Part Number:
STGD8
-
detail:
IGBT 600V 15A 62W Surface Mount DPAK
