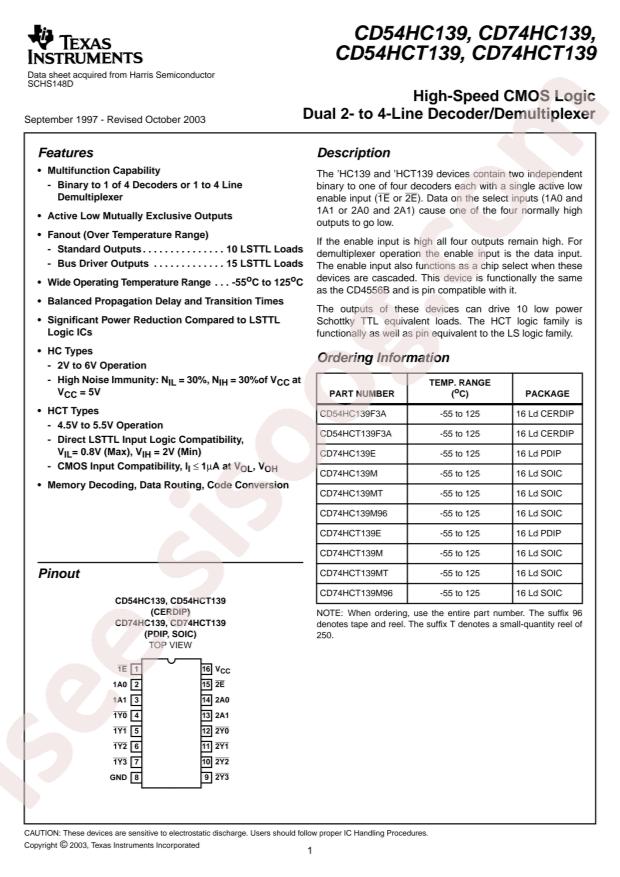

دیتاشیت CD74HC139E
مشخصات دیتاشیت
| نام دیتاشیت | CD54,74HC(T)139 |
|---|---|
| حجم فایل | 492.338 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 14 |

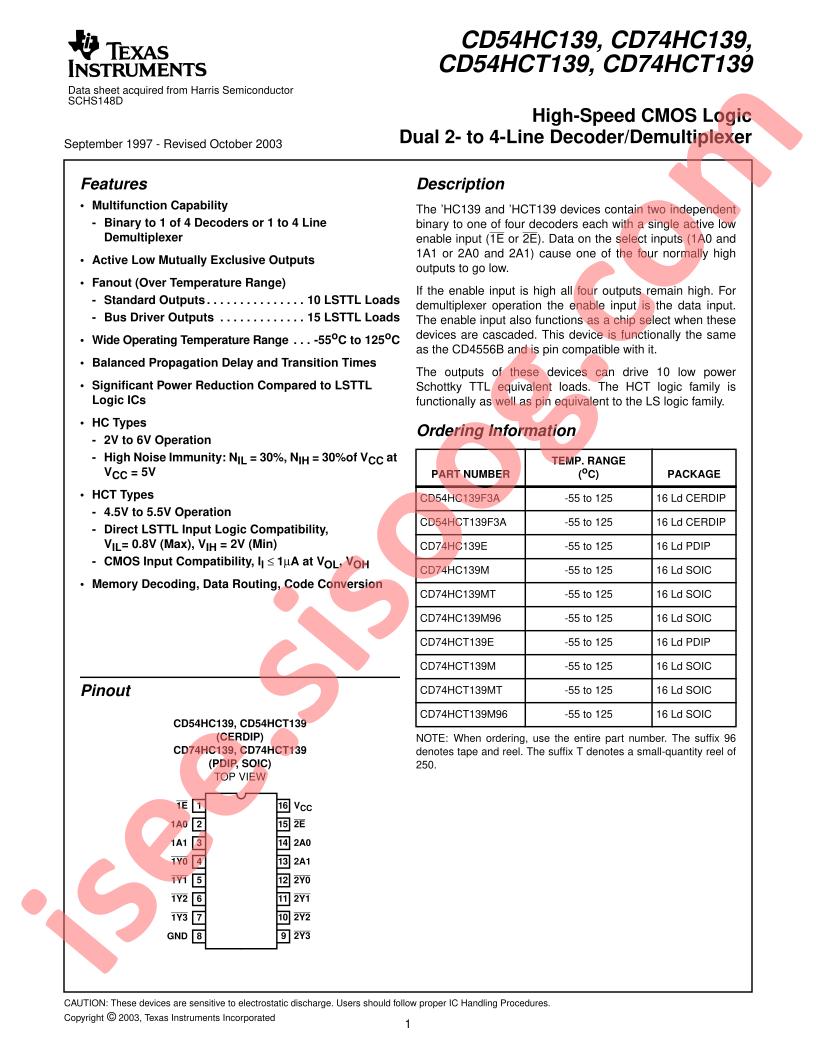

دانلود دیتاشیت CD54,74HC(T)139 |
CD54,74HC(T)139 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: Decoder/Demultiplexers
- Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
- Datasheet: Texas Instruments CD74HC139E
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Supply Voltage: 2V~6V
- Operating temperature: -55°C~+125°C
- Voltage Supply Source: Single supply
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Independent Circuits: 2
- Voltage - Supply: 2V ~ 6V
- Circuit: 1 x 2:4
- Mounting Type: Through Hole
- Packaging: Tube
- Package / Case: 16-DIP (0.300", 7.62mm)
- Part Status: Active
- Current - Output High, Low: 5.2mA, 5.2mA
- Series: 74HC
- Supplier Device Package: 16-PDIP
- Base Part Number: 74HC139
- detail: Decoder/Demultiplexer 1 x 2:4 16-PDIP
