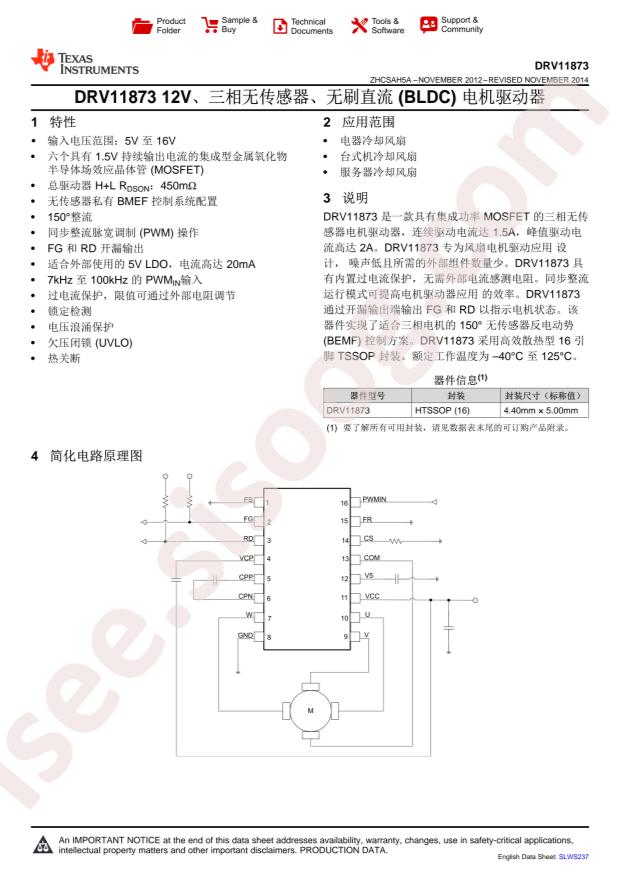

دیتاشیت DRV11873PWPR

DRV11873

مشخصات دیتاشیت

نام دیتاشیت DRV11873
حجم فایل 1632.826 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت DRV11873

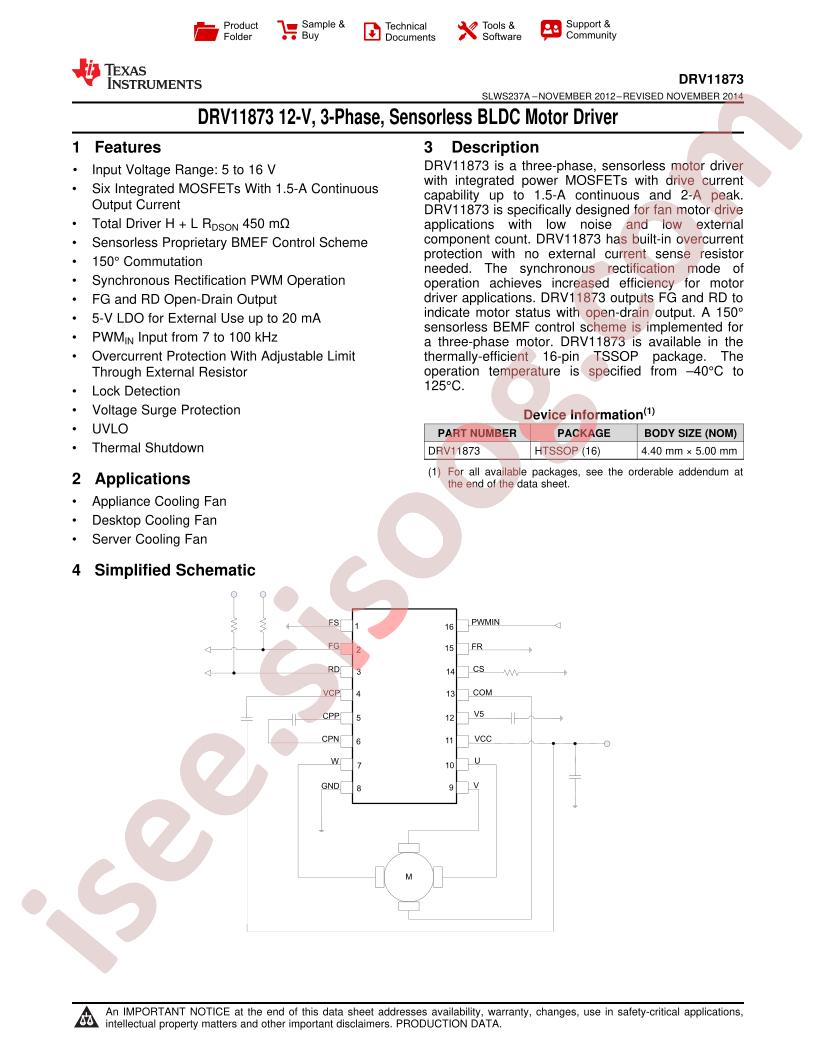

DRV11873 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV11873PWPR
  • Package: TSSOP-16-EP
  • Manufacturer: Texas Instruments
  • Applications: Fan Motor Driver
  • Motor Type - AC, DC: Brushless DC (BLDC)
  • Motor Type - Stepper: -
  • Technology: Power MOSFET
  • Series: -
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Voltage - Supply: 5V ~ 16V
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Packaging: Cut Tape (CT)
  • Interface: PWM
  • Package / Case: 16-PowerTSSOP (0.173", 4.40mm Width)
  • Step Resolution: -
  • Voltage - Load: 0V ~ 17V
  • Part Status: Active
  • Output Configuration: Half Bridge (3)
  • Base Part Number: DRV11873
  • Supplier Device Package: 16-HTSSOP
  • Mounting Type: Surface Mount
  • Current - Output: 1.5A
  • detail: Motor Driver Power MOSFET PWM 16-HTSSOP
