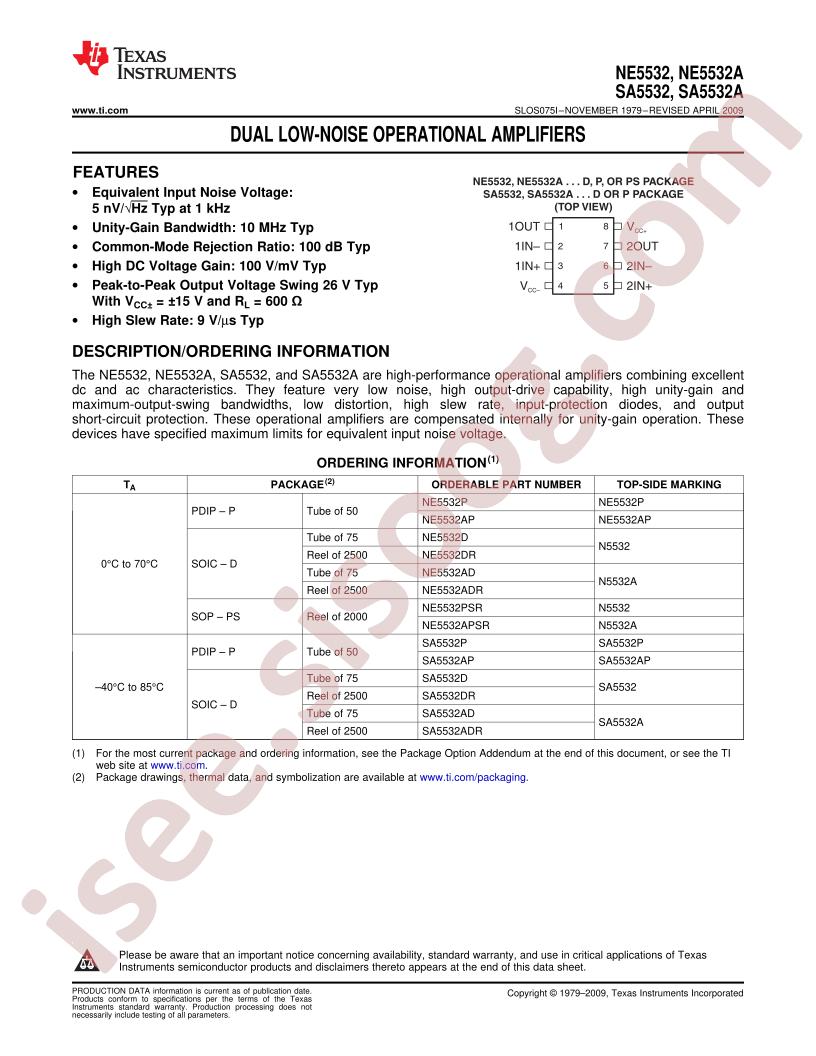

NE5532AP Datasheet
Datasheet specifications
| Datasheet's name | NE5532AP |
|---|---|
| File size | 450.074 KB |
| File type | |
| Number of pages | 13 |
Download Datasheet NE5532AP |
Download Datasheet |
|---|
Other documentations
NE5532(A), SA5532(A) Datasheet 24 pages
Technical specifications
- Current - Output / Channel: 38mA
- Manufacturer: Texas Instruments
- Slew Rate: 9V/µs
- Voltage - Input Offset: 500µV
- Part Status: Active
- Number of Circuits: 2
- Operating Temperature: 0°C ~ 70°C
- Packaging: Tube
- Supplier Device Package: 8-PDIP
- Package / Case: 8-DIP (0.300", 7.62mm)
- Voltage - Supply, Single/Dual (±): ±5V ~ 15V
- Series: -
- Output Type: -
- Base Part Number: NE5532
- Current - Supply: 8mA
- Mounting Type: Through Hole
- Amplifier Type: General Purpose
- Current - Input Bias: 200nA
- Gain Bandwidth Product: 10MHz
- detail: General Purpose Amplifier 2 Circuit 8-PDIP
