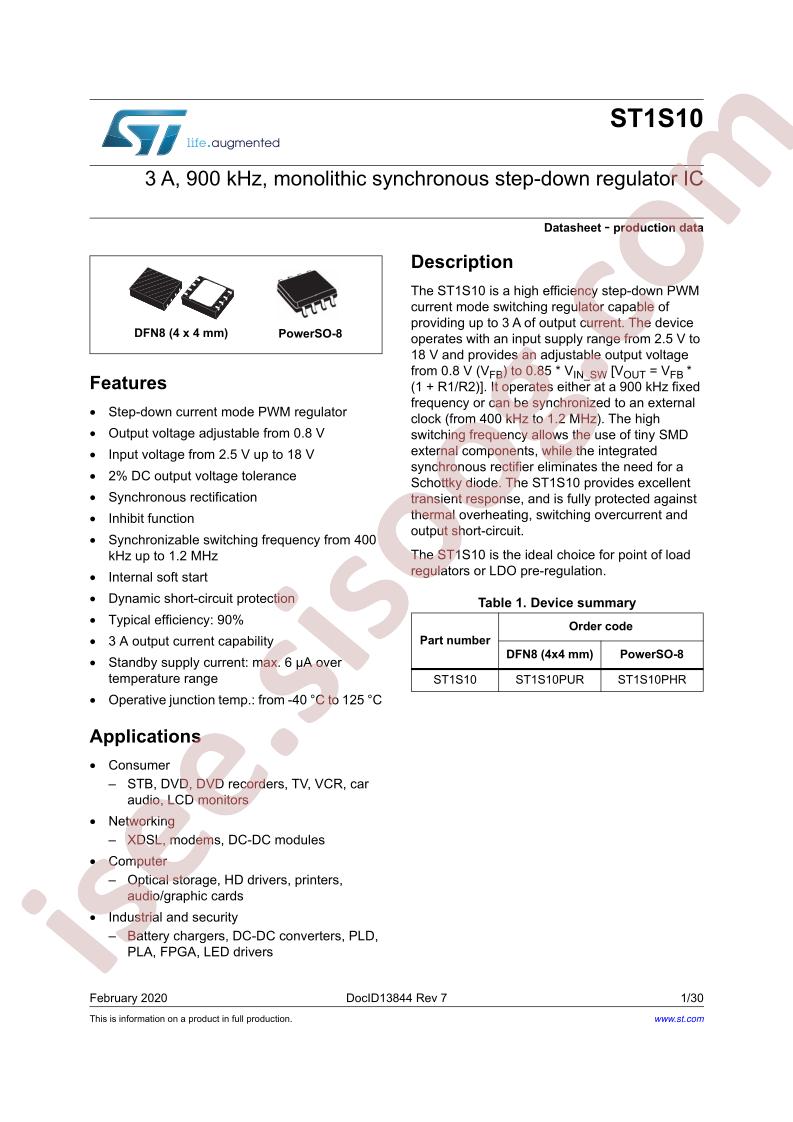

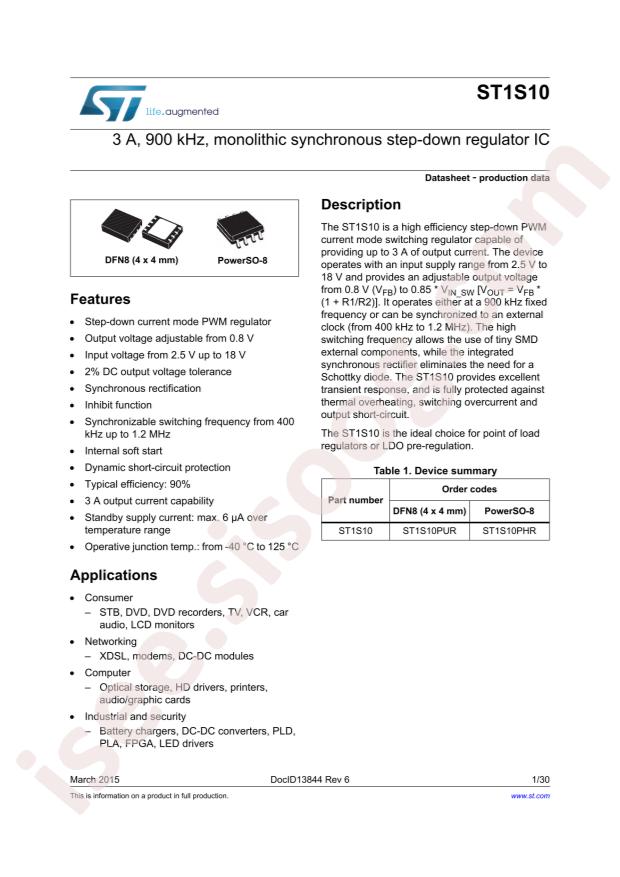

دیتاشیت ST1S10PUR
مشخصات دیتاشیت
| نام دیتاشیت |
ST1S10
|
| حجم فایل |
1950.814
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
30
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
STMicroelectronics ST1S10PUR
-
Output Type:
Adjustable
-
Input Voltage:
2.5V~18V
-
Output Voltage:
0.8V~16.2V
-
Number of Outputs:
1
-
Switching Frequency:
900kHz
-
Output Current (Max):
3A
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
Yes
-
Package:
DFN-8-EP(4x4)
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
2.5V
-
Voltage - Input (Max):
18V
-
Voltage - Output (Min/Fixed):
0.8V
-
Voltage - Output (Max):
16.2V
-
Current - Output:
3A
-
Frequency - Switching:
900kHz
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
8-VDFN Exposed Pad
-
Supplier Device Package:
8-DFN (4x4)
-
Base Part Number:
ST1S10
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-VDFN Exposed Pad
