دیتاشیت TPS7101QDR

TPS71 Datasheet

مشخصات دیتاشیت

نام دیتاشیت TPS71 Datasheet
حجم فایل 1462.263 کیلوبایت
نوع فایل pdf
تعداد صفحات 39

دانلود دیتاشیت TPS71 Datasheet

TPS71 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)

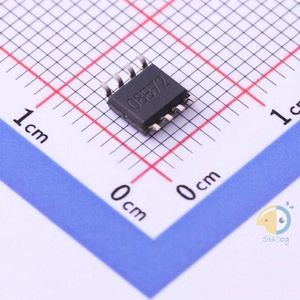

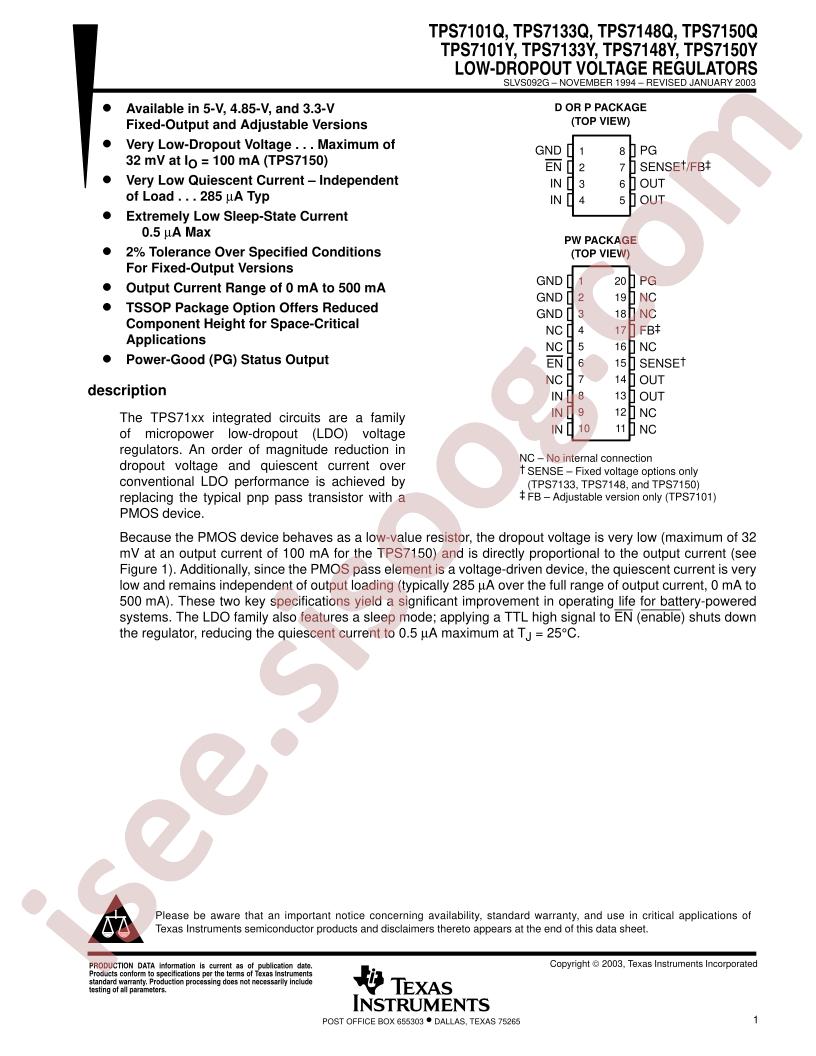

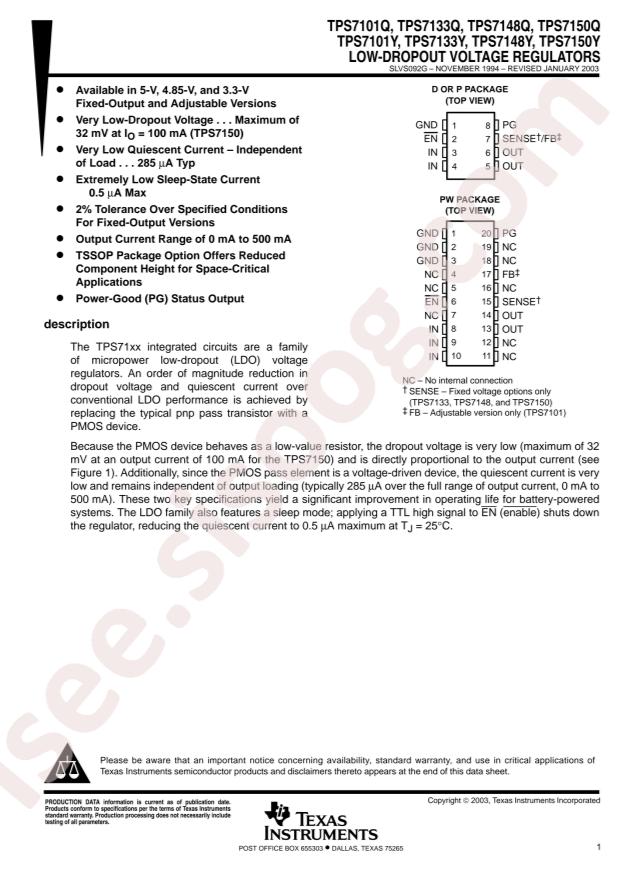

  • Datasheet: Texas Instruments TPS7101QDR
  • Output Type: Adjustable
  • Output Current: 500mA
  • Output Voltage: 1.2V~9.75V
  • Dropout Voltage: 0.4V@(500mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 10V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 350uA
  • Package: SOIC-8
  • Manufacturer: Texas Instruments
  • Current - Supply (Max): 460µA
  • Output Configuration: Positive
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Packaging: Cut Tape (CT)
  • Protection Features: Over Temperature, Reverse Polarity
  • Number of Regulators: 1
  • Part Status: Active
  • Current - Quiescent (Iq): 350µA
  • Supplier Device Package: 8-SOIC
  • Voltage - Input (Max): 10V
  • Voltage - Output (Min/Fixed): 1.2V
  • Mounting Type: Surface Mount
  • PSRR: 59dB ~ 54dB (120Hz)
  • Base Part Number: TPS710
  • Series: -
  • Control Features: Enable, Power Good
  • Voltage - Output (Max): 9.75V
  • Voltage Dropout (Max): 0.4V @ 500mA
  • Current - Output: 500mA
  • detail: Linear Voltage Regulator IC 1 Output 500mA 8-SOIC
