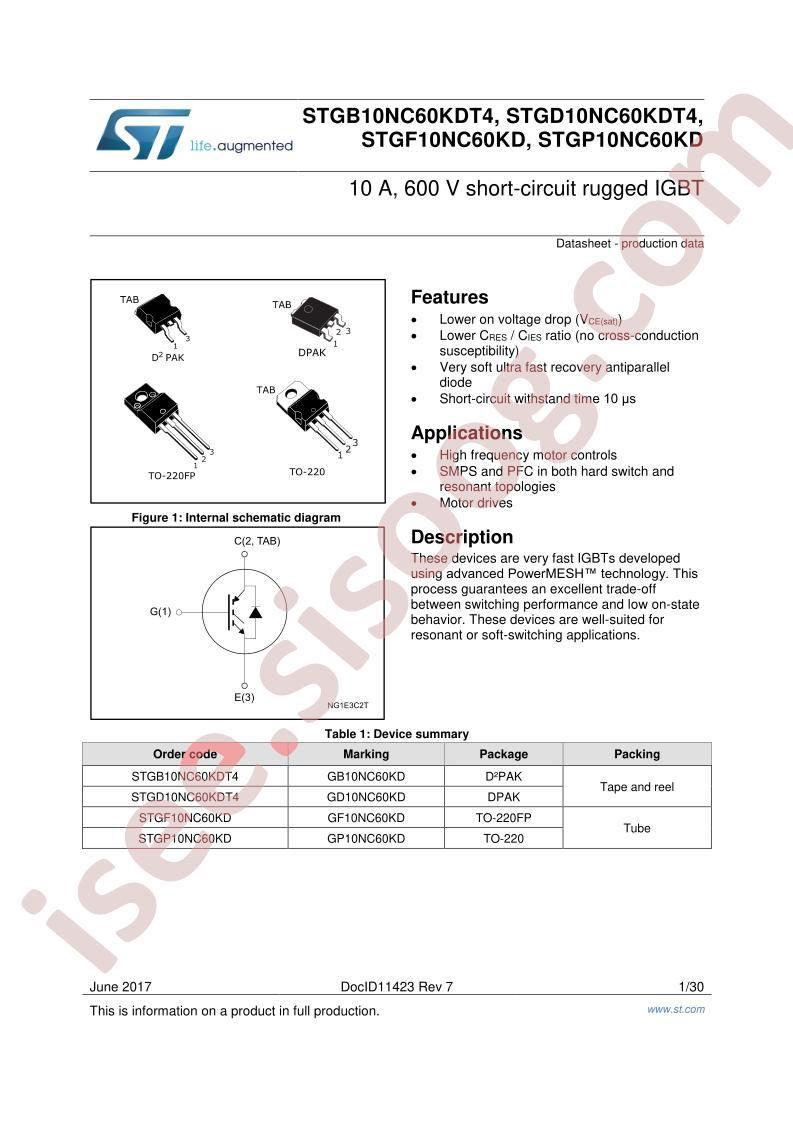

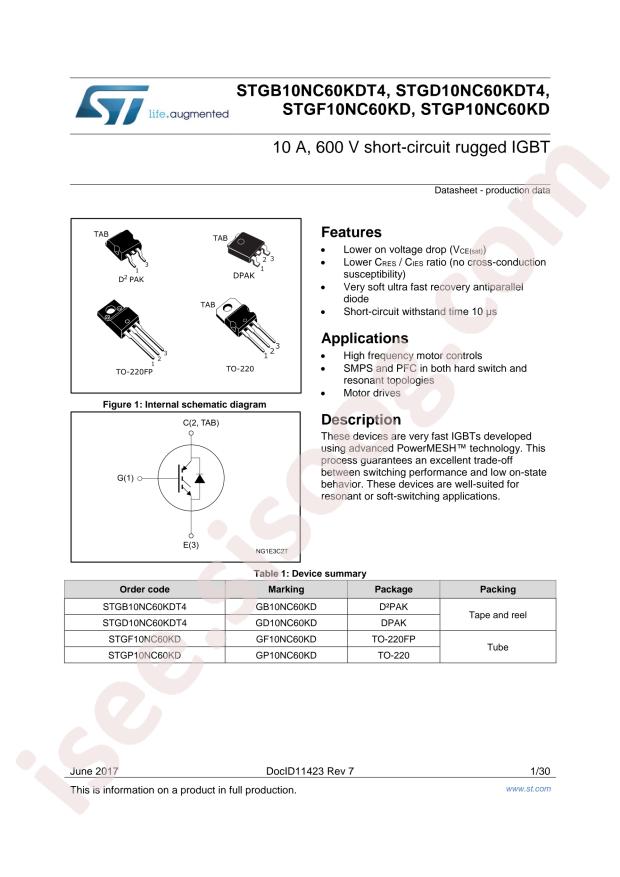

STGF10NC60KD Datasheet

STGF10NC60KD

Datasheet specifications

Datasheet's name STGF10NC60KD
File size 65.745 KB
File type pdf
Number of pages 30

Download Datasheet STGF10NC60KD

Download Datasheet

Other documentations

STGx10NC60KD 30 pages

STGF10NC60KD 20 pages

Technical specifications

  • RoHS: true
  • Type: -
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: STMicroelectronics STGF10NC60KD
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Collector Current (Ic): 9A
  • Power Dissipation (Pd): 25W
  • Turn?on Delay Time (Td(on)): 17ns
  • Input Capacitance (Cies@Vce): -
  • Turn?on Switching Loss (Eon): 0.055mJ
  • Total Gate Charge (Qg@Ic,Vge): 19nC
  • Turn?off Delay Time (Td(off)): 72ns
  • Pulsed Collector Current (Icm): 30A
  • Turn?off Switching Loss (Eoff): 0.085mJ
  • Diode Reverse Recovery Time (Trr): 22ns
  • Collector-Emitter Breakdown Voltage (Vces): 600V
  • Gate-Emitter Threshold Voltage (Vge(th)@Ic): 2.5V@15V,5A
  • Package: TO-220FP-3
  • Manufacturer: STMicroelectronics
  • Series: PowerMESH™
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: -
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 9A
  • Current - Collector Pulsed (Icm): 30A
  • Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 5A
  • Power - Max: 25W
  • Switching Energy: 55µJ (on), 85µJ (off)
  • Input Type: Standard
  • Gate Charge: 19nC
  • Td (on/off) @ 25°C: 17ns/72ns
  • Test Condition: 390V, 5A, 10Ohm, 15V
  • Reverse Recovery Time (trr): 22ns
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3 Full Pack
  • Supplier Device Package: TO-220FP
  • Base Part Number: STGF10
  • detail: IGBT 600V 9A 25W Through Hole TO-220FP
