دیتاشیت STM32L011D4P6
مشخصات دیتاشیت
| نام دیتاشیت | STM32L011x3, STM32L011x4 |
|---|---|
| حجم فایل | 1728.564 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 119 |
دانلود دیتاشیت STM32L011x3, STM32L011x4 |

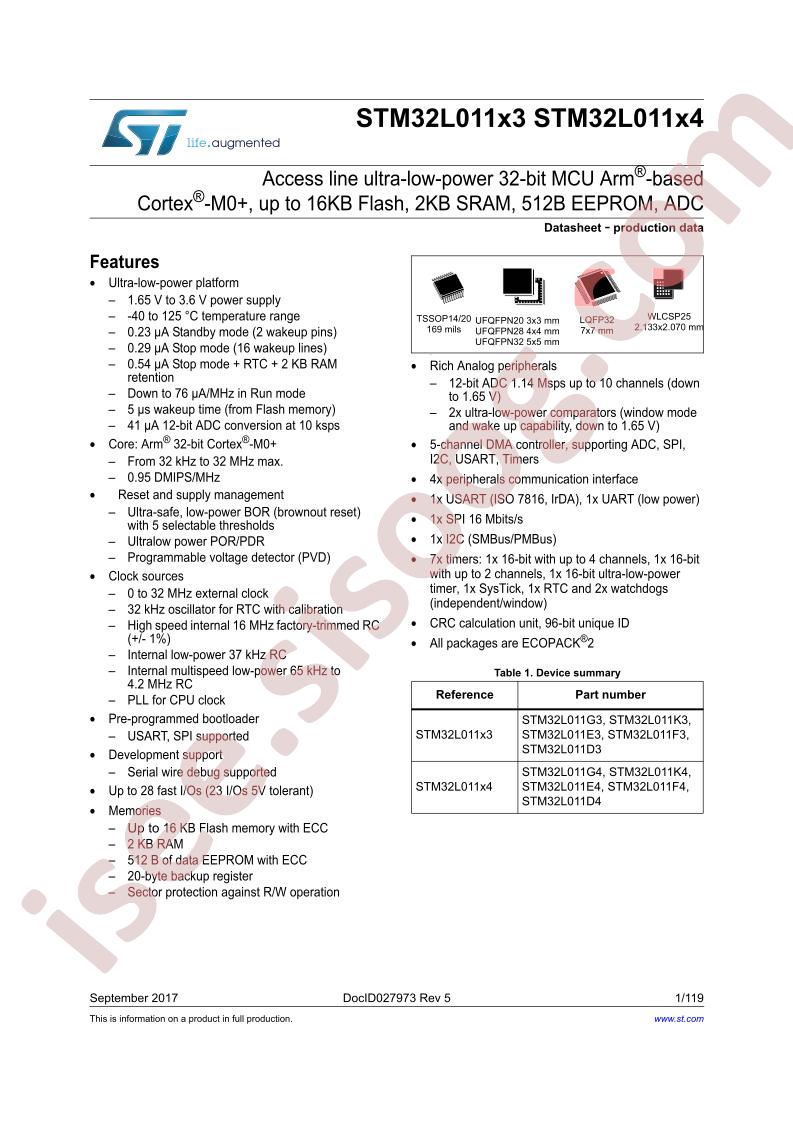

STM32L011x3, STM32L011x4 Datasheet |
|---|
مشخصات
- CAN: -
- I2C: 1
- I2S: -
- SPI: 1
- RoHS: true
- EEPROM: 512Byte
- CPU Core: ARM-MSeries
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 2KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): -
- Datasheet: STMicroelectronics STM32L011D4P6
- PWM (Bit): -
- 8Bit Timer: -
- LCD Module: -
- LED Module: -
- UART/USART: 2
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: Yes
- Application Area: -
- CPU Maximum Speed: 32MHz
- GPIO Ports Number: 11
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: -
- Peripheral/Function: -
- Program Memory Type: -
- Direct Memory Access: -
- Program Storage Size: 16KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~3.6V
- Infrared Data Association: -
- Operating Temperature Range: -
- Secure Digital Input and Output: -
- Package: TSSOP-14
- Manufacturer: STMicroelectronics
- Series: STM32L0
- Packaging: Tube
- Part Status: Active
- Core Processor: ARM® Cortex®-M0+
- Core Size: 32-Bit
- Speed: 32MHz
- Connectivity: I²C, IrDA, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
- Number of I/O: 11
- Program Memory Size: 16KB (16K x 8)
- EEPROM Size: 512 x 8
- Voltage - Supply (Vcc/Vdd): 1.65V ~ 3.6V
- Data Converters: A/D 4x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 14-TSSOP
- Base Part Number: STM32L011
- detail: ARM® Cortex®-M0+ STM32L0 Microcontroller IC 32-Bit 32MHz 16KB (16K x 8) FLASH 14-TSSOP
