دیتاشیت SN74221N
مشخصات دیتاشیت
| نام دیتاشیت | SN54221, SN54LS221, SN74221, SN74LS221 |
|---|---|
| حجم فایل | 1210.639 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |
دانلود دیتاشیت SN54221, SN54LS221, SN74221, SN74LS221 |

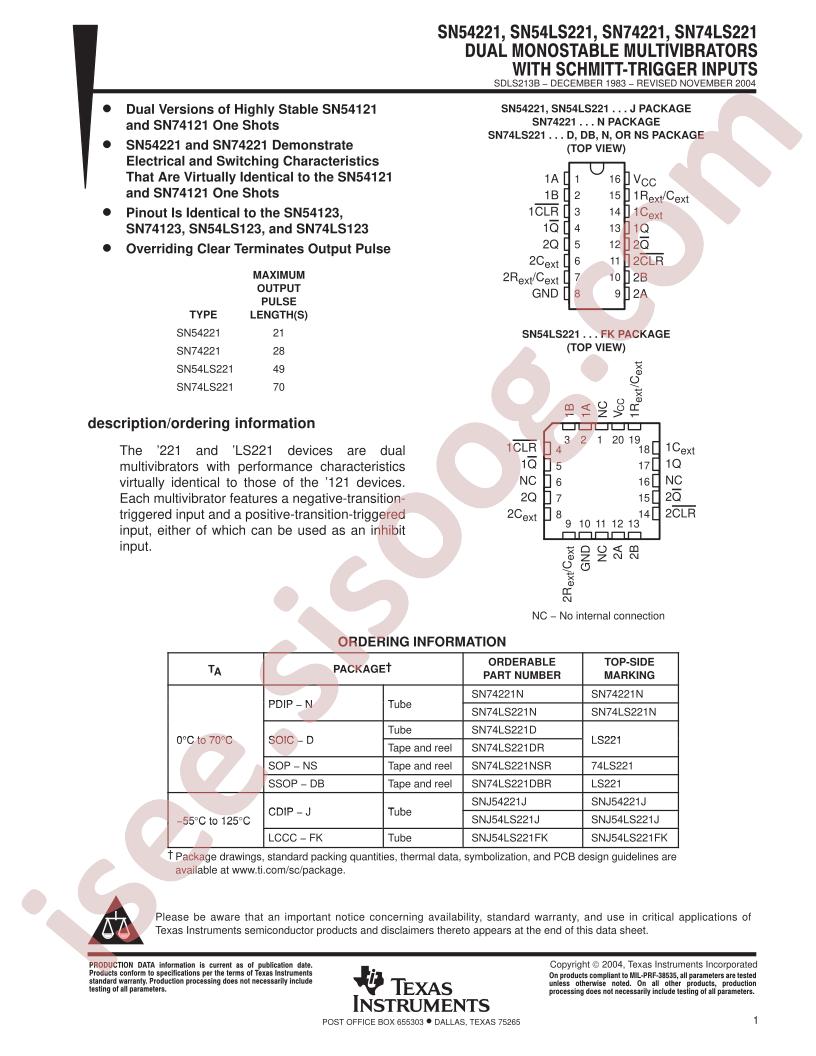

SN54221, SN54LS221, SN74221, SN74LS221 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Monostable Multivibrators
- Datasheet: Texas Instruments SN74221N
- Logic Family: 7400
- Sink Current: 16mA
- Source Current: 800uA
- Supply Voltage: 4.75V~5.25V
- Logic Gate Type: Monostable
- Propagation Delay: 40ns
- Number Of Channels: 2
- OperatingTemperature: 0°C~+70°C
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Independent Circuits: 2
- Logic Type: Monostable
- Part Status: Active
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Packaging: Tube
- Package / Case: 16-DIP (0.300", 7.62mm)
- Current - Output High, Low: 800µA, 16mA
- Series: 7400
- Base Part Number: SN742
- Supplier Device Package: 16-PDIP
- Schmitt Trigger Input: No
- Voltage - Supply: 4.75V ~ 5.25V
- detail: Monostable Multivibrator 40ns 16-PDIP
