دیتاشیت SN74LS348N
مشخصات دیتاشیت
| نام دیتاشیت | SN54LS348, SN74LS348 |
|---|---|
| حجم فایل | 424.865 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 10 |
دانلود دیتاشیت SN54LS348, SN74LS348 |

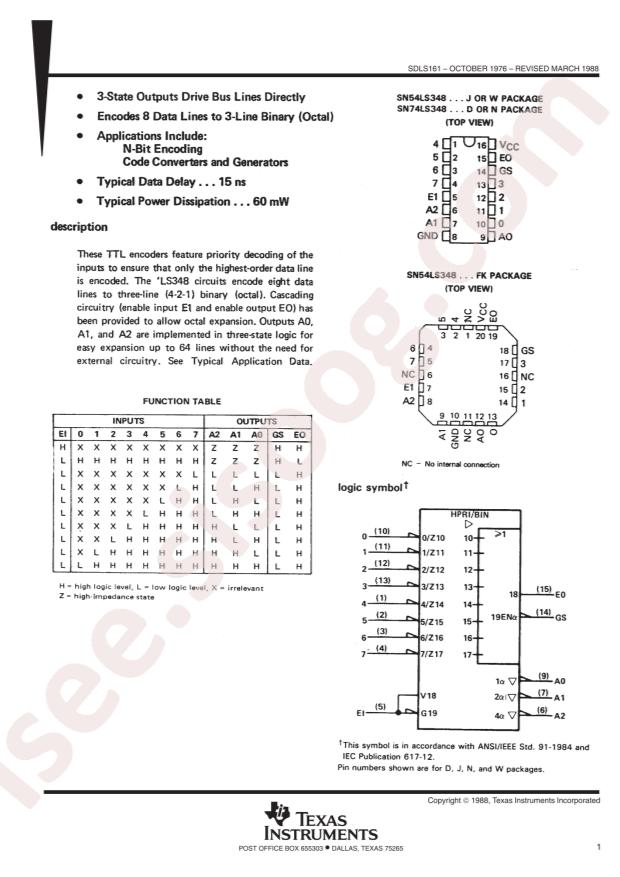

SN54LS348, SN74LS348 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: Priority Encoders
- Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
- Datasheet: Texas Instruments SN74LS348N
- Sink Current: 24mA
- Source Current: 400uA
- Supply Voltage: 4.75V~5.25V
- Operating temperature: 0°C~+70°C
- Voltage Supply Source: Single supply
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Independent Circuits: 1
- Voltage - Supply: 4.75V ~ 5.25V
- Circuit: 1 x 8:3
- Mounting Type: Through Hole
- Packaging: Tube
- Package / Case: 16-DIP (0.300", 7.62mm)
- Part Status: Active
- Current - Output High, Low: 400µA, 24mA
- Series: 74LS
- Supplier Device Package: 16-PDIP
- Base Part Number: SN74LS34
- detail: Priority Encoder 1 x 8:3 16-PDIP
