LT1014DN Datasheet

LT1014DN

Datasheet specifications

Datasheet's name LT1014DN
File size 88.345 KB
File type pdf
Number of pages 38

Download Datasheet LT1014DN

Download Datasheet

Other documentations

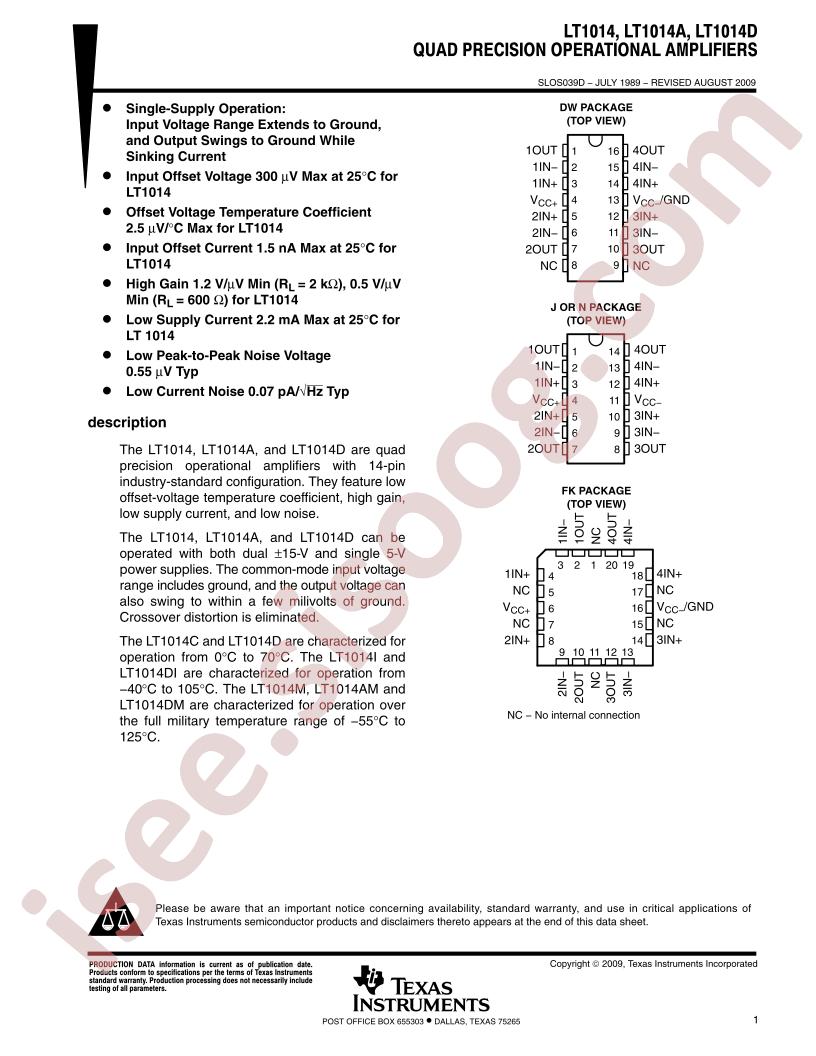

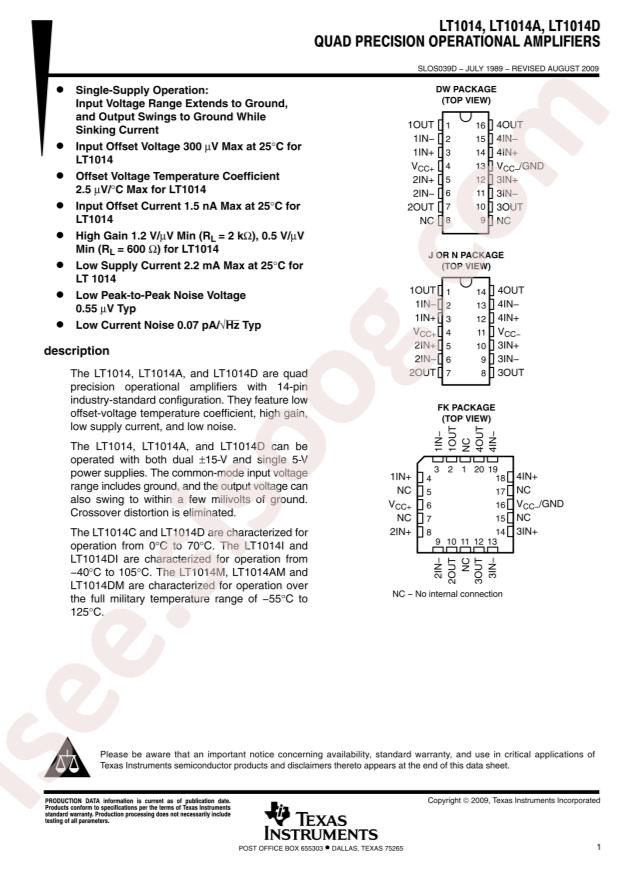

LT1014(A,D) 38 pages

Technical specifications

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Operational Amplifier
  • Datasheet: Texas Instruments LT1014DN
  • -3db Bandwidth: -
  • Output Current: 25mA
  • Number of Circuits: 4
  • Operating Temperature: 0°C~+70°C
  • Current - Input Bias(Ib): 12nA
  • Gain Bandwidth Product(GBP): 1MHz
  • Package: PDIP-14
  • Manufacturer: Texas Instruments
  • Slew Rate: 0.4V/µs
  • Voltage - Input Offset: 60µV
  • Part Status: Active
  • Packaging: Tube
  • Supplier Device Package: 14-PDIP
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Voltage - Supply, Single/Dual (±): 4V ~ 44V, ±2V ~ 22V
  • Series: -
  • Output Type: -
  • Base Part Number: LT1014
  • Current - Supply: 350µA
  • Mounting Type: Through Hole
  • Amplifier Type: General Purpose
  • Current - Input Bias: 12nA
  • Gain Bandwidth Product: 1MHz
