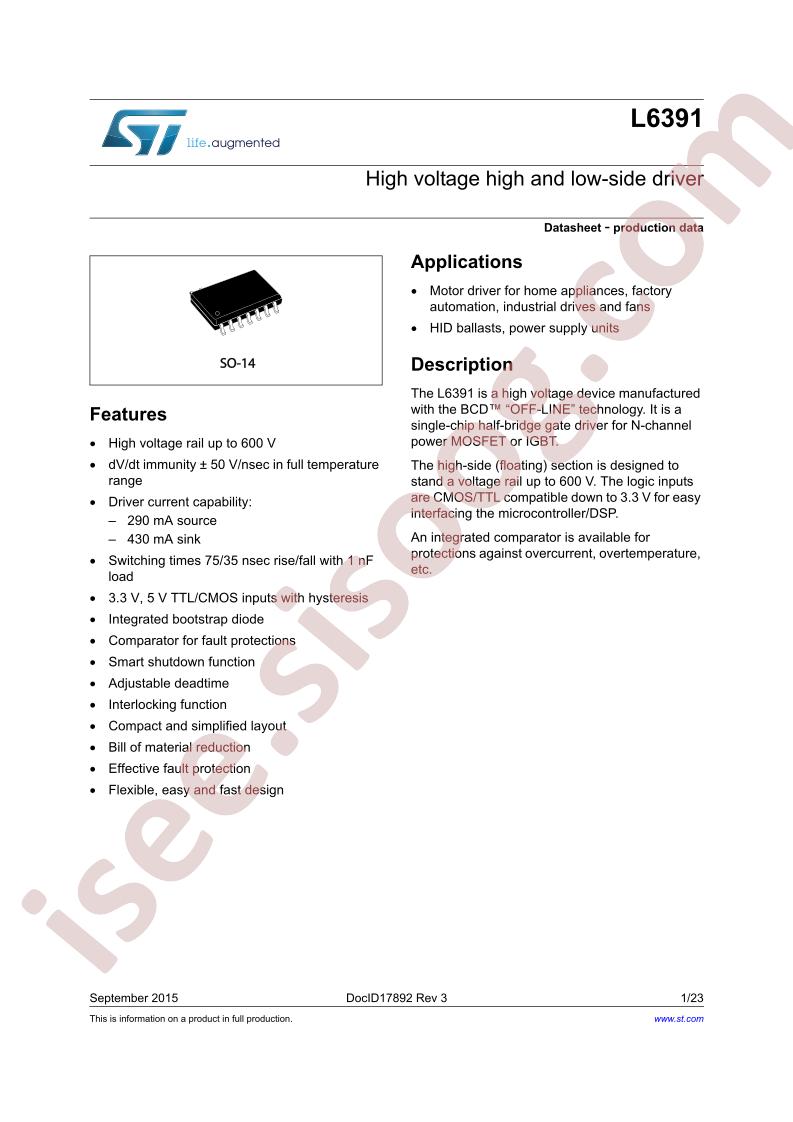

L6391 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
L6391
|
|
حجم فایل
|
771.427
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
23
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Driven Configuration:
Half-Bridge
-
Channel Type:
Independent
-
Number of Drivers:
2
-
Gate Type:
IGBT, N-Channel MOSFET
-
Voltage - Supply:
12.5V ~ 20V
-
Logic Voltage - VIL, VIH:
1.1V, 1.9V
-
Current - Peak Output (Source, Sink):
290mA, 430mA
-
Input Type:
Non-Inverting
-
High Side Voltage - Max (Bootstrap):
600V
-
Rise / Fall Time (Typ):
75ns, 35ns
-
Operating Temperature:
-40°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
14-SO
-
Base Part Number:
L6391
-
detail:
Half-Bridge Gate Driver IC Non-Inverting 14-SO
