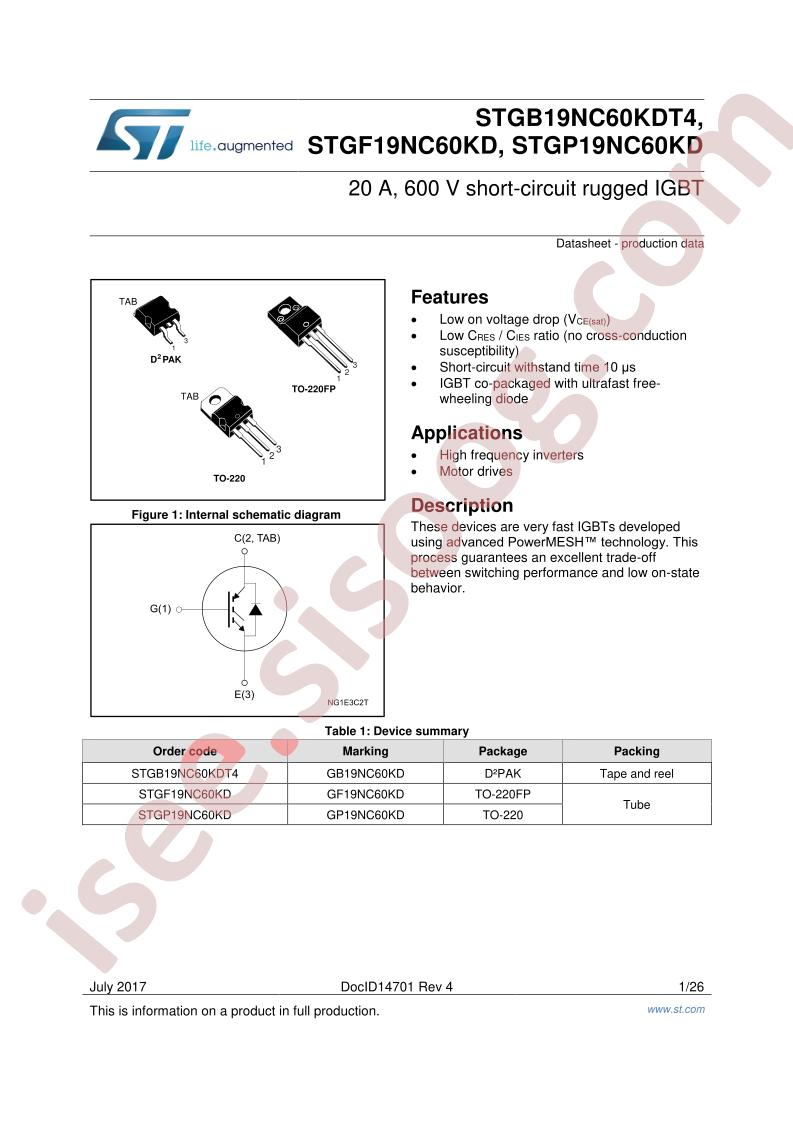

دیتاشیت STGP19NC60KD
مشخصات دیتاشیت
| نام دیتاشیت |
STGx19NC60KD
|
| حجم فایل |
1361.963
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
26
|
مشخصات
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
STMicroelectronics STGP19NC60KD
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
35A
-
Power Dissipation (Pd):
125W
-
Input Capacitance (Cies@Vce):
-
-
Turn?on Switching Loss (Eon):
0.165mJ
-
Pulsed Collector Current (Icm):
75A
-
Turn?off Switching Loss (Eoff):
0.255mJ
-
Diode Reverse Recovery Time (Trr):
31ns
-
Collector-Emitter Breakdown Voltage (Vces):
600V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
PowerMESH™
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
35A
-
Current - Collector Pulsed (Icm):
75A
-
Vce(on) (Max) @ Vge, Ic:
2.75V @ 15V, 12A
-
Power - Max:
125W
-
Switching Energy:
165µJ (on), 255µJ (off)
-
Input Type:
Standard
-
Gate Charge:
55nC
-
Td (on/off) @ 25°C:
30ns/105ns
-
Test Condition:
480V, 12A, 10Ohm, 15V
-
Reverse Recovery Time (trr):
31ns
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220
-
Base Part Number:
STGP19
-
detail:
IGBT 600V 35A 125W Through Hole TO-220
