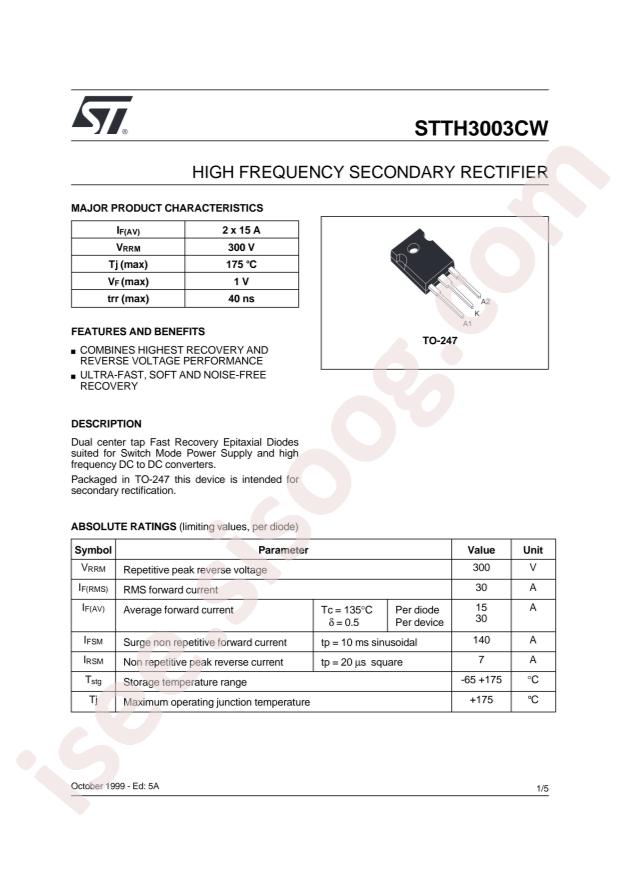

دیتاشیت STTH3003CW
مشخصات دیتاشیت
| نام دیتاشیت |
STTH3003CW
|
| حجم فایل |
55.072
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Diodes - General Purpose
-
Datasheet:
STMicroelectronics STTH3003CW
-
Diode Configuration:
-
-
Reverse Voltage (Vr):
300V
-
Forward Voltage (Vf@If):
1.25V@15A
-
Reverse Leakage Current:
40uA@300V
-
Average Rectified Current (Io):
15A
-
Package:
TO-247
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
300V
-
Current - Average Rectified (Io) (per Diode):
15A
-
Voltage - Forward (Vf) (Max) @ If:
1.25V @ 15A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Reverse Recovery Time (trr):
40ns
-
Current - Reverse Leakage @ Vr:
40µA @ 300V
-
Operating Temperature - Junction:
175°C (Max)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
STTH30
