دیتاشیت STD5N60M2
مشخصات دیتاشیت
| نام دیتاشیت |
STx5N60M2
|
| حجم فایل |
553.684
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
27
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:

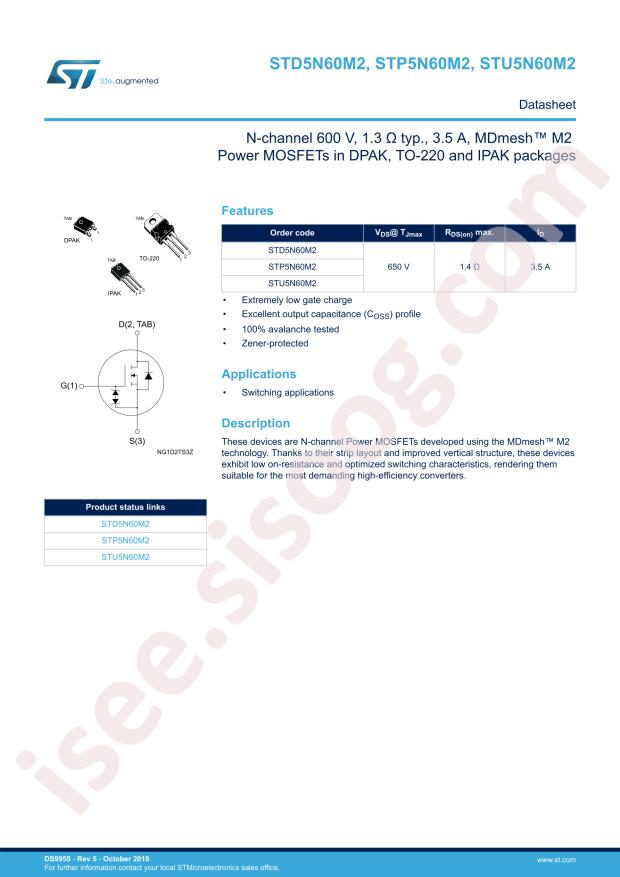

STMicroelectronics STD5N60M2
-
Power Dissipation (Pd):
45W
-
Total Gate Charge (Qg@Vgs):
8.5nC@10V
-
Drain Source Voltage (Vdss):
600V
-
Input Capacitance (Ciss@Vds):
211pF@100V
-
Continuous Drain Current (Id):
3.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.4Ω@10V,1.7A
-
Package:
TO-252
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ II Plus
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
3.5A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
1.4Ohm @ 1.7A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
8.5nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
211pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
45W (Tc)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
DPAK
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
STD5N
