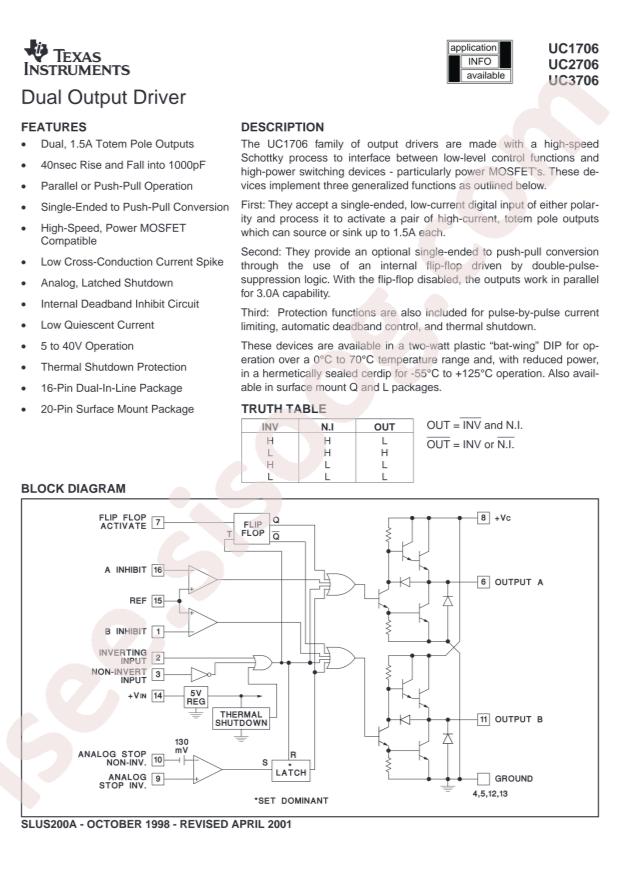

UC3706N دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UC3706N |
|---|---|
| حجم فایل | 84.465 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 11 |
دانلود دیتاشیت UC3706N |
دانلود دیتاشیت |
|---|
سایر مستندات
UC1706, 2706, 3706 10 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Texas Instruments UC3706N
- Fall Time: 30ns
- Load Type: MOSFET
- Rise Time: 40ns
- Supply Voltage: 5V~40V
- Number of Drivers: 2
- Driven Configuration: Low Side
- Operating Temperature: 0°C~+70°C@(Ta)
- Peak Output Current(sink): 1.5A
- Peak Output Current(source): 1.5A
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Channel Type: Independent
- Input Type: Inverting, Non-Inverting
- Voltage - Supply: 5V ~ 40V
- Series: -
- Mounting Type: Through Hole
- Packaging: Tube
- Package / Case: 16-DIP (0.300", 7.62mm)
- Part Status: Active
- Logic Voltage - VIL, VIH: 0.8V, 2.2V
- Rise / Fall Time (Typ): 40ns, 30ns
- Gate Type: N-Channel MOSFET
- Base Part Number: UC370
- Supplier Device Package: 16-PDIP
- Current - Peak Output (Source, Sink): 1.5A, 1.5A
- detail: Low-Side Gate Driver IC Inverting, Non-Inverting 16-PDIP
