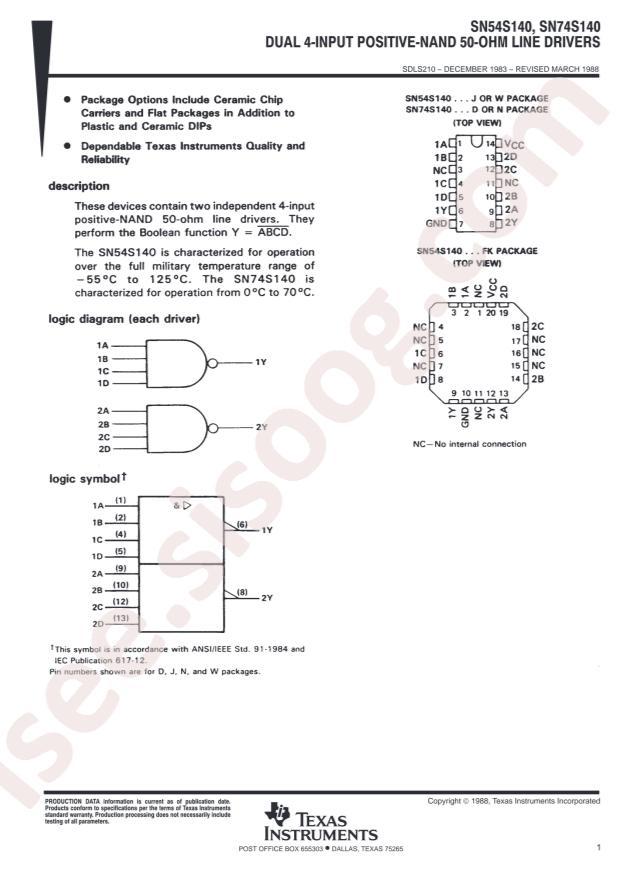

دیتاشیت SN74S140N

SN54S140, SN74S140

مشخصات دیتاشیت

نام دیتاشیت SN54S140, SN74S140
حجم فایل 988.849 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت SN54S140, SN74S140

SN54S140, SN74S140 Datasheet

مشخصات

  • RoHS: true
  • Series: 74S
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74S140N
  • Sink Current: 60mA
  • Source Current: 40mA
  • Supply Voltage: 4.75V~5.25V
  • Logic Gate Type: NAND Gates
  • Number of Channels: 2
  • Low Level Range (VIL): 0.8V
  • Operating Temperature: 0°C~+70°C
  • High Level Range (VIH): 2V
  • Propagation Delay Time: 6ns@5V,150pF
  • Package: PDIP-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Logic Level - Low: 0.8V
  • Voltage - Supply: 4.75V ~ 5.25V
  • Number of Circuits: 2
  • Packaging: Tube
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Logic Level - High: 2V
  • Part Status: Active
  • Current - Output High, Low: 40mA, 60mA
  • Features: -
  • Base Part Number: SN74S1
  • Supplier Device Package: 14-PDIP
  • Number of Inputs: 4
  • Logic Type: NAND Gate
  • Max Propagation Delay @ V, Max CL: 6ns @ 5V, 150pF
  • detail: NAND Gate IC 2 Channel 14-PDIP
