دیتاشیت SN74AS1000AN
مشخصات دیتاشیت
| نام دیتاشیت | SN54AS1000A, SN74AS1000A |
|---|---|
| حجم فایل | 1142.424 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
دانلود دیتاشیت SN54AS1000A, SN74AS1000A |

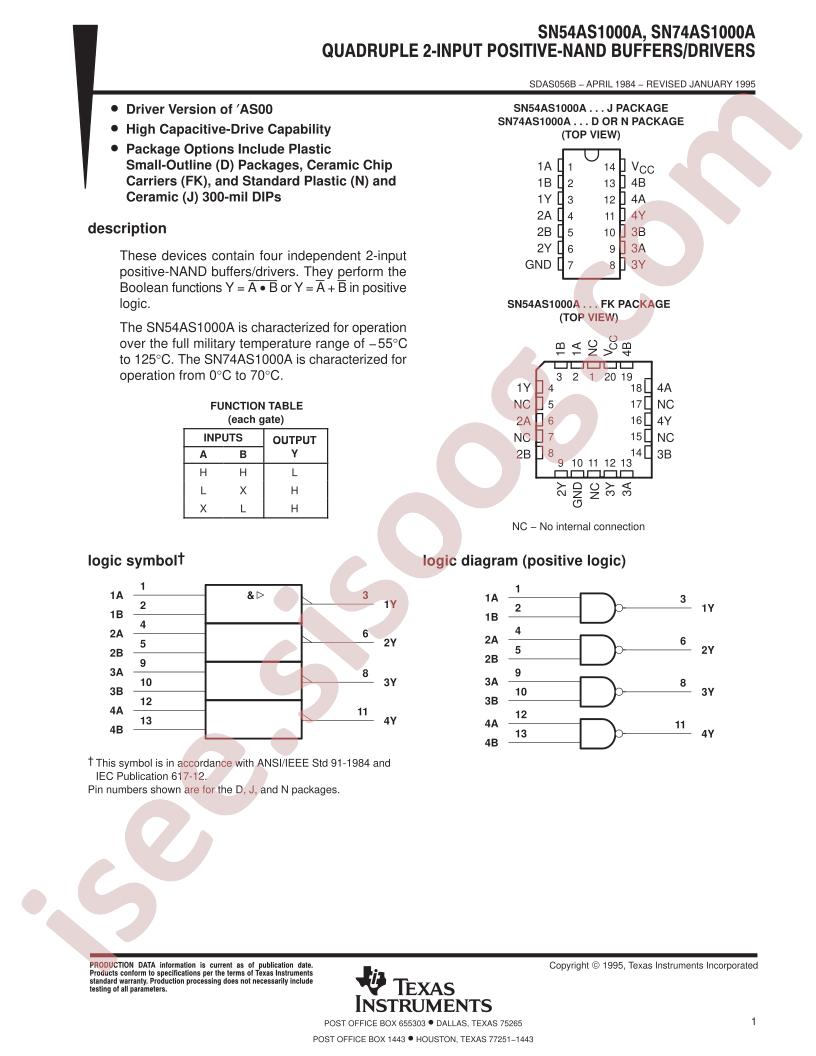

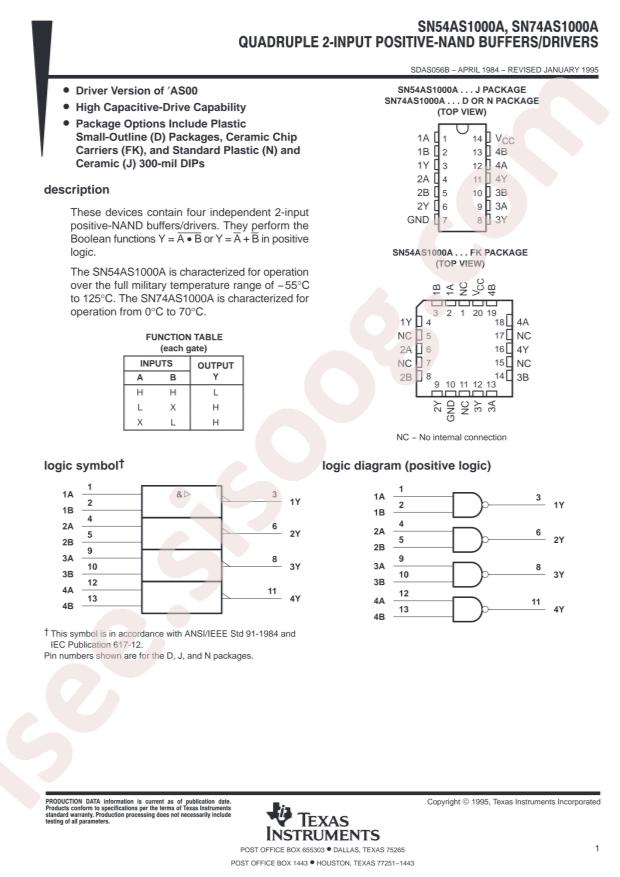

SN54AS1000A, SN74AS1000A Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74AS1000AN
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Mounting Type: Through Hole
- Logic Level - Low: 0.8V
- Current - Quiescent (Max): 3.5mA
- Voltage - Supply: 4.5V ~ 5.5V
- Series: 74AS
- Number of Circuits: 4
- Operating Temperature: 0°C ~ 70°C
- Packaging: Tube
- Package / Case: 14-DIP (0.300", 7.62mm)
- Logic Level - High: 2V
- Part Status: Active
- Current - Output High, Low: 48mA, 48mA
- Features: -
- Base Part Number: SN74AS1
- Supplier Device Package: 14-PDIP
- Number of Inputs: 2
- Logic Type: NAND Gate
- Max Propagation Delay @ V, Max CL: 4ns @ 5V, 50pF
- detail: NAND Gate IC 4 Channel 14-PDIP
