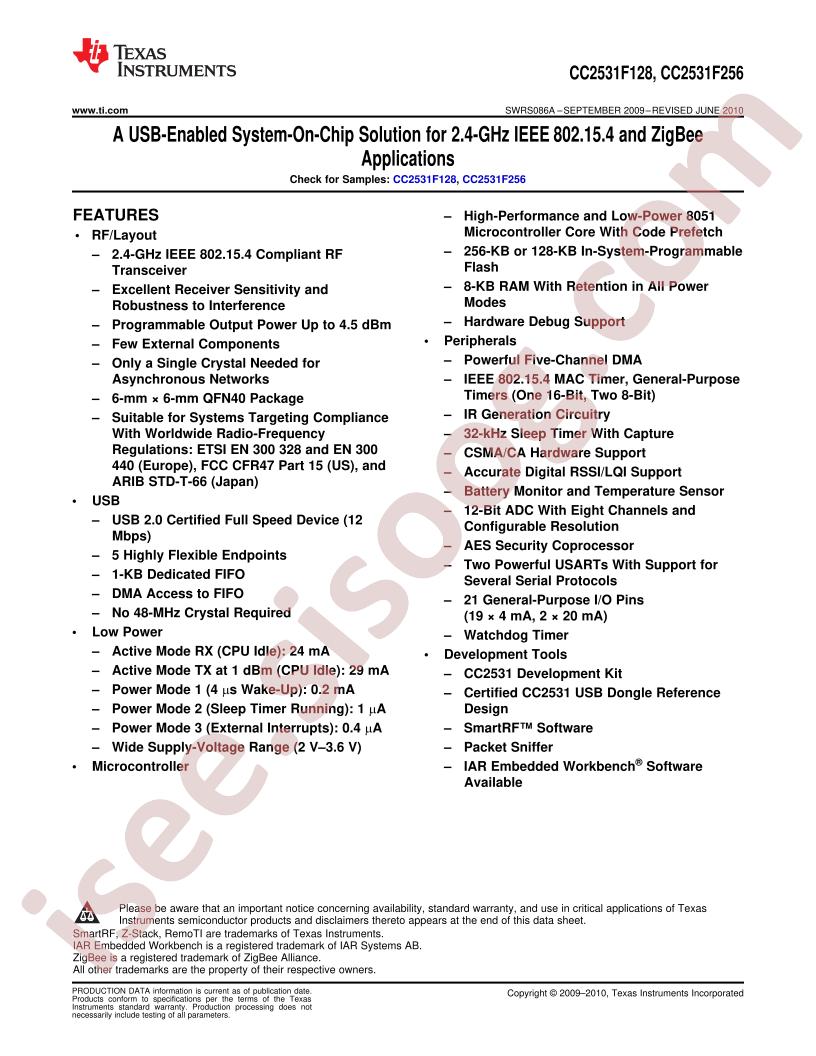

دیتاشیت CC2531F256RHAT
مشخصات دیتاشیت
| نام دیتاشیت |
CC2531
|
| حجم فایل |
1002.16
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
36
|
مشخصات
-
RoHS:
true
-
Category:
Radio Frequency Chip/Antenna/RF Transceiver ICs
-
Data Rate:
250Kbps
-
Datasheet:
Texas Instruments CC2531F256RHAT
-
Interface:
SPI,USART,USB
-
Applications:
802.15.4
-
Frequency Range:
2.4GHz
-
Receive Current:
20.5mA
-
Operating Voltage:
2V~3.6V
-
Operating Temperature:
-40°C~+125°C
-
Current Of Transmitting:
28.7mA
-
Package:
QFN-40-EP(6x6)
-
Manufacturer:
Texas Instruments
-
Current - Transmitting:
28.7mA ~ 33.5mA
-
Voltage - Supply:
2V ~ 3.6V
-
Data Rate (Max):
250kbps
-
Packaging:
Cut Tape (CT)
-
Type:
TxRx + MCU
-
Sensitivity:
-97dBm
-
GPIO:
21
-
Part Status:
Active
-
Protocol:
Zigbee®
-
Supplier Device Package:
40-VQFN (6x6)
-
Modulation:
-
-
RF Family/Standard:
802.15.4
-
Frequency:
2.4GHz
-
Serial Interfaces:
SPI, USART, USB
-
Current - Receiving:
20.5mA ~ 24.3mA
-
Package / Case:
40-VFQFN Exposed Pad
-
Power - Output:
4.5dBm
-
Mounting Type:
Surface Mount
-
Memory Size:
256kB Flash, 8kB RAM
-
Base Part Number:
CC2531
-
Series:
-
-
detail:
IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz 40-VFQFN Exposed Pad
