دیتاشیت SN74LS393NSR
مشخصات دیتاشیت
| نام دیتاشیت | SN54,74(LS)390,393 |
|---|---|
| حجم فایل | 1426.653 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |
دانلود دیتاشیت SN54,74(LS)390,393 |

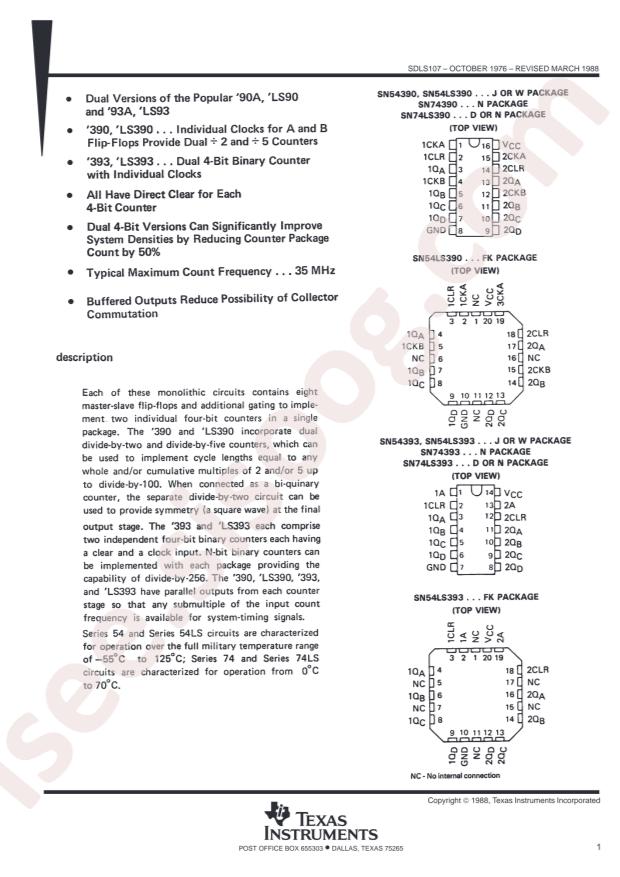

SN54,74(LS)390,393 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Counters / Dividers
- Datasheet: Texas Instruments SN74LS393NSR
- Direction: 向上计数器
- Count Rate: 35MHz
- Logic Type: Binary Counter
- Reset Style: Asynchronous
- Timing mode: -
- Trigger Type: Negative Edge
- Supply Voltage: 4.75V
- Number of Elements: 2
- Operating Temperature: 0°C~+70°C
- Number of Bits per Element: 4
- Package: SOP-14-208mil
- Manufacturer: Texas Instruments
- Base Part Number: SN74LS39
- Supplier Device Package: 14-PDIP
- Voltage - Supply: 4.75V ~ 5.25V
- Part Status: Active
- Reset: Asynchronous
- Mounting Type: Through Hole
- Packaging: Tube
- Timing: -
- Series: 74LS
- Package / Case: 14-DIP (0.300", 7.62mm)
- detail: Counter IC Binary Counter 2 Element 4 Bit Negative Edge 14-PDIP
