دیتاشیت UCC2806M
مشخصات دیتاشیت
| نام دیتاشیت | UCC1806/2806/3806 |
|---|---|
| حجم فایل | 2491.581 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 37 |

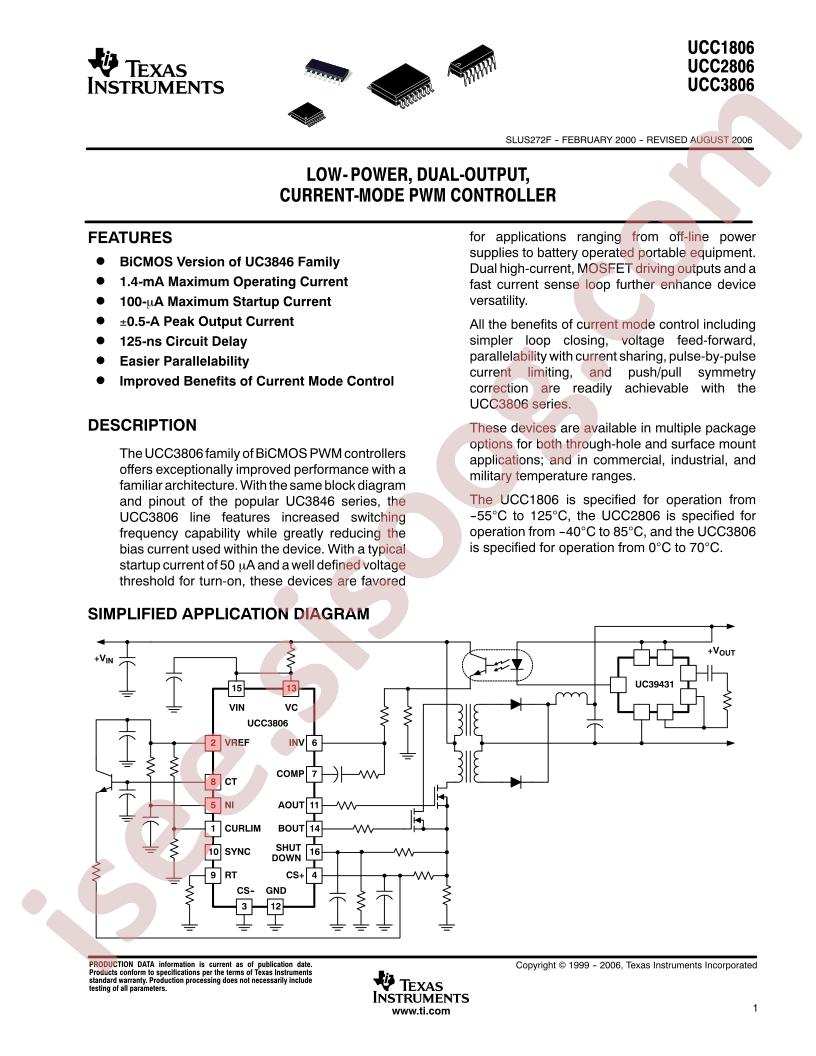

دانلود دیتاشیت UCC1806/2806/3806 |
UCC1806/2806/3806 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/AC-DC Controllers & Regulators
- Topology: Boost;Flyback;Forward
- Datasheet: Texas Instruments UCC2806M
- Duty Cycle: 50%
- Supply Voltage: 8V~14.5V
- Switching Frequency: 47kHz
- Operating Temperature: -40°C~+85°C@(TA)
- Package: SSOP-16-150mil-0.635mm
- Manufacturer: Texas Instruments
- Part Status: Active
- Package / Case: 16-SSOP (0.154", 3.90mm Width)
- Packaging: Tube
- Frequency - Switching: 47kHz
- Supplier Device Package: 16-SSOP
- Number of Outputs: 2
- Serial Interfaces: -
- Synchronous Rectifier: Yes
- Function: Step-Up, Step-Up/Step-Down
- Clock Sync: No
- Mounting Type: Surface Mount
- Output Configuration: Positive, Isolation Capable
- Base Part Number: UCC280
- Series: -
- Output Type: Transistor Driver
- Control Features: Current Limit, Enable, Frequency Control
- Output Phases: 1
- Duty Cycle (Max): 50%
- Voltage - Supply (Vcc/Vdd): 8V ~ 14.5V
- detail: Boost, Flyback, Forward Converter Regulator Positive, Isolation Capable Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 16-SSOP
