دیتاشیت SN74LVC14AQPWRQ1

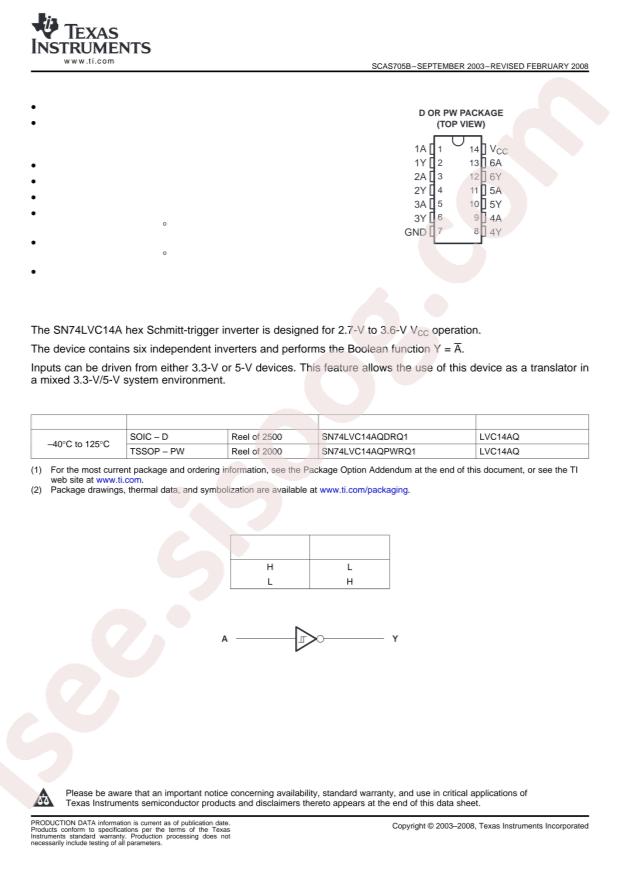

مشخصات دیتاشیت
| نام دیتاشیت |
SN74LVC14A-Q1
|
| حجم فایل |
842.861
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
13
|
مشخصات
-
RoHS:
true
-
Series:
74LVC
-
Category:
Logic ICs/Inverters
-
Datasheet:
Texas Instruments SN74LVC14AQPWRQ1
-
Input Type:
Schmitt Trigger
-
Sink Current:
24mA
-
Source Current:
24mA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Supply Current (Max):
10uA
-
Low level range (VIL):
0.4V~0.8V
-
Max Propagation Delay:
6.4ns@3.3V,50pF
-
Operating Temperature:
-40°C~+125°C
-
High level range (VIH):
2V
-
Supply Voltage(Single):
2V~3.6V
-
Package:
TSSOP-14
-
Manufacturer:
Texas Instruments
-
Logic Level - High:
2V
-
Base Part Number:
SN74LVC14
-
Supplier Device Package:
14-TSSOP
-
Logic Level - Low:
0.4V ~ 0.8V
-
Package / Case:
14-TSSOP (0.173", 4.40mm Width)
-
Current - Quiescent (Max):
10µA
-
Current - Output High, Low:
24mA, 24mA
-
Features:
Schmitt Trigger
-
Mounting Type:
Surface Mount
-
Packaging:
Tape & Reel (TR)
-
Voltage - Supply:
2V ~ 3.6V
-
Max Propagation Delay @ V, Max CL:
6.4ns @ 3.3V, 50pF
-
Part Status:
Active
-
Logic Type:
Inverter
-
detail:
Inverter IC 6 Channel Schmitt Trigger 14-TSSOP
