دیتاشیت SN74LV4052APWR

مشخصات دیتاشیت

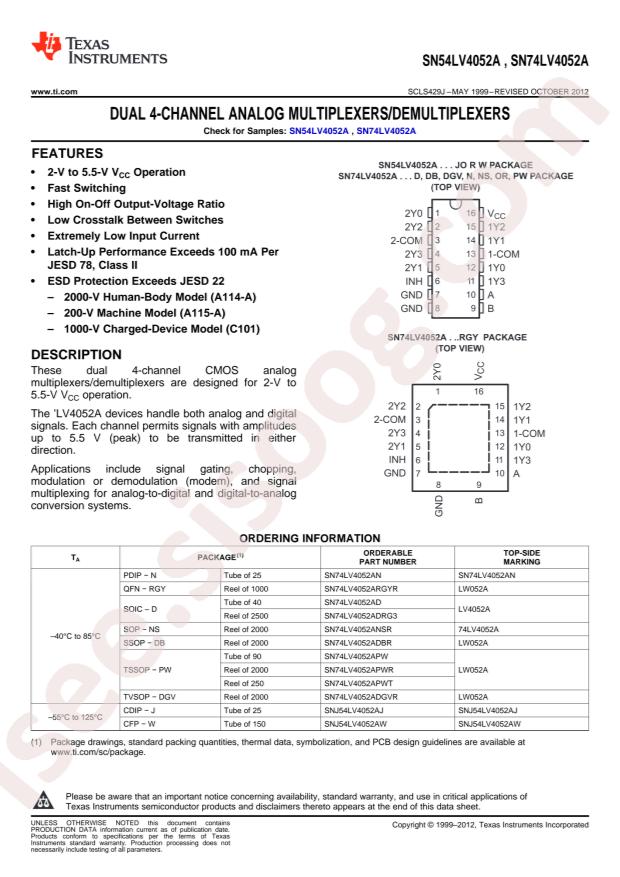

دانلود دیتاشیت SN54LV4052A, SN74LV4052A	SN54LV4052A, SN74LV4052A Datasheet

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers

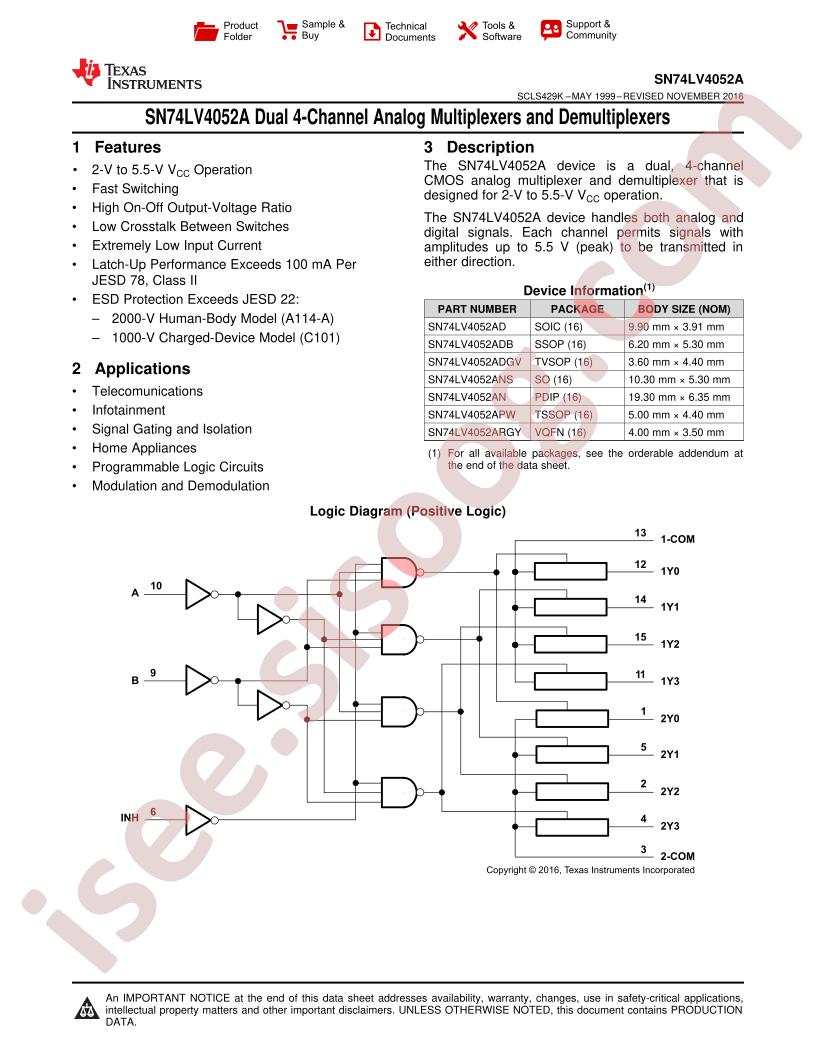

Datasheet: Texas Instruments SN74LV4052APWR
Turn-on time: 14ns
Turn-off time: 14ns
Supply Voltage: 2V~5.5V
Switch Circuit: 单刀四掷(SP4T)
Number of Channels: 2
On-State Resistance (Max): 75Ω
Package: TSSOP-16
Manufacturer: Texas Instruments
Voltage - Supply, Single (V+): 2V ~ 5.5V
Multiplexer/Demultiplexer Circuit: 4:1
Current - Leakage (IS(off)) (Max): 100nA
Crosstalk: -45dB @ 1MHz
Voltage - Supply, Dual (V±): -
Packaging: Cut Tape (CT)
Channel-to-Channel Matching (ΔRon): 700mOhm
Charge Injection: -
Supplier Device Package: 16-TSSOP
-3db Bandwidth: 50MHz
Base Part Number: SN74LV40
Mounting Type: Surface Mount
Channel Capacitance (CS(off), CD(off)): 0.5pF, 13.1pF
Switch Time (Ton, Toff) (Max): 14ns, 14ns
Operating Temperature: -40°C ~ 85°C (TA)
Number of Circuits: 2
Series: -
Package / Case: 16-TSSOP (0.173", 4.40mm Width)
Part Status: Active
