دیتاشیت SN74ABT574AN
مشخصات دیتاشیت
| نام دیتاشیت | SN54/74ABT574(A) |
|---|---|
| حجم فایل | 1556.179 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |

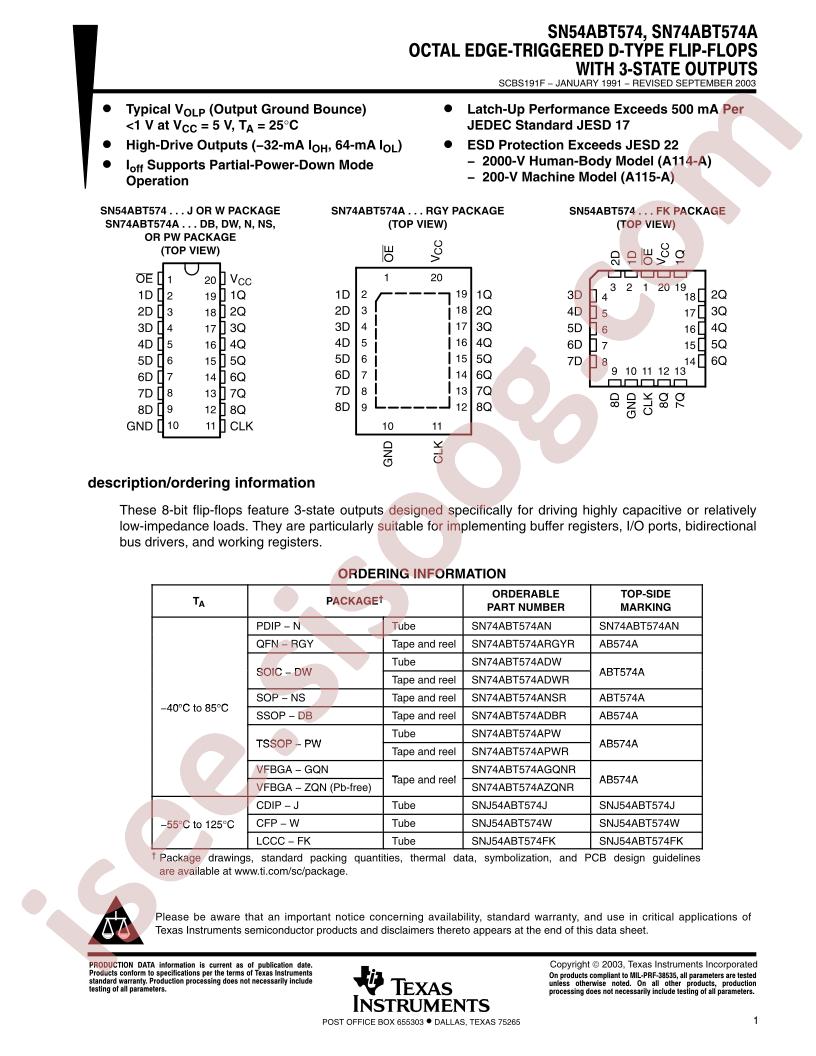

دانلود دیتاشیت SN54/74ABT574(A) |
SN54/74ABT574(A) Datasheet |
|---|
مشخصات
- RoHS: true
- Type: D-Type
- Series: 74ABT
- Category: Logic ICs/Flip Flops
- Datasheet: Texas Instruments SN74ABT574AN
- Output Type: Tri-State;Non-Inverted
- Sink Current: 64mA
- Trigger Type: 上升沿
- Source Current: 32mA
- Supply Voltage: 4.5V~5.5V
- Clock Frequency: 200MHz
- Input Capacitance: 3.5pF
- Number of Elements: 1
- Operating Temperature: -40°C~+85°C
- Quiescent Current (Iq): 250uA
- Maximum Propagation Delay: 6.6ns@5V,50pF
- Number of Bits per Element: 8
- Package: PDIP-20
- Manufacturer: Texas Instruments
- Function: Standard
- Supplier Device Package: 20-PDIP
- Current - Output High, Low: 32mA, 64mA
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Iq): 250µA
- Mounting Type: Through Hole
- Packaging: Tube
- Max Propagation Delay @ V, Max CL: 6.6ns @ 5V, 50pF
- Base Part Number: SN74ABT5
- Part Status: Active
- Package / Case: 20-DIP (0.300", 7.62mm)
- detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
