دیتاشیت LM337LMX
مشخصات دیتاشیت
| نام دیتاشیت | LM337L Datasheet |
|---|---|
| حجم فایل | 1623.039 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |

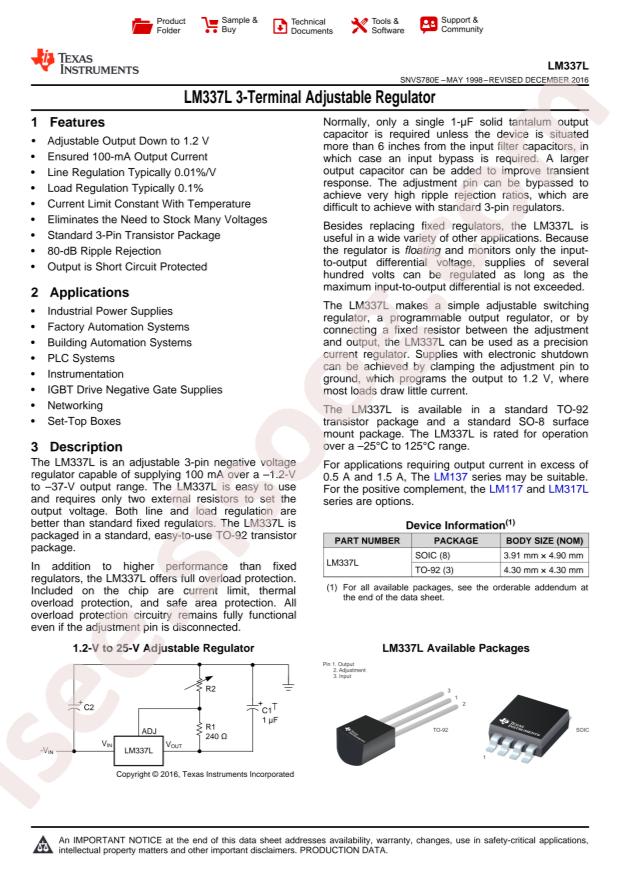

دانلود دیتاشیت LM337L Datasheet |
LM337L Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM337LMX
- Output Type: Adjustable
- Output Current: 100mA
- Output Voltage: 1.2V~37V
- Dropout Voltage: -
- Output Polarity: Negative
- Number of Outputs: 1
- Maximum Input Voltage: 40V
- Operating Temperature: -25°C~+125°C
- Power Supply Rejection Ratio (PSRR): 60dB@(120Hz)
- Package: SOP-8
- Manufacturer: Texas Instruments
- Base Part Number: LM337
- Supplier Device Package: 8-SOIC
- Voltage - Output (Max): -37V
- Output Configuration: Negative
- PSRR: 60dB (120Hz)
- Voltage Dropout (Max): -
- Number of Regulators: 1
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): -1.2V
- Protection Features: Over Temperature, Short Circuit
- Series: -
- Voltage - Input (Max): -40V
- Current - Output: 100mA
- Part Status: Not For New Designs
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Control Features: -
- detail: Linear Voltage Regulator IC 1 Output 100mA 8-SOIC
